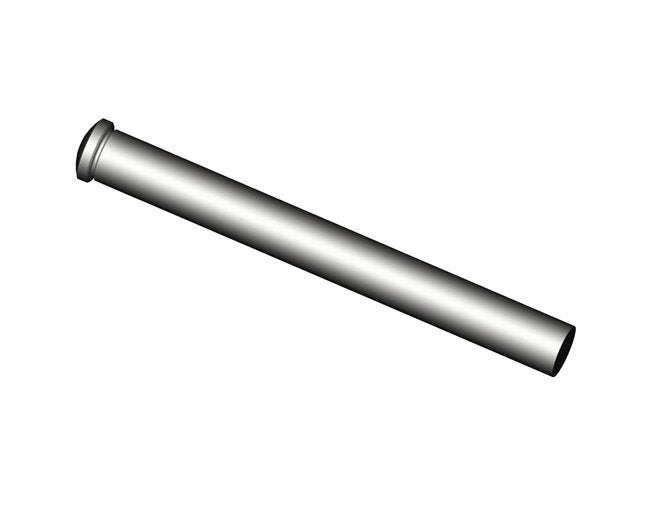

H-13 Steel Angle Pin with Radiused Heads
H-13 Steel Angle Pin with Radiused Heads
SKU:ANG-8ddd61
Enhance precision and efficiency with our H-13 Steel Angle Pin. Radiused heads eliminate grinding, ensuring exact angles effortlessly.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
H-13 Steel Angle Pin with Radiused Heads
$29.99
Quantity: 1
Claim Your Seller Account
H-13 Steel Angle Pin with Radiused Heads
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience unparalleled precision with our H-13 Steel Angle Pin featuring radiused heads, eliminating the need for angle grinding. Crafted from high-grade H-13 steel with a surface hardness of 65-64 Rc and core hardness of 35-40 Rc. Ground, nitrided, and polished for optimal performance. Cut to custom lengths for precise slide travel. Ideal for industrial applications requiring exact angles and reliable performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features 0
Manufactured from H-13 steelSurface hardness 65-64 RcCore hardness 35-40 RcGround, nitrided and polished
Installation Notes 0

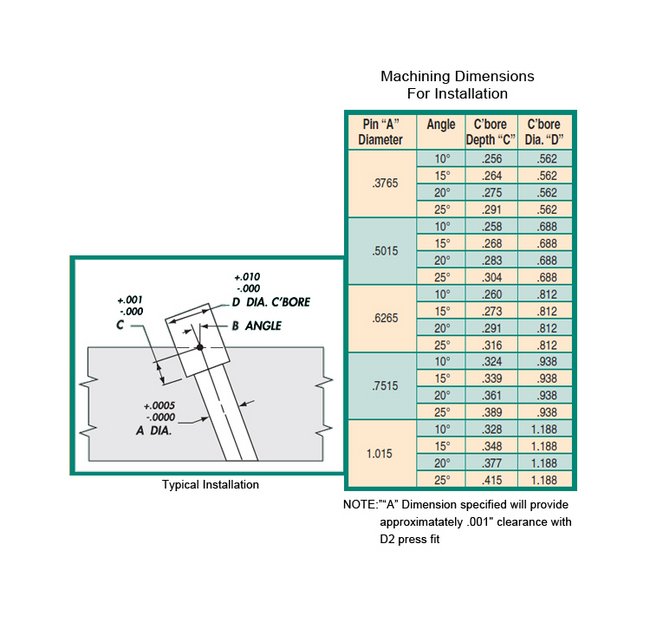

Cut angle pin to length as required to obtain required travel on the slide. The angle pin works on angle in clearance hole in slide to push the slide & create travel.
Specifications Core Hardness
35-40 Rockwell C

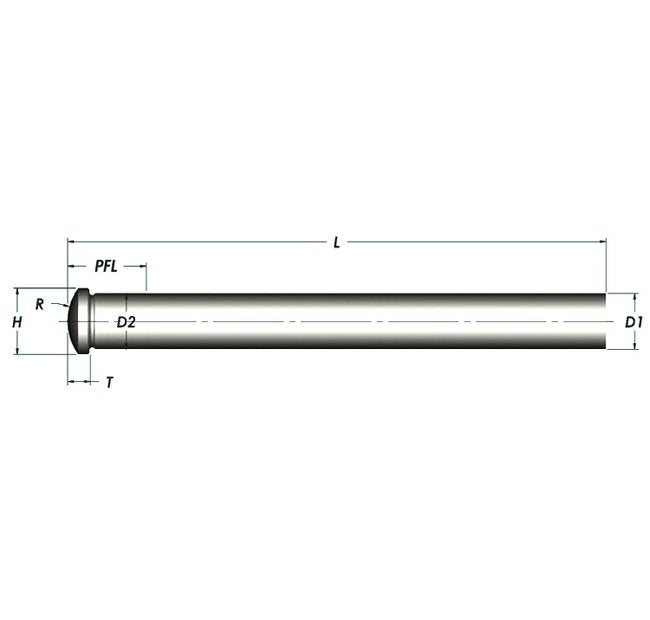

Specifications Diameter 00000 00005
0.7490 in
Specifications Dimension D2 00000 00005
0.7515 in
Specifications Dimension H 0000 0010
0.875 in
Specifications Dimension L 050 000
10 in
Specifications Dimension Pfl 000 006
1-3/8 in
Specifications Dimension R Sph Rad
0.750 in
Specifications Dimension T 0000 0005
0.312 in
Specifications Manufacturer
DMS
Specifications Material
H-13 Steel
Specifications Surface Hardness
65-64 Rockwell C
