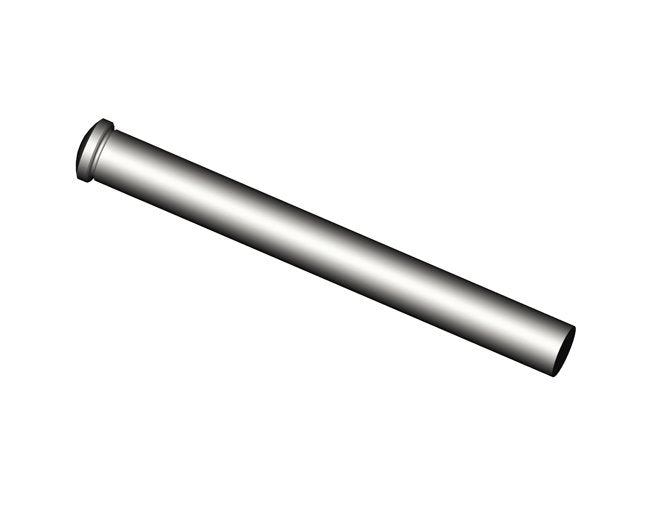

H-13 Steel Angle Pin with Radiused Heads
H-13 Steel Angle Pin with Radiused Heads
SKU:ANG-110f7d
Efficiently install angles with the H-13 Steel Angle Pin featuring radiused heads for precision and durability.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
H-13 Steel Angle Pin with Radiused Heads
$24.99
Quantity: 1
Claim Your Seller Account
H-13 Steel Angle Pin with Radiused Heads
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

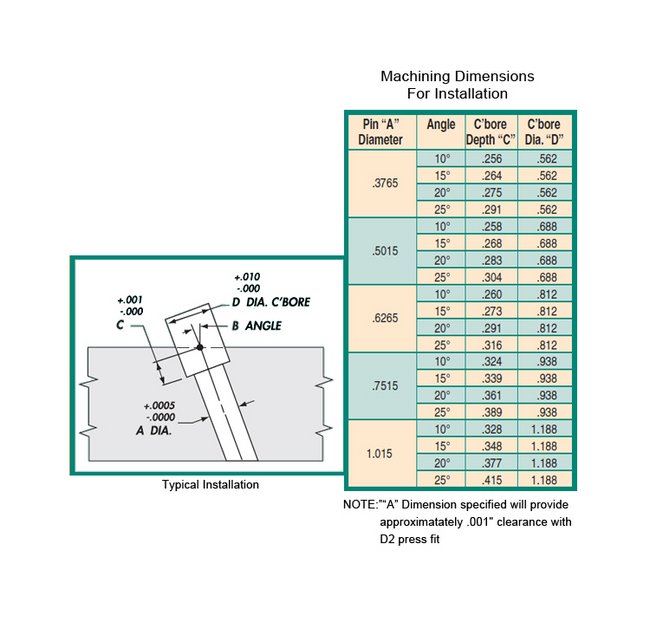

The H-13 Steel Angle Pin with Radiused Heads is a premium solution designed to streamline installation processes with precision and efficiency. Manufactured from high-quality H-13 steel with a surface hardness of 65-64 Rc and a core hardness of 35-40 Rc, these angle pins are ground, nitrided, and polished for exceptional durability and performance. Eliminate the need for angle grinding with the pre-machined spherical radius head, saving time and ensuring a perfect fit. For accurate installation on specific angles, refer to the provided chart to determine the ideal counterbore depth. Cut to length as needed and experience seamless operations with this reliable and robust angle pin.
Product Specifications
Features 0
Manufactured from H-13 steelSurface hardness 65-64 RcCore hardness 35-40 RcGround, nitrided and polished
Installation Notes 0
Cut angle pin to length as required to obtain required travel on the slide. The angle pin works on angle in clearance hole in slide to push the slide & create travel.

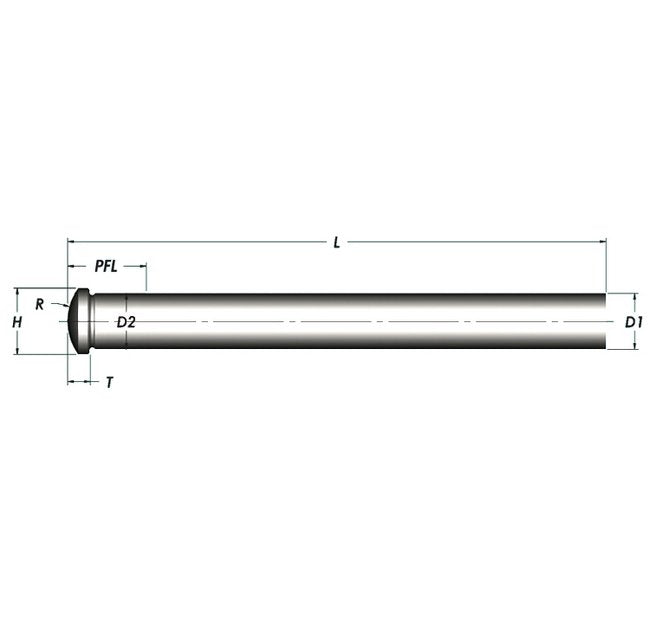

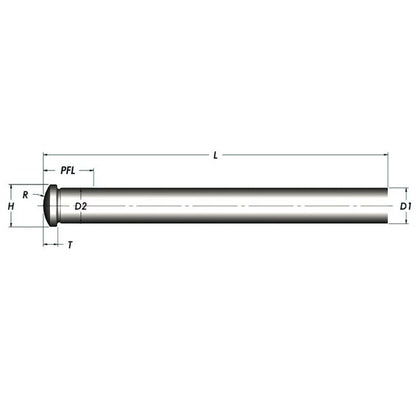

Specifications Core Hardness
35-40 Rockwell C
Specifications Diameter 00000 00005
0.6240 in
Specifications Dimension D2 00000 00005
0.6265 in
Specifications Dimension H 0000 0010
0.750 in
Specifications Dimension L 050 000
10 in
Specifications Dimension Pfl 000 006
1-3/8 in
Specifications Dimension R Sph Rad
0.625 in
Specifications Dimension T 0000 0005
0.250 in
Specifications Manufacturer
DMS
Specifications Material
H-13 Steel
Specifications Surface Hardness
65-64 Rockwell C
