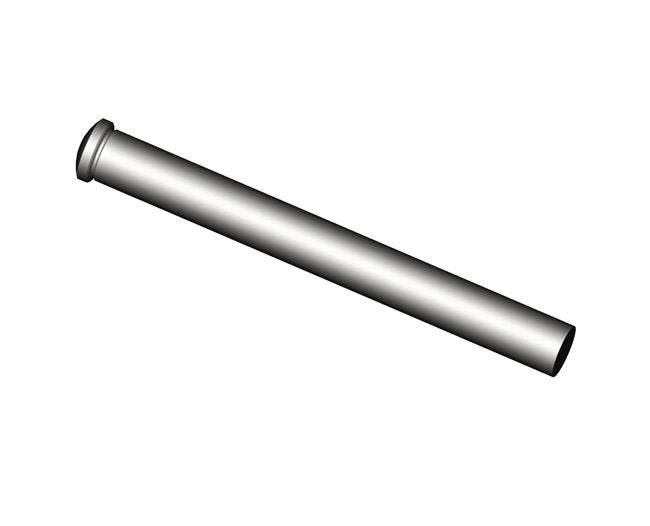

H-13 Steel Angle Pin with Radiused Heads - Industrial Grade
H-13 Steel Angle Pin with Radiused Heads - Industrial Grade
SKU:ANG-494754
Upgrade your industrial operations with the H-13 Steel Angle Pin with Radiused Heads. Exceptional quality for precise mechanical operations.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
H-13 Steel Angle Pin with Radiused Heads - Industrial Grade
$29.99
Quantity: 1
Claim Your Seller Account
H-13 Steel Angle Pin with Radiused Heads - Industrial Grade
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your industrial operations with our H-13 Steel Angle Pin with Radiused Heads. Precisely manufactured, these pins feature a spherical radius pre-machined head, eliminating the need for time-consuming angle grinding. Made from premium H-13 steel, they boast exceptional surface hardness of 65-64 Rc and core hardness of 35-40 Rc. Ground, nitrided, and polished for durability, these pins ensure smooth operation and longevity. Cut to custom lengths for precise slide travel, these pins are engineered to push slides effectively, enhancing your assembly processes. Trust in DMS quality for reliable performance in your industrial applications.
Product Specifications
Features 0
Manufactured from H-13 steelSurface hardness 65-64 RcCore hardness 35-40 RcGround, nitrided and polished
Installation Notes 0

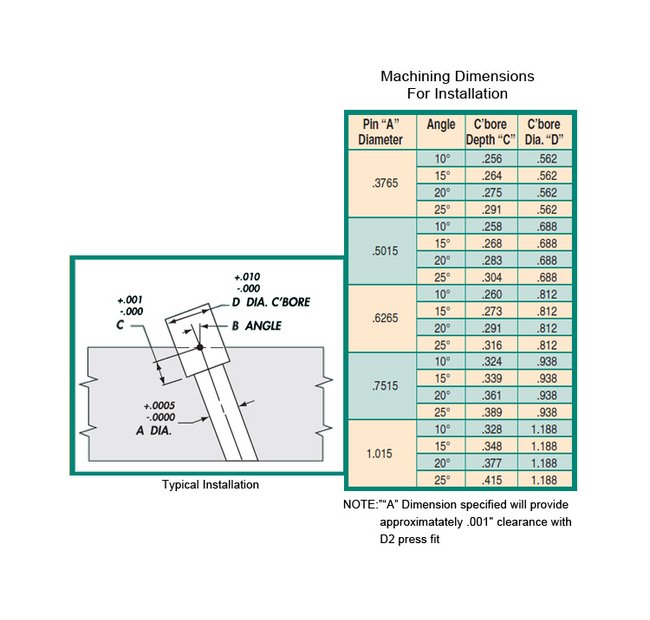

Cut angle pin to length as required to obtain required travel on the slide. The angle pin works on angle in clearance hole in slide to push the slide & create travel.
Specifications Core Hardness
35-40 Rockwell C

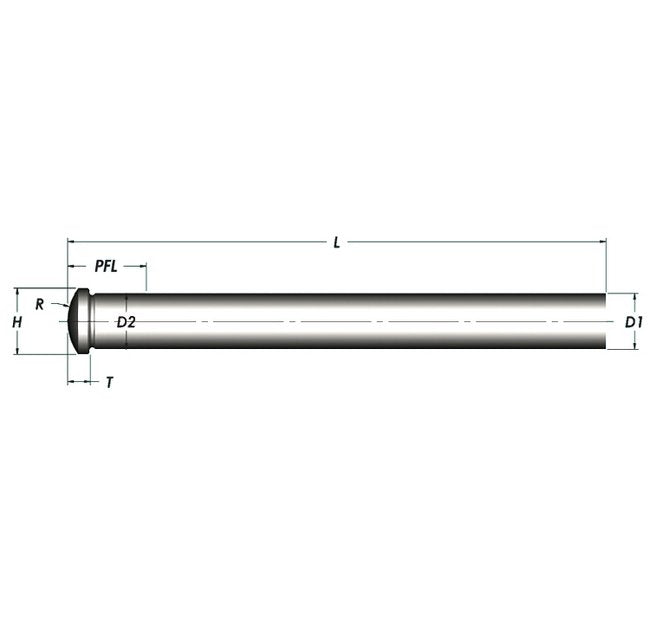

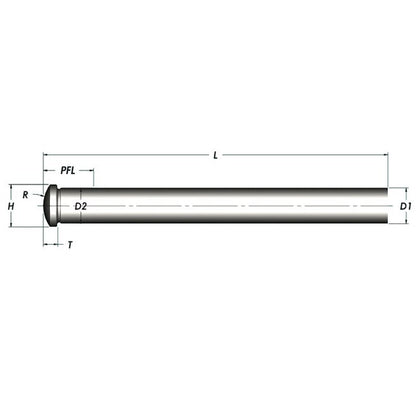

Specifications Diameter 00000 00005
0.9990 in
Specifications Dimension D2 00000 00005
1.0015 in
Specifications Dimension H 0000 0010
1.125 in
Specifications Dimension L 050 000
14 in
Specifications Dimension Pfl 000 006
1-3/8 in
Specifications Dimension R Sph Rad
1.00 in
Specifications Dimension T 0000 0005
0.312 in
Specifications Manufacturer
DMS
Specifications Material
H-13 Steel
Specifications Surface Hardness
65-64 Rockwell C
