H-FAB 90-Ton Workshop Hydraulic Press
H-FAB 90-Ton Workshop Hydraulic Press
SKU:HFA-932d80
Powerful and precise 90-ton hydraulic press with customizable specifications and premium components for industrial applications.
Regular price
$8,900.00
Regular price
Sale price
$8,900.00
Unit price
per
Initiate Order
H-FAB 90-Ton Workshop Hydraulic Press
$8,900.00
Quantity: 1
Claim Your Seller Account
H-FAB 90-Ton Workshop Hydraulic Press
$8,900.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

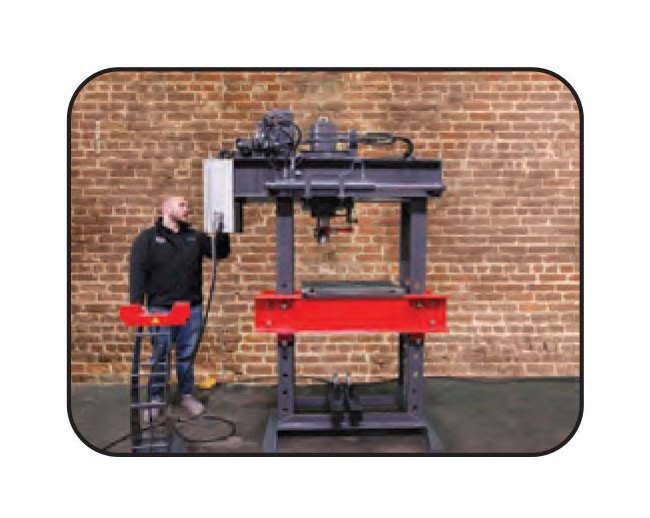

The H-FAB H Series 90-Ton Workshop Type Hydraulic Press offers unparalleled precision and power for industrial applications. With a capacity of 90 US tons and customizable specifications such as stroke, clear front and side heights, and motor power, this hydraulic press is designed to meet the diverse needs of workshops and manufacturing facilities. It features a robust steel welded frame, chrome-plated cylinder, and 2-speed hydraulics for efficient operation. The inclusion of premium components from reputable brands like Rexroth and Siemens ensures durability and performance. For institutions seeking reliable hydraulic equipment, the H-FAB 90-Ton Workshop Hydraulic Press is a top choice.
Product Specifications

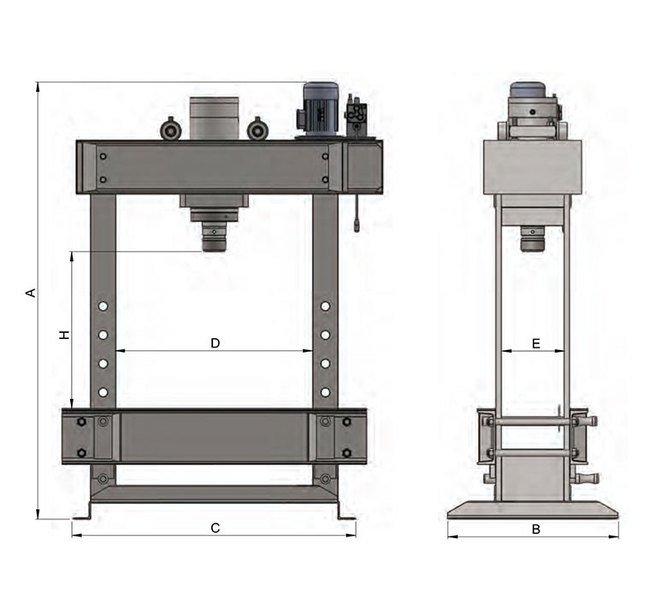

Dimensions Height A
95 in
Dimensions Width
61 in
Note
We do not source any component of our presses from China.
Optional Features
Pressure adjustmentPalm buttons, automatic functionsHydraulic movable cylinder motion by an additional hydraulic cylinderDie setsStroke, open height and widthsIncluded pressRolling bolstersPlatens
Specifications Capacity
90 US t
Specifications Clear Front D
36 in
Specifications Clear Side E
12 in
Specifications Daylight H
35.4 in
Specifications Down Speed
13 in/min
Specifications Foot Length B
35 in
Specifications Foot Width C
52 in

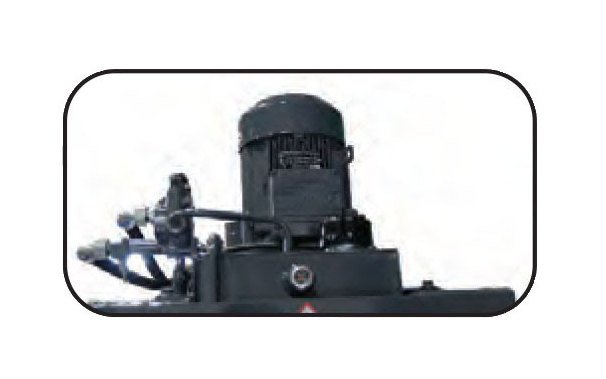

Specifications Motor Power
4 hp
Specifications Phase
3
Specifications Return Speed
20 in/min
Specifications Stroke
16 in
Specifications Type
Hydraulic
Specifications Weight
1,598 lb
Standard Features

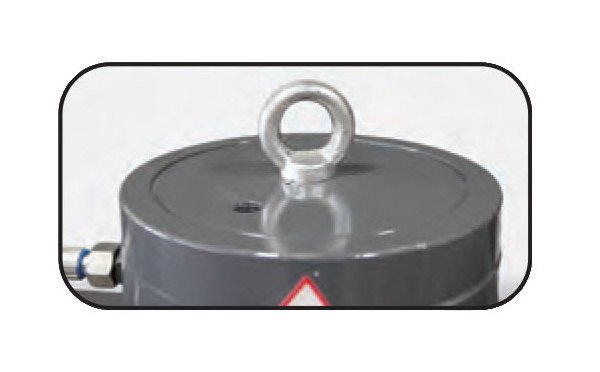

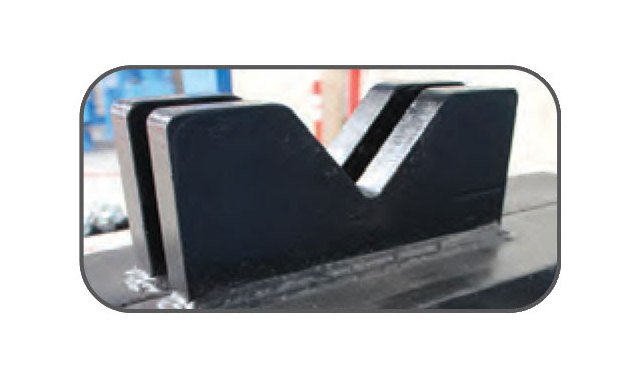

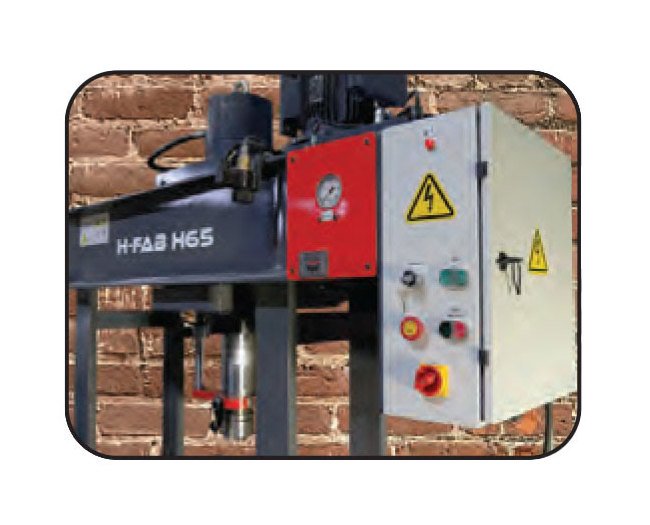

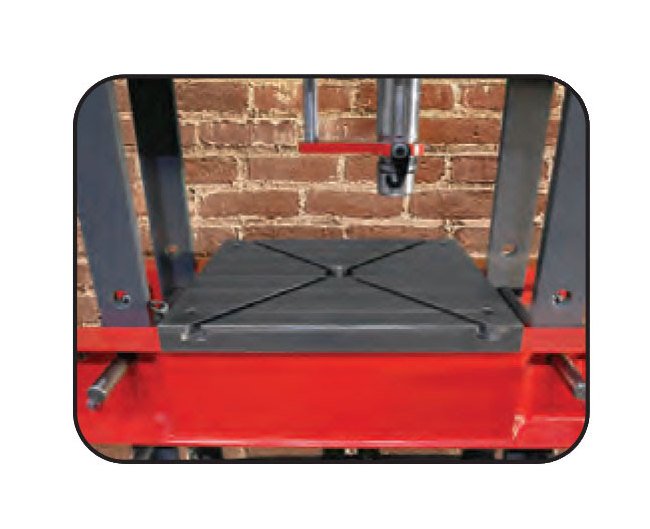

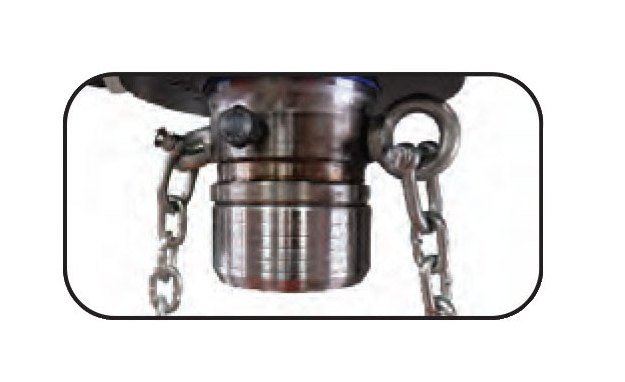

Chrome plated cylinderSteel welded frameOil pressure gaugePressure adjustment2 speed hydraulicsLarge ram strokeMovable cylinder (left to right)V-block with working plateCommon off the shelf components, typically of German or USA origin (Rexroth, Parker, Schneiders, and Siemens)
