H-FAB H Series 200 Tons Workshop Hydraulic Press
H-FAB H Series 200 Tons Workshop Hydraulic Press
SKU:HFA-5c7c2f
Powerful 200-ton hydraulic press for precise industrial applications, featuring durable construction and versatile options for workshop needs.
Regular price
$16,500.00
Regular price
Sale price
$16,500.00
Unit price
per
Initiate Order
H-FAB H Series 200 Tons Workshop Hydraulic Press
$16,500.00
Quantity: 1
Claim Your Seller Account
H-FAB H Series 200 Tons Workshop Hydraulic Press
$16,500.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

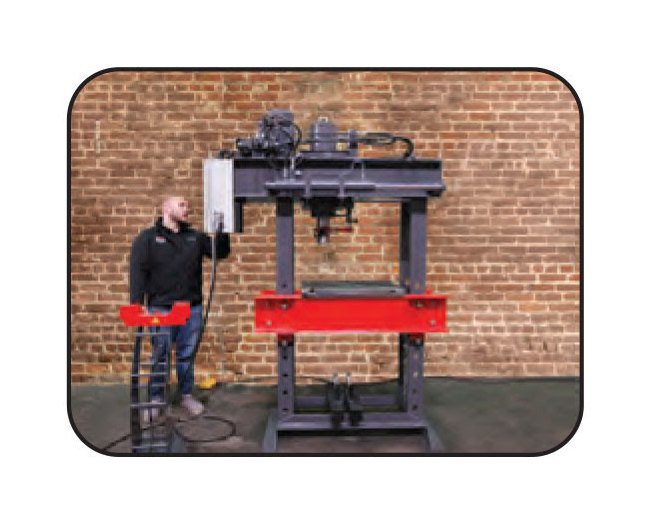

The H-FAB H Series 200 Tons Workshop Hydraulic Press by RMT offers precision and power for a variety of industrial applications. Featuring a hydraulic system with a 200 US ton capacity, 16-inch stroke, and 35.4-inch daylight, this press ensures efficient operation and consistent results. Its steel welded frame, chrome-plated cylinder, and two-speed hydraulics ensure durability and smooth performance. With optional features like palm buttons, die sets, and rolling bolsters, this press provides versatility to meet diverse workshop needs. Designed with high-quality components of German or USA origin, this press guarantees reliability and longevity for your workshop operations.
Product Specifications

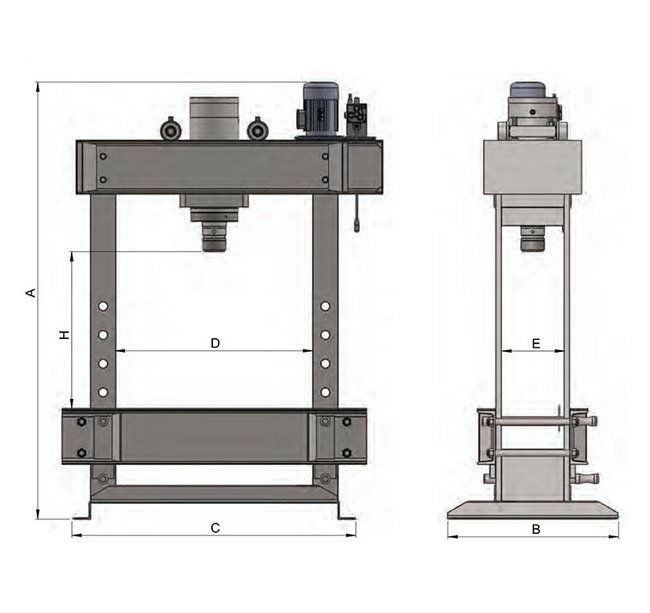

Dimensions Height A
112 in
Dimensions Width
88 in
Note
We do not source any component of our presses from China.
Optional Features

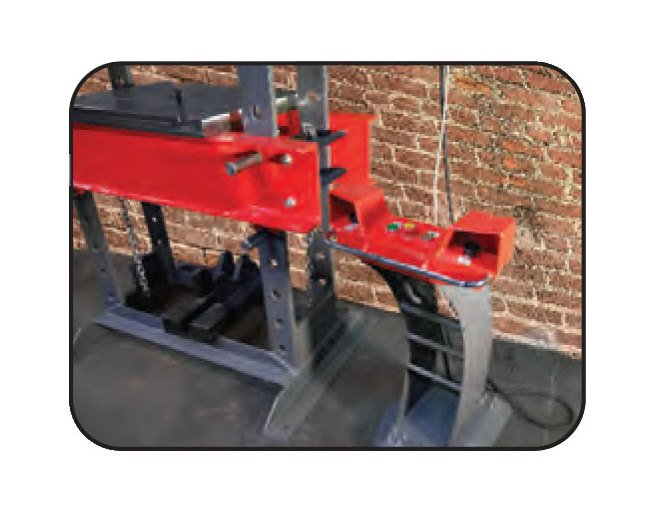

Pressure adjustmentPalm buttons, automatic functionsHydraulic movable cylinder motion by an additional hydraulic cylinderDie setsStroke, open height and widthsIncluded pressRolling bolstersPlatens
Specifications Capacity
200 US t
Specifications Clear Front D
61 in
Specifications Clear Side E
22 in
Specifications Daylight H
35.4 in
Specifications Down Speed
20 in/min
Specifications Foot Length B
47 in
Specifications Foot Width C
77 in

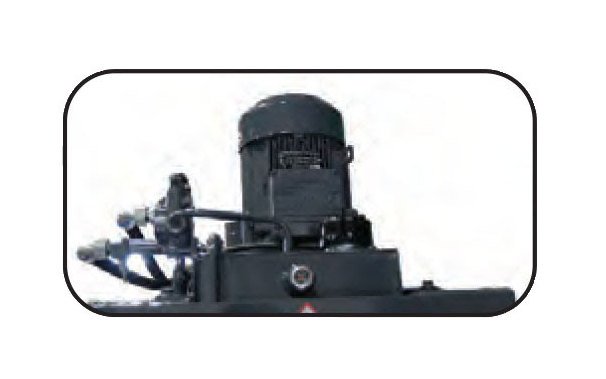

Specifications Motor Power
10 hp
Specifications Phase
3
Specifications Return Speed
32 in/min
Specifications Stroke
16 in
Specifications Type
Hydraulic
Specifications Weight
4,630 lb
Standard Features

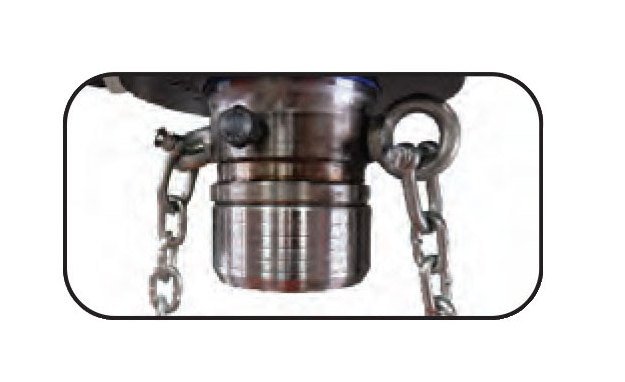

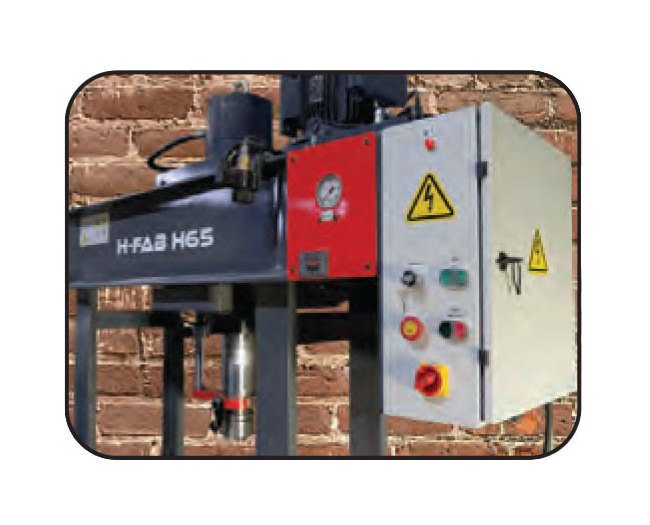

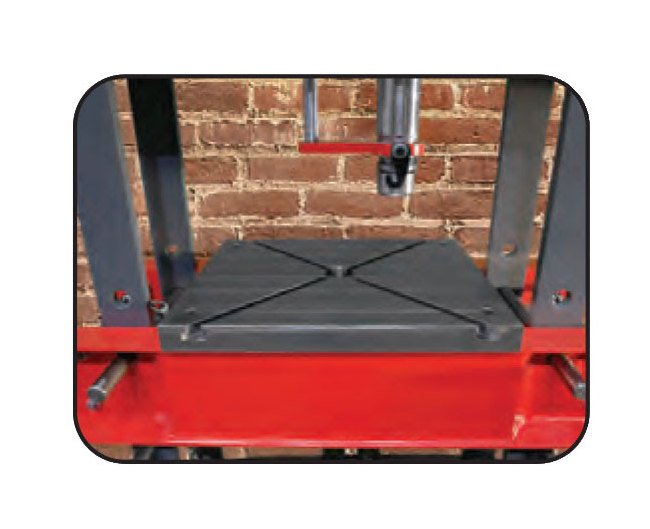

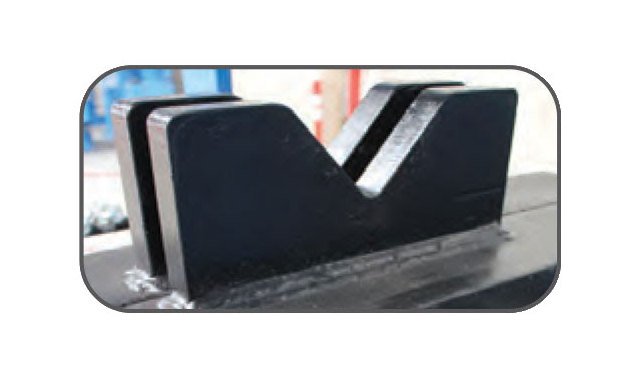

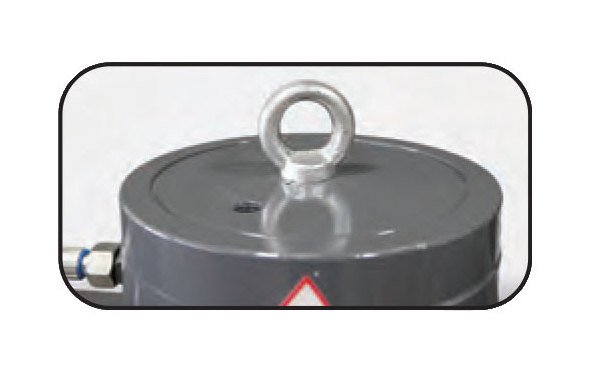

Chrome plated cylinderSteel welded frameOil pressure gaugePressure adjustment2 speed hydraulicsLarge ram strokeMovable cylinder (left to right)V-block with working plateCommon off the shelf components, typically of German or USA origin (Rexroth, Parker, Schneiders, and Siemens)
