H-FAB H Series 275 Ton Workshop Hydraulic Press
H-FAB H Series 275 Ton Workshop Hydraulic Press
SKU:HFA-5504d1
Empower your workshop with the reliable H-FAB H Series 275T Hydraulic Press by RMT. Customizable features, top-notch performance.
Regular price
$18,999.99
Regular price
Sale price
$18,999.99
Unit price
per
Initiate Order
H-FAB H Series 275 Ton Workshop Hydraulic Press
$18,999.99
Quantity: 1
Claim Your Seller Account
H-FAB H Series 275 Ton Workshop Hydraulic Press
$18,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The H-FAB H Series 275 Ton Workshop Hydraulic Press by RMT delivers exceptional precision and power for your pressing needs. With a capacity of 275 US tons and a sturdy steel welded frame, this hydraulic press offers reliability and efficiency. Equipped with features like a chrome plated cylinder, oil pressure gauge, and common off-the-shelf components from reputable brands, including Rexroth and Parker, this press ensures top-notch performance. Its customizable options, such as adjustable pressure, palm buttons, and rolling bolsters, cater to diverse operational requirements. Whether for industrial or institutional applications, this hydraulic press stands out for its quality craftsmanship and versatility.
Product Specifications

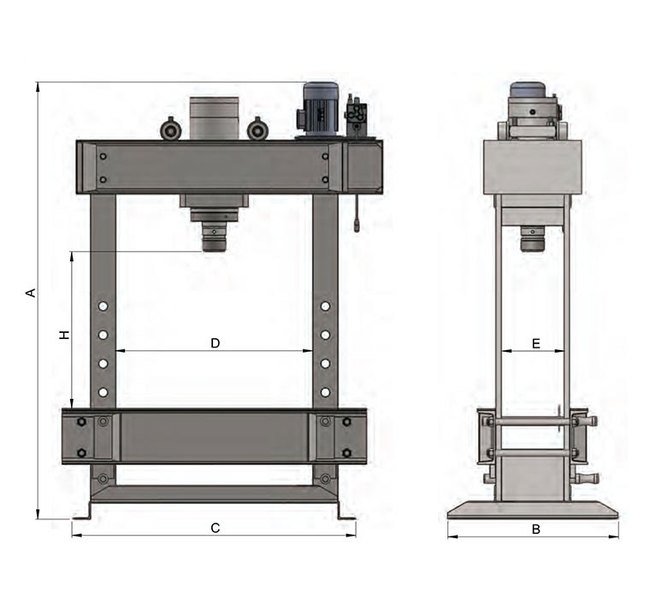

Dimensions Height A
104 in
Dimensions Width
97 in
Note
We do not source any component of our presses from China.
Optional Features
Pressure adjustmentPalm buttons, automatic functionsHydraulic movable cylinder motion by an additional hydraulic cylinderDie setsStroke, open height and widthsIncluded pressRolling bolstersPlatens
Specifications Capacity
275 US t
Specifications Clear Front D
51 in
Specifications Clear Side E
18 in
Specifications Daylight H
35.4 in
Specifications Down Speed
21 in/min
Specifications Foot Length B
47 in
Specifications Foot Width C
86 in
Specifications Motor Power
20 hp
Specifications Phase
3
Specifications Return Speed
31 in/min
Specifications Stroke
16 in
Specifications Type
Hydraulic
Specifications Weight
6,834 lb
Standard Features

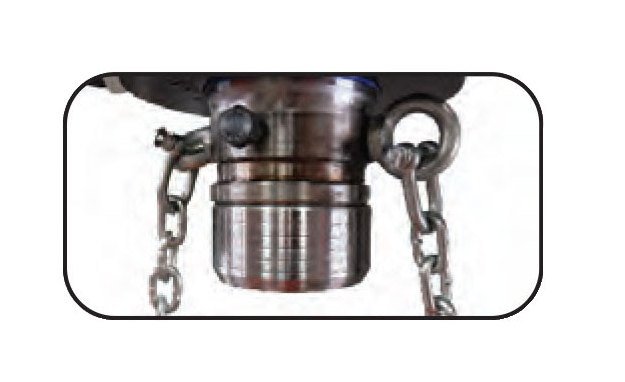

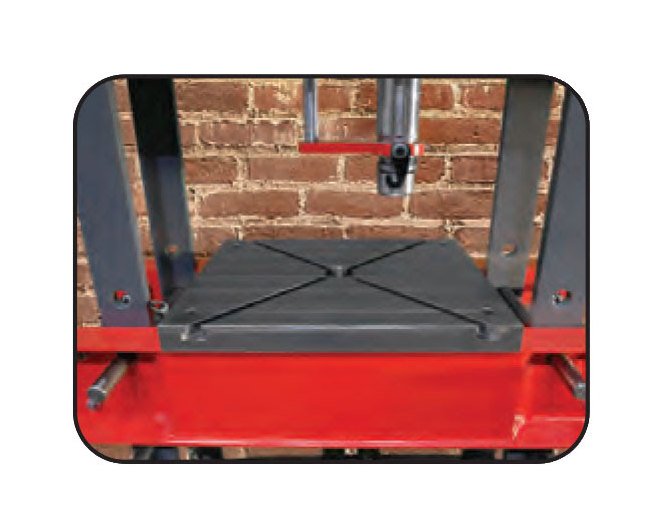

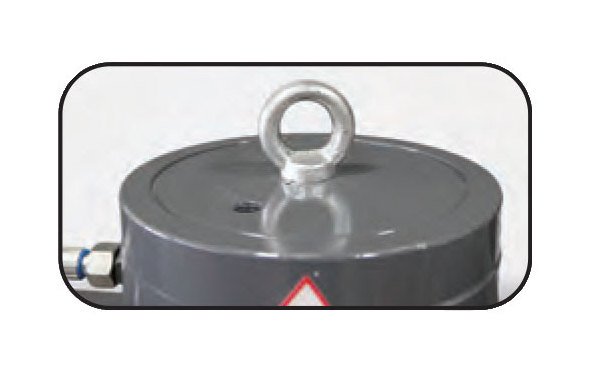

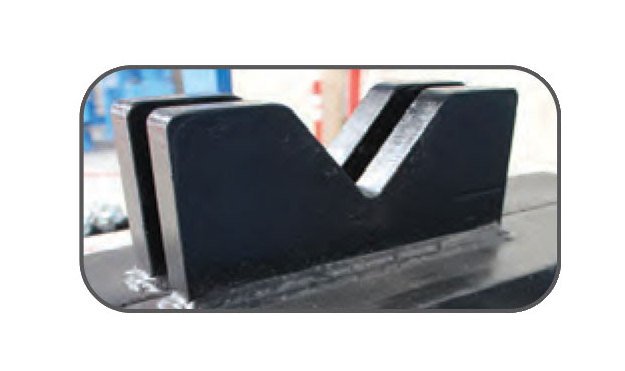

Chrome plated cylinderSteel welded frameOil pressure gaugePressure adjustment2 speed hydraulicsLarge ram strokeMovable cylinder (left to right)V-block with working plateCommon off the shelf components, typically of German or USA origin (Rexroth, Parker, Schneiders, and Siemens)
