H-FAB HBP 220 Tons Workshop Hydraulic Press
H-FAB HBP 220 Tons Workshop Hydraulic Press
SKU:HFA-ed1eb1
Get precision and power with the H-FAB 220 Ton Workshop Hydraulic Press. Ideal for industrial applications.
Regular price
$17,699.99
Regular price
Sale price
$17,699.99
Unit price
per
Initiate Order
H-FAB HBP 220 Tons Workshop Hydraulic Press
$17,699.99
Quantity: 1
Claim Your Seller Account
H-FAB HBP 220 Tons Workshop Hydraulic Press
$17,699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

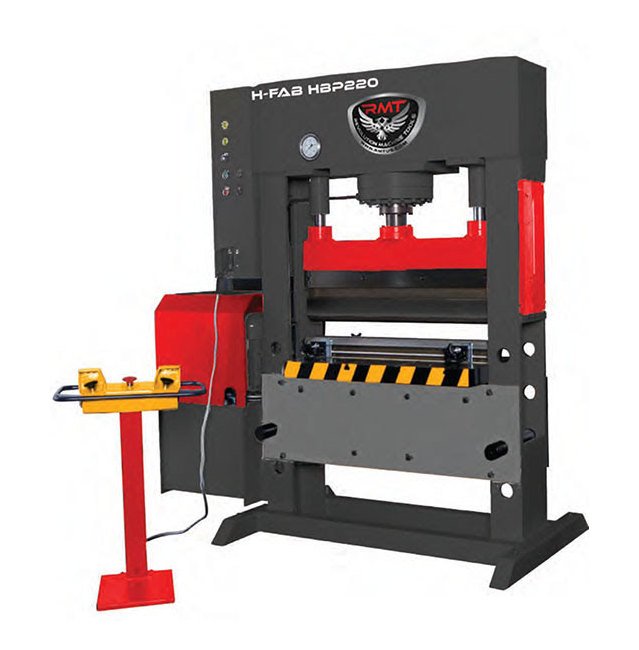

The H-FAB HBP Series 220-Ton Workshop Type Hydraulic Press is a robust solution for industrial applications. With a bending length of 79 inches, stroke of 16 inches, and a sturdy steel welded frame, this press ensures precision and durability. Equipped with standard features like a chrome plated cylinder, oil pressure gauge, and manual back gauge, it offers reliable performance. Optional features include NC control and variable speeds for enhanced operational flexibility. Proudly made with components of German or USA origin, ensuring quality craftsmanship and reliability. Ideal for metalworking, fabrication, and manufacturing environments.
Product Specifications
Dimensions Height
108 in
Dimensions Length
114 in
Dimensions Width
51 in
Note
We do not source any component of our presses from China.
Optional Features
NC controlVariable speedsFoot pedal control
Specifications Bending Length
79 in
Specifications Capacity
220 US t
Specifications Daylight
21 in
Specifications Down Speed
24 in/min
Specifications Motor Power
7 hp
Specifications Pump
8 gal
Specifications Return Speed
43 in/min
Specifications Stroke
16 in
Specifications Type
Hydraulic
Specifications Weight
8,819 lb
Specifications Working Speed
15 in/min
Standard Features

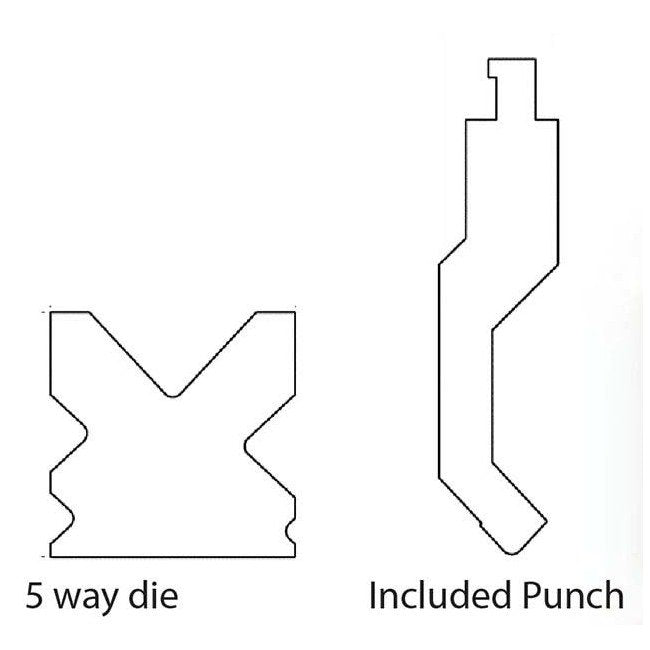

Chrome plated cylinderSteel welded frameOil pressure gaugePressure adjustmentToolManual back gaugePress brake toolingCommon off the shelf components, typically of German or USA origin (Rexroth, Parker, Schneiders, and Siemens)
