H-FAB Workshop Hydraulic Press 65 Ton Capacity
H-FAB Workshop Hydraulic Press 65 Ton Capacity
SKU:HFA-67ad4c
High-performance H-FAB H Series Workshop Hydraulic Press, customizable for varied industrial requirements. Premium quality components and precise control.
Regular price
$7,899.99
Regular price
Sale price
$7,899.99
Unit price
per
Initiate Order
H-FAB Workshop Hydraulic Press 65 Ton Capacity
$7,899.99
Quantity: 1
Claim Your Seller Account
H-FAB Workshop Hydraulic Press 65 Ton Capacity
$7,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

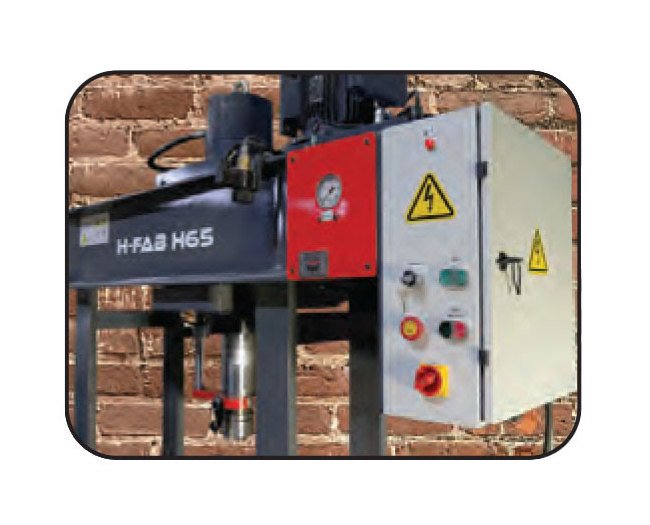

The H-FAB H Series 65 Tons Capacity Workshop Type Hydraulic Press is a versatile machine perfect for industrial applications. With customizable options such as different daylight, closed height, stroke, and tonnage up to 330 tons, this press meets diverse manufacturing needs. It features a sturdy steel welded frame, chrome-plated cylinder, oil pressure gauge, and pressure adjustment for precise control. Equipped with two-speed hydraulics, a large ram stroke, and V-block with a working plate, this hydraulic press ensures efficient and accurate operations. Proudly sourcing components from renowned brands like Rexroth, Parker, and Siemens, it upholds quality and reliability standards demanded by institutional buyers.
Product Specifications

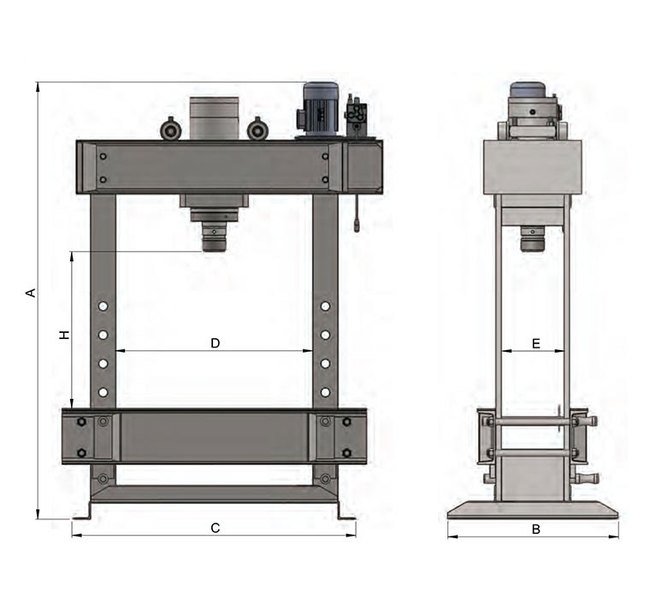

Dimensions Height A
95 in
Dimensions Width
58 in
Note
We do not source any component of our presses from China.
Optional Features
Pressure adjustmentPalm buttons, automatic functionsHydraulic movable cylinder motion by an additional hydraulic cylinderDie setsStroke, open height and widthsIncluded pressRolling bolstersPlatens
Specifications Capacity
65 US t
Specifications Clear Front D
32 in
Specifications Clear Side E
12 in
Specifications Daylight H
35.4 in
Specifications Down Speed
15 in/min
Specifications Foot Length B
34 in
Specifications Foot Width C
47 in

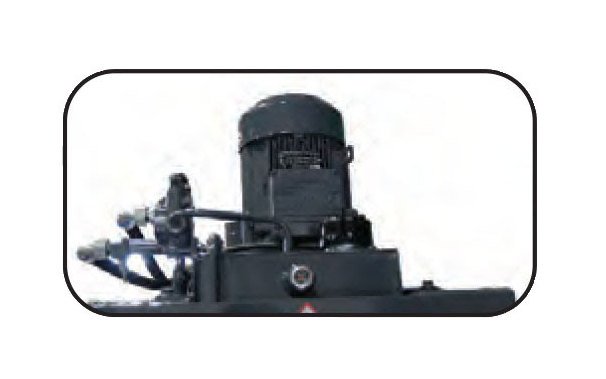

Specifications Motor Power
4 hp
Specifications Phase
1
Specifications Return Speed
24 in/min
Specifications Stroke
16 in
Specifications Type
Hydraulic
Specifications Weight
1,543 lb
Standard Features

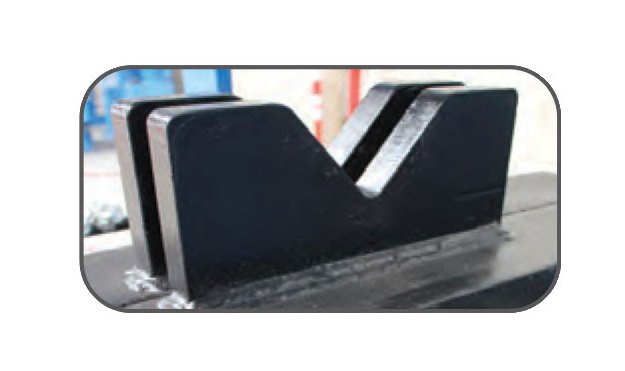

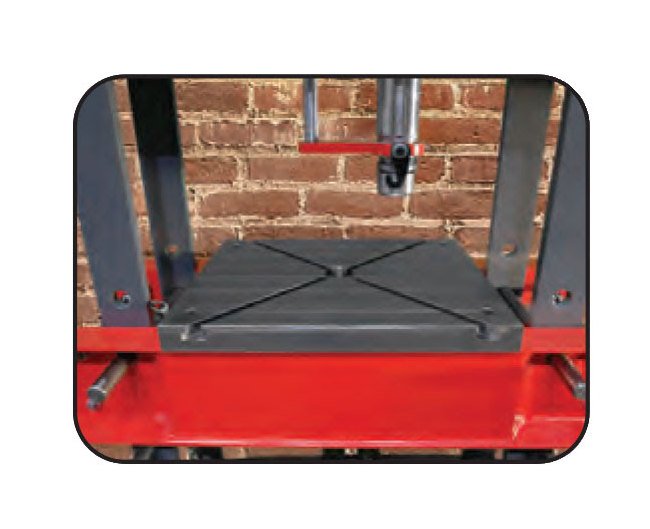

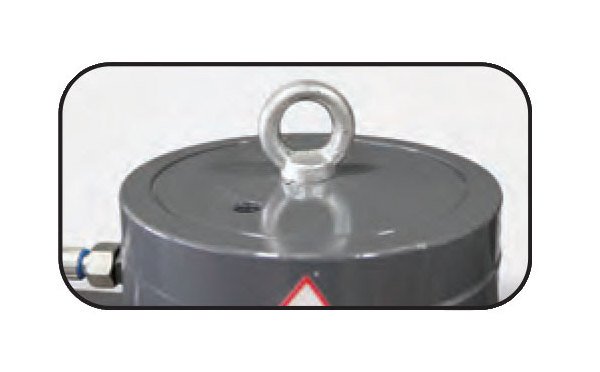

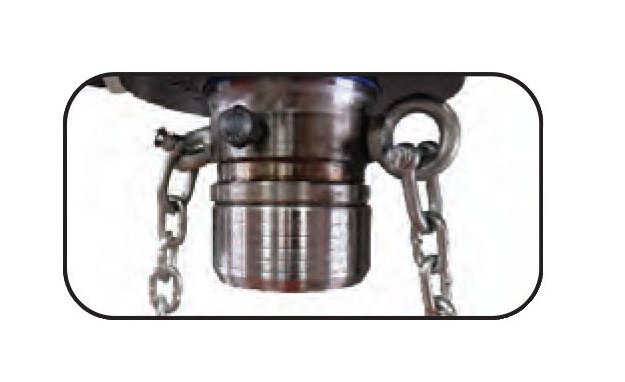

Chrome plated cylinderSteel welded frameOil pressure gaugePressure adjustment2 speed hydraulicsLarge ram strokeMovable cylinder (left to right)V-block with working plateCommon off the shelf components, typically of German or USA origin (Rexroth, Parker, Schneiders, and Siemens)
