H-SMART HSA 220 Ton H-Frame Single Action Press
H-SMART HSA 220 Ton H-Frame Single Action Press
SKU:HSM-cf17b0
Powerful, precise, and reliable H-SMART HSA 220 Ton H-Frame Single Action Press for industrial shaping needs.
Regular price
$59,999.00
Regular price
Sale price
$59,999.00
Unit price
per
Initiate Order
H-SMART HSA 220 Ton H-Frame Single Action Press
$59,999.00
Quantity: 1
Claim Your Seller Account
H-SMART HSA 220 Ton H-Frame Single Action Press
$59,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

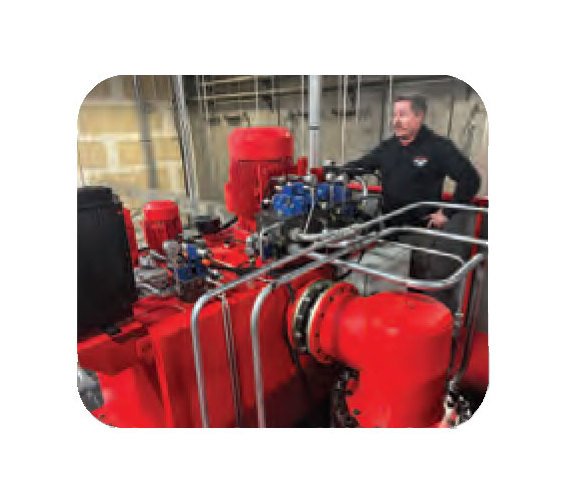

The H-SMART HSA 220 Ton H-Frame Single Action Press is a powerhouse of precision and performance. With a robust 220 US ton capacity, 48-inch daylight, and 40-inch stroke, this press offers exceptional flexibility and power for shaping various materials. Featuring advanced servo proportional hydraulic system, adjustable stroke and pressure controls, and HMI touchscreen for seamless operation, it ensures efficiency and accuracy. The press also includes safety features like a safety cover with light barriers and two-hand button control for enhanced operator protection. Engineered with top-grade components from renowned brands like Rexroth and Siemens, this press delivers reliability and durability for diverse industrial applications.
Product Specifications
Dimensions Height
165 in
Dimensions Length
87 in
Dimensions Width
83 in
Note
We do not source any component of our presses from China.
Optional Features
Ejector cylinderVariable speedsTool loading deviceDie setsCushionHeated platens
Specifications Capacity
220 US t
Specifications Daylight
48 in
Specifications Down Speed
234 in/min
Specifications Frame Design
H-Frame
Specifications Motor Power
30 hp
Specifications Open Height
8 in
Specifications Optional Cushion Capacity
70 US t
Specifications Optional Cushion Stroke
12 in
Specifications Optional T Slots
To Customer Requirement
Specifications Pump
13 gal
Specifications Return Speed
330 in/min
Specifications Slide Action
Single Action
Specifications Stroke
40 in
Specifications Weight
22,046 lb
Specifications Weight With Cushion Option
26,456 lb
Specifications Working Speed
24 in/min
Standard Features

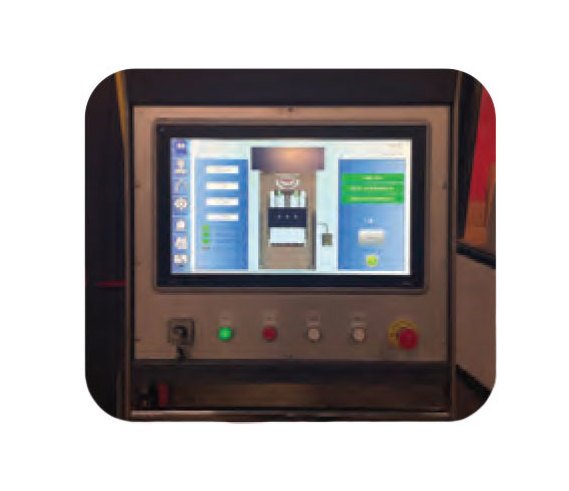

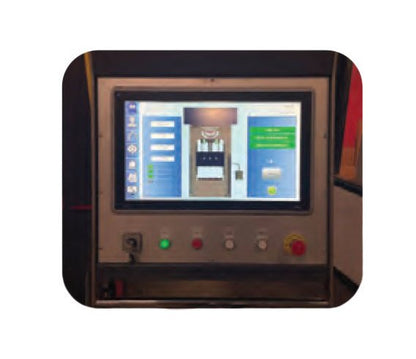

Chrome plated cylinderSteel welded frameServo proportional hydraulic systemHMI touchscreen control panel with RMT height suspension armSafety cover and light barrierTwo hand button controlAdjustable variable pressure on HMI touchscreen control panelAdjustable stroke on HMI touchscreen control panelOil pressure gaugeLubricationAir coolingT-slotted tableCommon off the shelf components, typically of German or USA origin (Rexroth, Parker, Schneiders, and Siemens)
Table Size Table Length
32 in
Table Size Table Width
40 in
