H-SMART HSA H-Frame 110T Single Action Press
H-SMART HSA H-Frame 110T Single Action Press
SKU:HSM-5a87dd
Powerful and precise 110T Single Action Press, ideal for industrial applications.
Regular price
$54,999.00
Regular price
Sale price
$54,999.00
Unit price
per
Initiate Order
H-SMART HSA H-Frame 110T Single Action Press
$54,999.00
Quantity: 1
Claim Your Seller Account
H-SMART HSA H-Frame 110T Single Action Press
$54,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

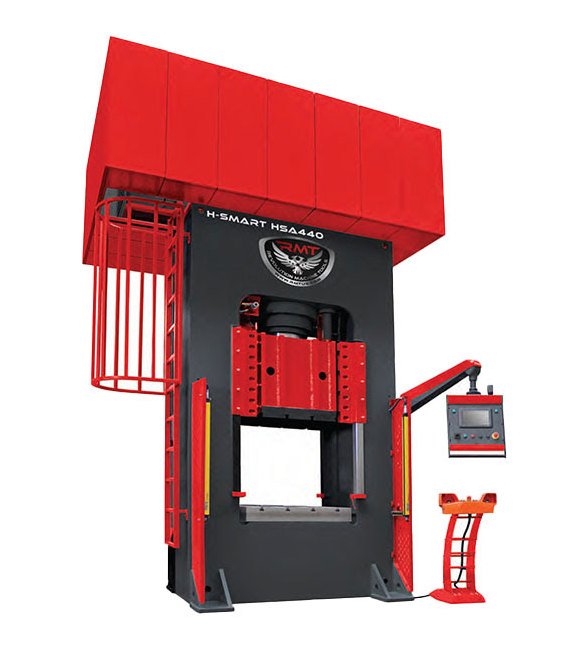

Experience precision and power with the H-SMART HSA H-Frame 110T Single Action Press. This press features a sturdy frame design, a robust 110 US ton capacity, and advanced hydraulic systems for efficient operation. With standard features like a servo proportional hydraulic system and adjustable stroke control, this press ensures accuracy and productivity. Optional features such as ejector cylinders and heated platens extend the press's versatility for diverse applications. Proudly crafted without any components from China, this press guarantees reliability and high performance, meeting the stringent standards of government and institutional procurement requirements.
Product Specifications
Dimensions Height
165 in
Dimensions Length
87 in
Dimensions Width
83 in
Note
We do not source any component of our presses from China.
Optional Features
Ejector cylinderVariable speedsTool loading deviceDie setsCushionHeated platens
Specifications Capacity
110 US t
Specifications Daylight
48 in
Specifications Down Speed
234 in/min
Specifications Frame Design
H-Frame
Specifications Motor Power
30 hp
Specifications Open Height
8 in
Specifications Optional Cushion Capacity
44 US t
Specifications Optional Cushion Stroke
12 in
Specifications Optional T Slots
To Customer Requirement
Specifications Pump
13 gal
Specifications Return Speed
330 in/min
Specifications Slide Action
Single Action
Specifications Stroke
40 in
Specifications Weight
17,637 lb
Specifications Weight With Cushion Option
19,842 lb
Specifications Working Speed
36 in/min
Standard Features

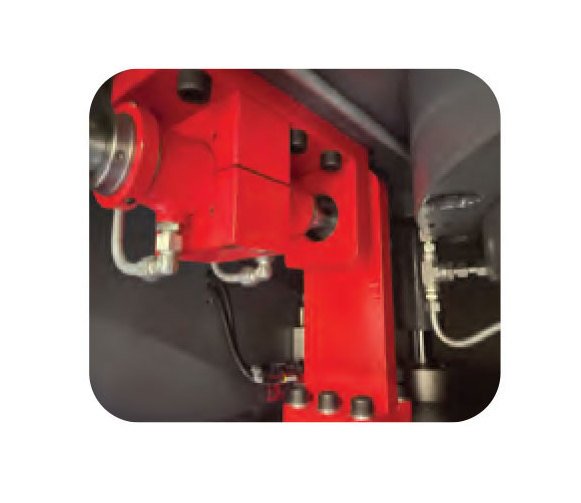

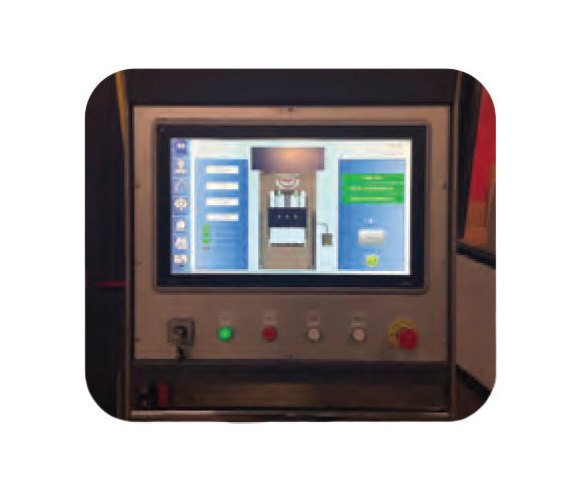

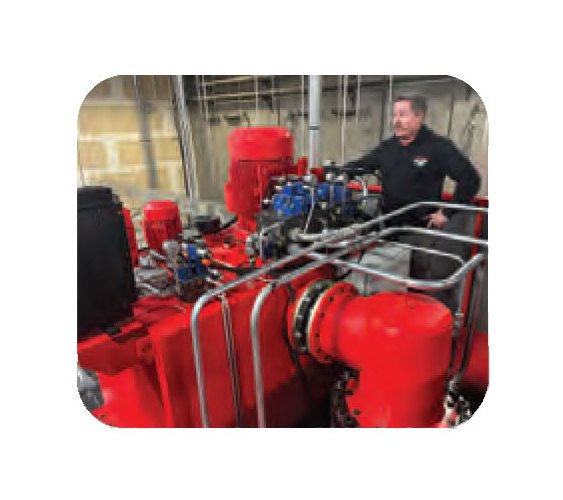

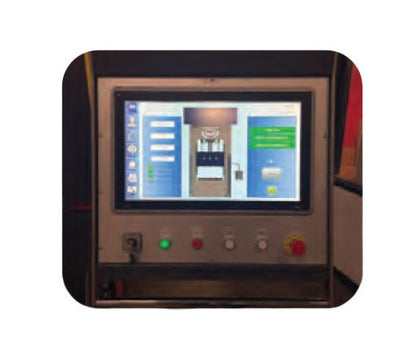

Chrome plated cylinderSteel welded frameServo proportional hydraulic systemHMI touchscreen control panel with RMT height suspension armSafety cover and light barrierTwo hand button controlAdjustable variable pressure on HMI touchscreen control panelAdjustable stroke on HMI touchscreen control panelOil pressure gaugeLubricationAir coolingT-slotted tableCommon off the shelf components, typically of German or USA origin (Rexroth, Parker, Schneiders, and Siemens)
Table Size Table Length
32 in
Table Size Table Width
40 in
