H-SMART HSA H-Frame 330 Ton Single Action Press
H-SMART HSA H-Frame 330 Ton Single Action Press
SKU:HSM-84c340
Experience precision and power with the H-SMART HSA H-Frame 330 Ton Single Action Press.
Regular price
$79,999.00
Regular price
Sale price
$79,999.00
Unit price
per
Initiate Order
H-SMART HSA H-Frame 330 Ton Single Action Press
$79,999.00
Quantity: 1
Claim Your Seller Account
H-SMART HSA H-Frame 330 Ton Single Action Press
$79,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

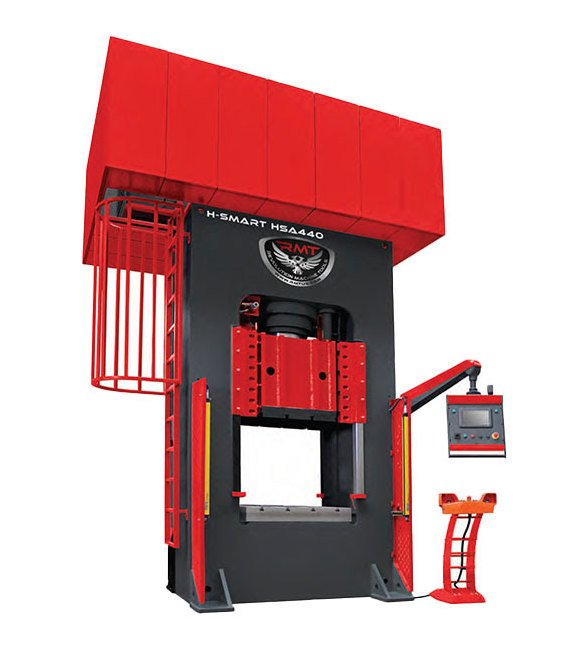

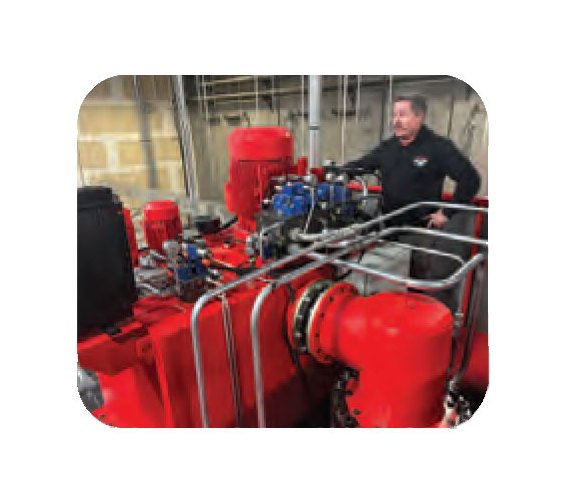

The H-SMART HSA H-Frame 330 Ton Single Action Press by RMT offers exceptional precision and power for a wide range of industrial applications. With a sturdy H-frame design and a capacity of 330 US tons, this press delivers consistent performance. Its servo proportional hydraulic system, adjustable stroke, and HMI touchscreen control panel ensure ease of operation and precise control. Safety features like the height suspension arm and light barrier enhance workplace safety. Optional features like ejector cylinder and heated platens provide versatility for diverse production needs.
Product Specifications
Dimensions Height
177 in
Dimensions Length
95 in
Dimensions Width
91 in
Note
We do not source any component of our presses from China.
Optional Features
Ejector cylinderVariable speedsTool loading deviceDie setsCushionHeated platens
Specifications Capacity
330 US t
Specifications Daylight
48 in
Specifications Down Speed
234 in/min
Specifications Frame Design
H-Frame
Specifications Motor Power
30 hp
Specifications Open Height
8 in
Specifications Optional Cushion Capacity
140 US t
Specifications Optional Cushion Stroke
12 in
Specifications Optional T Slots
To Customer Requirement
Specifications Pump
23 gal
Specifications Return Speed
330 in/min
Specifications Slide Action
Single Action
Specifications Stroke
40 in
Specifications Weight
33,069 lb
Specifications Weight With Cushion Option
37,479 lb
Specifications Working Speed
24 in/min
Standard Features

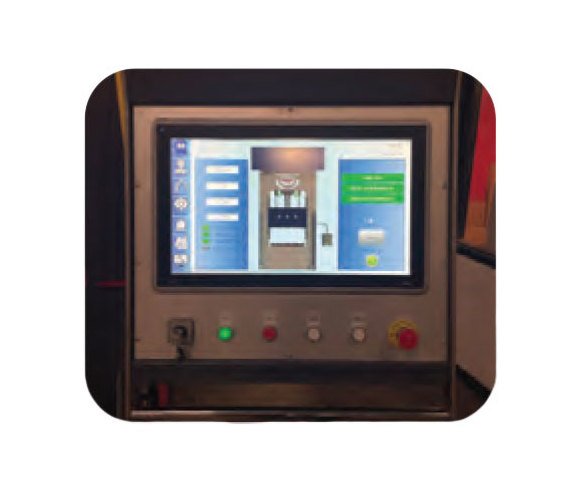

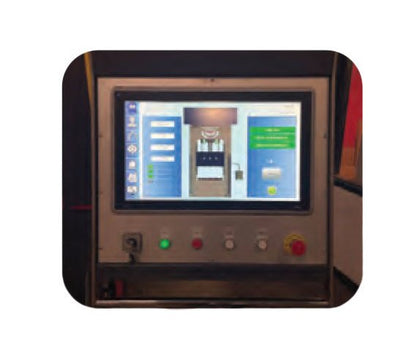

Chrome plated cylinderSteel welded frameServo proportional hydraulic systemHMI touchscreen control panel with RMT height suspension armSafety cover and light barrierTwo hand button controlAdjustable variable pressure on HMI touchscreen control panelAdjustable stroke on HMI touchscreen control panelOil pressure gaugeLubricationAir coolingT-slotted tableCommon off the shelf components, typically of German or USA origin (Rexroth, Parker, Schneiders, and Siemens)
Table Size Table Length
40 in
Table Size Table Width
48 in
