H2200 Type Pull and Junction Box with Overlapping Cover

Name: H2200 Type Pull and Junction Box with Overlapping Cover
Brand: Hope Electrical Products Co., Inc.
SKU: H22-23147b
Price: 159.99 USD
Availability: OutOfStock

SKU:H22-23147b

Durable H2200 Type Pull and Junction Box with overlapping cover, NEMA 4 and NEMA 3R compliant, UL Certified, ideal for electrical enclosures.

$159.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

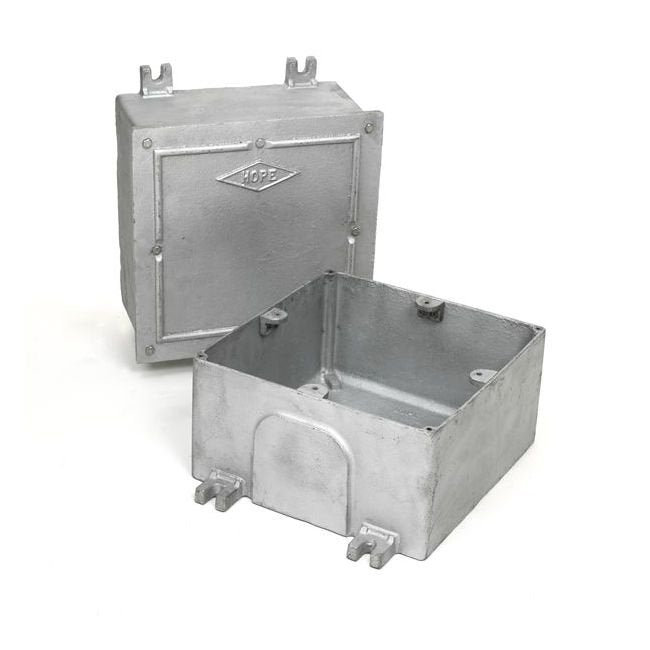

The H2200 Type Pull and Junction Box with overlapping cover offers a robust solution for enclosing electrical devices, junctions, and pull services with its durable cast iron construction. Compliant with NEMA 4 and NEMA 3R standards and UL Certification (File E189027), this box ensures weatherproof and dust-tight protection both indoors and outdoors. Equipped with stainless steel machine screws and a neoprene gasket, this box features an overlapping cover that meets Underwriters requirements on unflanged boxes. With options for customization such as drilling, tapping, bosses for rain-tight conduit entrances, and mounting lugs, this box is versatile for various installation needs. Additionally, it can be made in cast aluminum upon request, expanding its adaptability for different environments.

Product Specifications

Specifications Approx Wall Thickness

1/4 in.

Specifications Approx Weight

58 lbs

Specifications Construction

cast iron

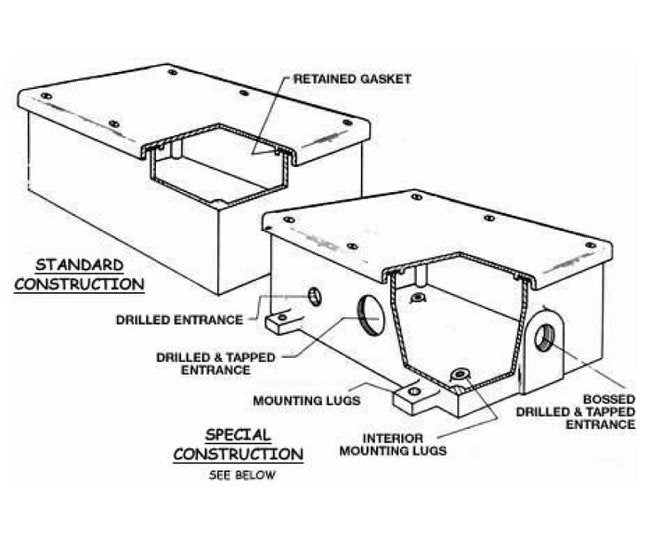

Specifications Holes Can Be Boss Drilled And Tapped

Holes can be boss, drilled and tapped by Hope Electrical Products at additional cost. Please mark up the hole locations on the attached drilling template and submit with your order to request for quote.

Specifications Inside Depth

4 in.

Specifications Inside Length

16 in.

Specifications Inside Width

12 in.

Specifications Max Conduit

2 1/2 in.

Specifications Mounting

Surface

Specifications Stock Note

If you donât see a box size listed that you need, please inquire - we may have it. This list does not represent all of our boxes.

Specifications Third Party Certification

UL E189027

Specifications Type

H2200

H2200 Type Pull and Junction Box with Overlapping Cover
