H2200 Type - Pull and Junction Box with Overlapping Cover

Name: H2200 Type - Pull and Junction Box with Overlapping Cover
Brand: Hope Electrical Products Co., Inc.
SKU: H22-7166a2
Price: 299.99 USD
Availability: OutOfStock

SKU:H22-7166a2

Durable H2200 Type Pull & Junction Box with overlapping cover, NEMA 4 & NEMA 3R compliant, ideal for diverse electrical applications.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

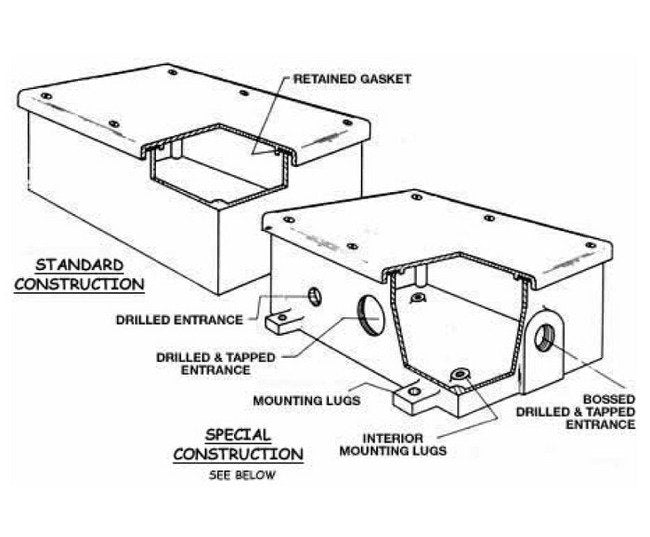

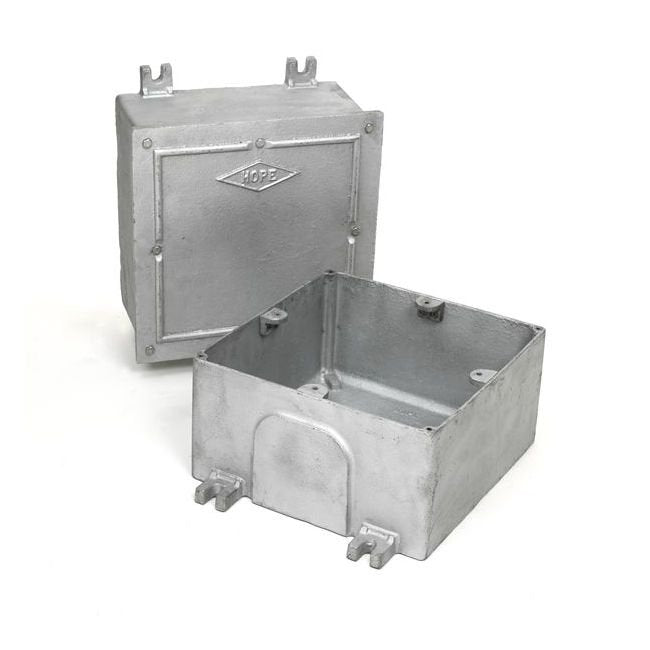

The H2200 Type Pull and Junction Box with overlapping cover is a durable solution for enclosing electrical devices, junctions, and service pulls. Constructed from cast iron with stainless steel machine screws, this box meets NEMA 4 and NEMA 3R standards, ensuring weatherproof and dust-tight protection. Designed to meet Underwriters requirements on unflanged boxes, it can be safely installed indoors or outdoors. Featuring a Neoprene gasket and available extras like drilling options, bosses for rain-tight seal, mounting lugs, and blind-tapped mounting buttons, this box offers versatility and customization for various installations.

Product Specifications

Specifications Approx Wall Thickness

5/16 in.

Specifications Approx Weight

74 lbs

Specifications Construction

cast iron

Specifications Holes Can Be Boss Drilled And Tapped

Holes can be boss, drilled and tapped by Hope Electrical Products at additional cost. Please mark up the hole locations on the attached drilling template and submit with your order to request for quote.

Specifications Inside Depth

6 in.

Specifications Inside Length

24 in.

Specifications Inside Width

8 in.

Specifications Max Conduit

4 in.

Specifications Mounting

Surface

Specifications Stock Note

If you donât see a box size listed that you need, please inquire - we may have it. This list does not represent all of our boxes.

Specifications Third Party Certification

UL E189027

Specifications Type

H2200

H2200 Type - Pull and Junction Box with Overlapping Cover
