H2200 Type Pull and Junction Box with Overlapping Cover - Cast Aluminum, NEMA 4 & 3R Rated

Name: H2200 Type Pull and Junction Box with Overlapping Cover - Cast Aluminum, NEMA 4 & 3R Rated
Brand: Hope Electrical Products Co., Inc.
SKU: H22-6e55c4
Price: 59.99 USD
Availability: OutOfStock

SKU:H22-6e55c4

Durable cast aluminum junction box with overlapping cover for weatherproof seal. NEMA 4 & 3R rated. Ideal for diverse electrical applications.

$59.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

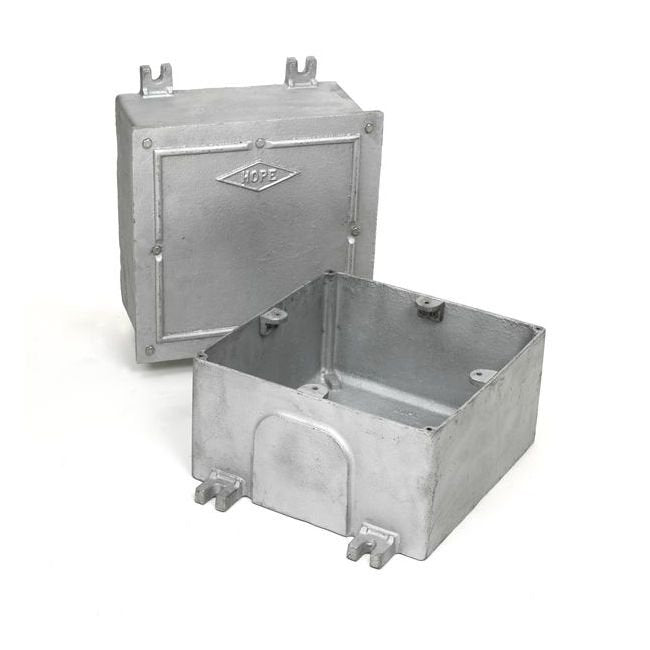

The H2200 Type Pull and Junction Box with Overlapping Cover is designed for both indoor and outdoor installations, offering a weatherproof and dust-tight seal. Constructed from durable cast aluminum, it meets NEMA 4 and NEMA 3R standards, ensuring superior protection for electrical devices, junctions, and pull services. Featuring stainless steel machine screws and a neoprene gasket, this box includes optional extras like drilling and tapping, bosses for rain-tight seal, and mounting lugs for versatile mounting options. With third-party certification and customizable configurations, the H2200 Type Box is a reliable solution for various applications.

Product Specifications

Specifications Approx Wall Thickness

1/4 in.

Specifications Approx Weight

8.97 lbs

Specifications Construction

Cast Aluminum

Specifications Holes Can Be Boss Drilled And Tapped

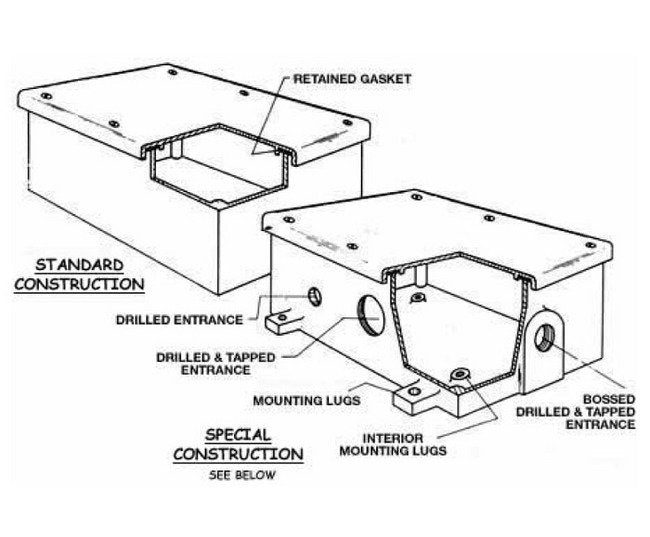

Holes can be boss, drilled and tapped by Hope Electrical Products at additional cost. Please mark up the hole locations on the attached drilling template and submit with your order to request for quote.

Specifications Inside Depth

4 in.

Specifications Inside Length

12 in.

Specifications Inside Width

8 in.

Specifications Max Conduit

2 1/2 in.

Specifications Mounting

Surface

Specifications Stock Note

If you donât see a box size listed that you need, please inquire - we may have it. This list does not represent all of our boxes.

Specifications Third Party Certification

UL E189027

Specifications Type

H2200
