H2200 Type Pull and Junction Box with Overlapping Cover - Surface Mounting

Name: H2200 Type Pull and Junction Box with Overlapping Cover - Surface Mounting
Brand: Hope Electrical Products Co., Inc.
SKU: H22-cdf0a9
Price: 129.99 USD
Availability: OutOfStock

SKU:H22-cdf0a9

Durable H2200 Type Pull & Junction Box with overlapping cover, NEMA 4/3R compliant, neoprene gasket, stainless steel screws, suitable for indoor/outdoor installation.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

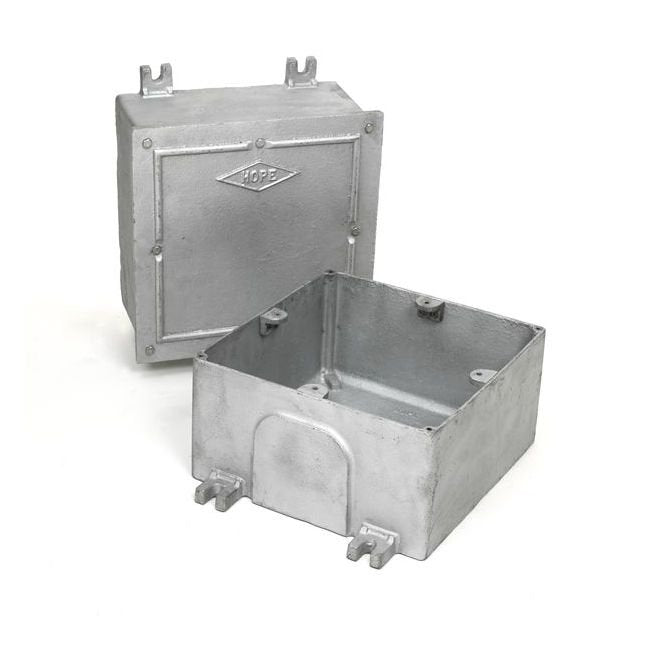

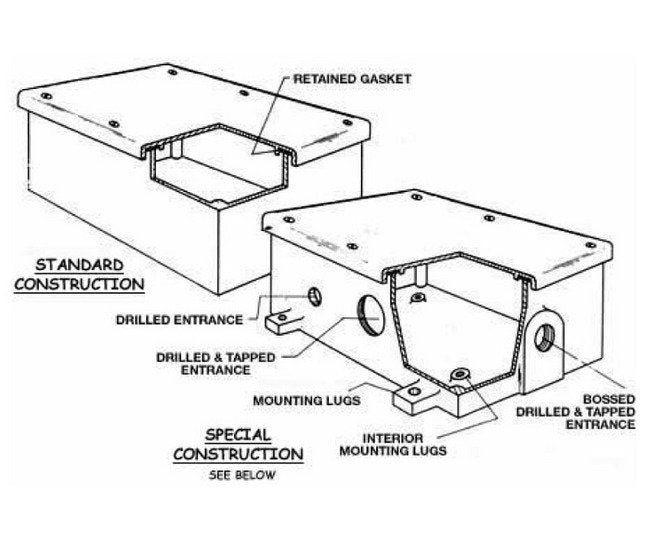

The H2200 Type Pull and Junction Box with overlapping cover is constructed with durable cast iron and hot-dipped galvanized for lasting performance. This NEMA 4 and NEMA 3R compliant box features a neoprene gasket and stainless steel machine screws for weatherproof and dust-tight protection. Equipped with overlapping covers to meet Underwriters requirements, this box is suitable for indoor and outdoor installations. It supports various electrical devices, junctions, and pull services, with options for drilling, tapping, bosses for rain-tight entrances, and mounting lugs for outdoor setups. Upgrade to the cast aluminum version by adding 'AL' to the part number for added versatility.

Product Specifications

Specifications Approx Wall Thickness

1/4 in.

Specifications Approx Weight

17.24 lbs

Specifications Construction

Cast Aluminum

Specifications Holes Can Be Boss Drilled And Tapped

Holes can be boss, drilled and tapped by Hope Electrical Products at additional cost. Please mark up the hole locations on the attached drilling template and submit with your order to request for quote.

Specifications Inside Depth

6 in.

Specifications Inside Length

18 in.

Specifications Inside Width

8 in.

Specifications Max Conduit

4 in.

Specifications Mounting

Surface

Specifications Stock Note

If you donât see a box size listed that you need, please inquire - we may have it. This list does not represent all of our boxes.

Specifications Third Party Certification

UL E189027

Specifications Type

H2200

H2200 Type Pull and Junction Box with Overlapping Cover - Surface Mounting
