H2200 Type Pull & Junction Box with Overlapping Cover

Name: H2200 Type Pull & Junction Box with Overlapping Cover
Brand: Hope Electrical Products Co., Inc.
SKU: H22-565cd8
Price: 89.99 USD
Availability: OutOfStock

SKU:H22-565cd8

Durable H2200 Type Pull & Junction Box with overlapping cover for indoor/outdoor use. NEMA 4/3R compliant, corrosion-resistant, weatherproof.

$89.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

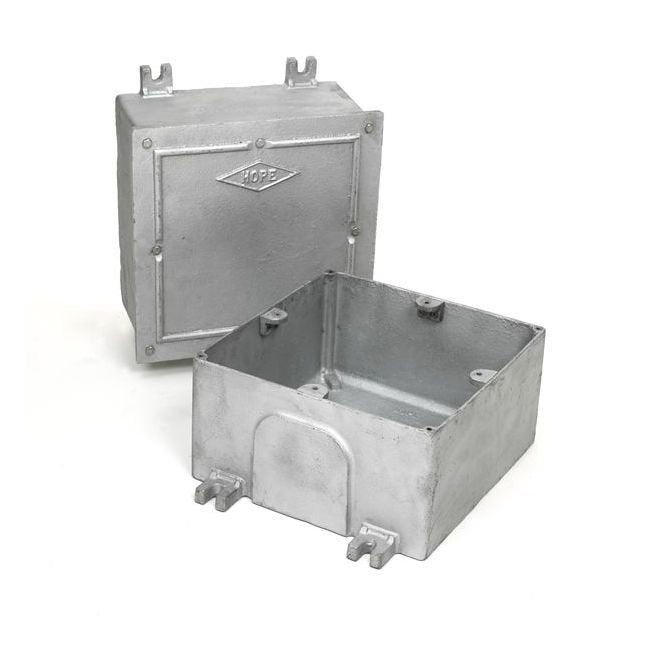

The H2200 Type Pull and Junction Box with overlapping cover is designed for both indoor and outdoor installations, meeting NEMA 4 and NEMA 3R standards. Constructed from durable cast aluminum and hot-dipped galvanized for corrosion resistance, this box features stainless steel machine screws and a neoprene gasket for weatherproof and dust-tight protection. Equipped with overlapping covers to meet Underwriters requirements, it includes options for customization such as drilling, tapping, bosses for rain-tight seals, and mounting lugs, making it versatile for various electrical applications. Ideal for enclosing electrical devices, junctions, and pull services, this box ensures reliability and compliance with UL File E189027 standards.

Product Specifications

Specifications Approx Wall Thickness

1/4 in.

Specifications Approx Weight

4.14 lbs

Specifications Construction

Cast Aluminum

Specifications Holes Can Be Boss Drilled And Tapped

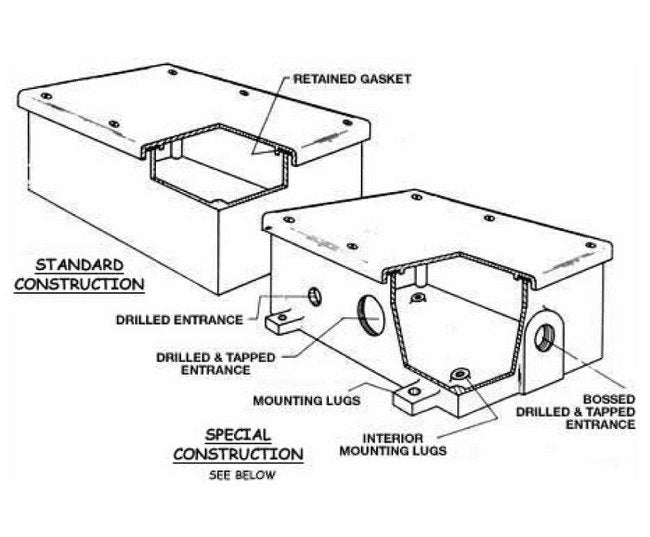

Holes can be boss, drilled and tapped by Hope Electrical Products at additional cost. Please mark up the hole locations on the attached drilling template and submit with your order to request for quote.

Specifications Inside Depth

4 in.

Specifications Inside Length

6 in.

Specifications Inside Width

6 in.

Specifications Max Conduit

2 1/2 in.

Specifications Mounting

Surface

Specifications Stock Note

If you donât see a box size listed that you need, please inquire - we may have it. This list does not represent all of our boxes.

Specifications Third Party Certification

UL E189027

Specifications Type

H2200
