H3200-T Hinged Weatherproof Terminal Cabinets
H3200-T Hinged Weatherproof Terminal Cabinets
SKU:H32-75d7d8
Durable cast iron terminal cabinets with weatherproof design for secure wire connections.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
H3200-T Hinged Weatherproof Terminal Cabinets
$399.99
Quantity: 1
Claim Your Seller Account
H3200-T Hinged Weatherproof Terminal Cabinets
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

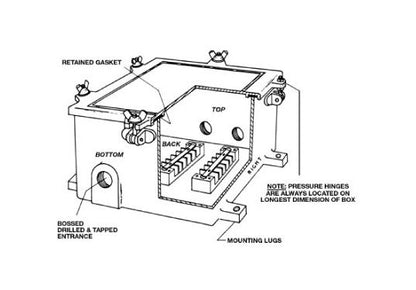

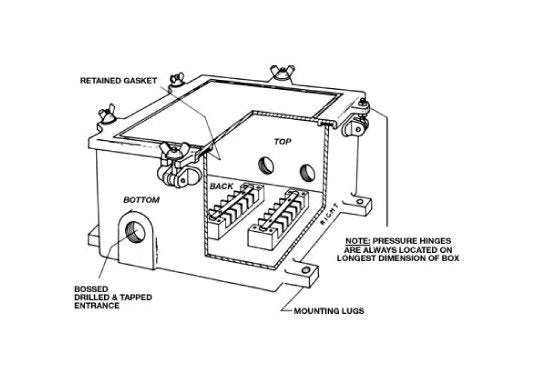

The H3200-T Hinged Weatherproof Terminal Cabinets are constructed with durable cast iron, featuring a surface mounting design for easy installation. Compliant with NEMA 3R and NEMA IV standards, these cabinets are equipped with stainless steel hardware, a neoprene gasket, and terminal blocks with a maximum wire size of #10 AWG. The cabinets offer ample wiring space, weather-tightness with bosses for raintight installations, and can be secured with a galvanized non-removable hasp. Ideal for institutional applications requiring secure and weatherproof terminal solutions.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Approx Weight
150 lbs
Specifications Argmnt Of Blocks Vertical Rows
ll
Specifications Block To Block
4
Specifications Construction
cast iron
Specifications Inside Depth
6 in.
Specifications Inside Length
28 in.
Specifications Inside Width
12 in.
Specifications Max Conduit
4 in.
Specifications Mounting
Surface
Specifications No Of Hinges
3
Specifications No Of Wing Nuts
5
Specifications No Of Wires
64
Specifications Stock Note
If you donât see a box size listed that you need, please inquire - we may have it. This list does not represent all of our boxes.
Specifications Third Party Certification
UL E189027
Specifications Type
H3200-T
Specifications Wall Thickness
5/16 in.
Specifications Wiring Space Block To Wall
2 in.
