H3200-T Weatherproof Terminal Cabinets
H3200-T Weatherproof Terminal Cabinets
SKU:H32-3a8e77
Durable cast aluminum weatherproof terminal cabinets with secure terminal blocks for reliable connections. Meets NEMA standards.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
H3200-T Weatherproof Terminal Cabinets
$599.99
Quantity: 1
Claim Your Seller Account
H3200-T Weatherproof Terminal Cabinets
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

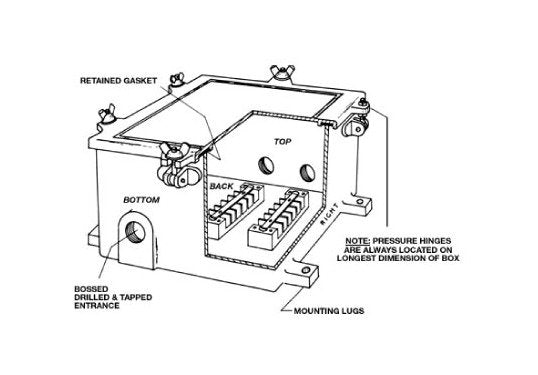

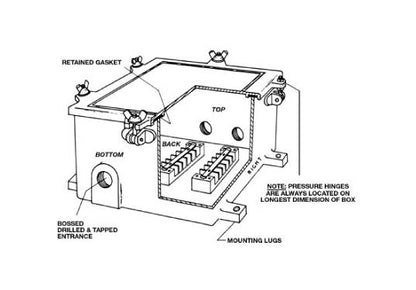

The H3200-T Weatherproof Terminal Cabinets are constructed with durable cast aluminum, designed for surface mounting to ensure weather-tight protection for terminal blocks. With a wide range of sizes to accommodate different wire conditions, these cabinets feature terminal blocks rated at 30A and 750V on blind tapped buttons for secure connections. The cabinets meet NEMA 3R and NEMA IV standards, utilizing stainless steel hardware, neoprene gaskets, and bosses for five threads to guarantee raintight and dust-tight installation. Ideal for institutional and government settings requiring reliable, weatherproof solutions.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Approx Weight
113.79 lbs
Specifications Argmnt Of Blocks Vertical Rows
llll
Specifications Block To Block
4
Specifications Construction
Cast Aluminum
Specifications Inside Depth
5 3/4 in.
Specifications Inside Length
34 in.
Specifications Inside Width
30 in.
Specifications Max Conduit
3 in.
Specifications Mounting
Surface
Specifications No Of Hinges
4
Specifications No Of Wing Nuts
8
Specifications No Of Wires
120
Specifications Stock Note
If you donât see a box size listed that you need, please inquire - we may have it. This list does not represent all of our boxes.
Specifications Third Party Certification
UL E189027
Specifications Type
H3200-T
Specifications Wall Thickness
5/16 in.
Specifications Wiring Space Block To Wall
5 in.
