H3200 Type - Hinged Weatherproof Box
H3200 Type - Hinged Weatherproof Box
SKU:H32-34369a
Premium weatherproof cast iron box with secure closure for outdoor applications, NEMA 4 and NEMA 3R compliant, UL certified.
Regular price
$589.99
Regular price
Sale price
$589.99
Unit price
per
Initiate Order
H3200 Type - Hinged Weatherproof Box
$589.99
Quantity: 1
Claim Your Seller Account
H3200 Type - Hinged Weatherproof Box
$589.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

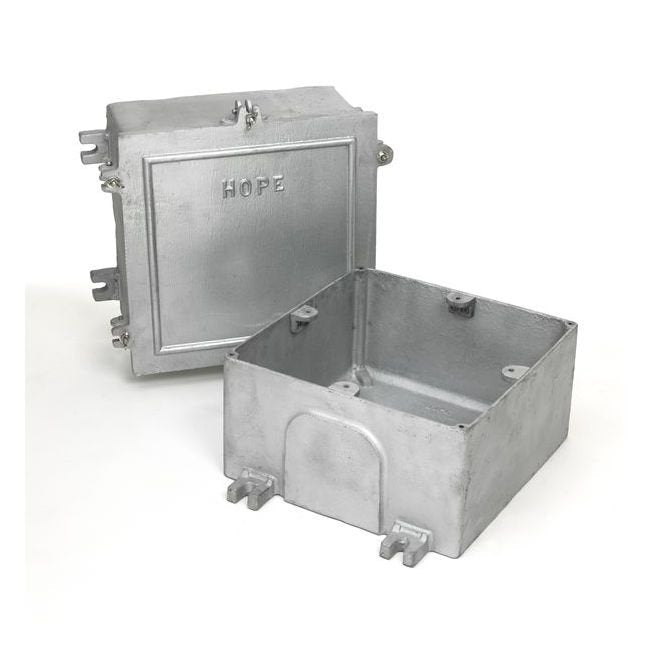

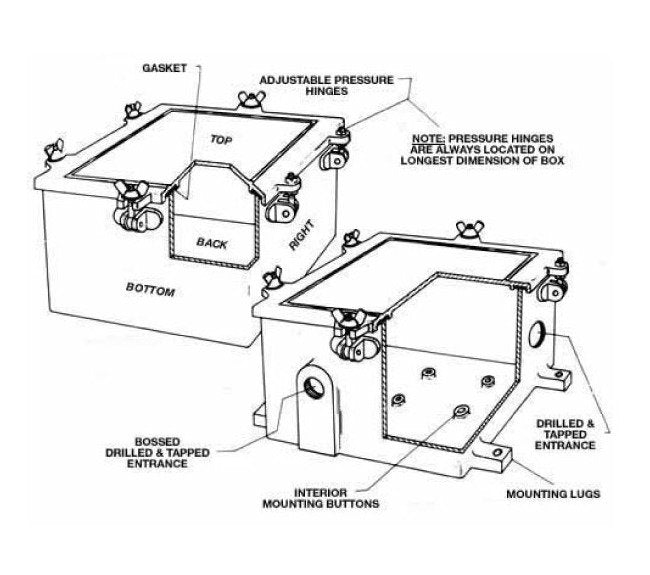

The H3200 Type - Hinged Weatherproof Box is a premium solution for outdoor junction and pull services, enclosures for transformers, relays, and more. Constructed with durable cast iron, this box features a plain cover with a stainless steel machine screws and a neoprene gasket, ensuring weatherproof and dust-tight performance. With retained one-piece gasket, pressure hinges, and wing nuts, it offers secure closure. Designed for surface mounting, it meets NEMA 4 and NEMA 3R standards and is UL certified. Additional customization options include drilling, tapping, bosses for threads, and special gaskets.
Product Specifications
Specifications Approx Wall Thickness
5/16 in.
Specifications Approx Weight
430 lbs
Specifications Construction
cast iron
Specifications Holes Can Be Boss Drilled And Tapped
Holes can be boss, drilled and tapped by Hope Electrical Products at additional cost. Please mark up the hole locations on the attached drilling template and submit with your order to request for quote.
Specifications Inside Depth
8 in.
Specifications Inside Length
48 in.
Specifications Inside Width
24 in.
Specifications Max Conduit
2 in.
Specifications Mounting
Surface
Specifications Stock Note
If you donât see a box size listed that you need, please inquire - we may have it. This list does not represent all of our boxes.
Specifications Third Party Certification
UL E189027
Specifications Type
H3200
