H3200 Type - Hinged Weatherproof Box for Institutional Use
H3200 Type - Hinged Weatherproof Box for Institutional Use
SKU:H32-6fbd70
Durable H3200 Type Weatherproof Box for secure outdoor electrical enclosures
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
H3200 Type - Hinged Weatherproof Box for Institutional Use
$399.99
Quantity: 1
Claim Your Seller Account
H3200 Type - Hinged Weatherproof Box for Institutional Use
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

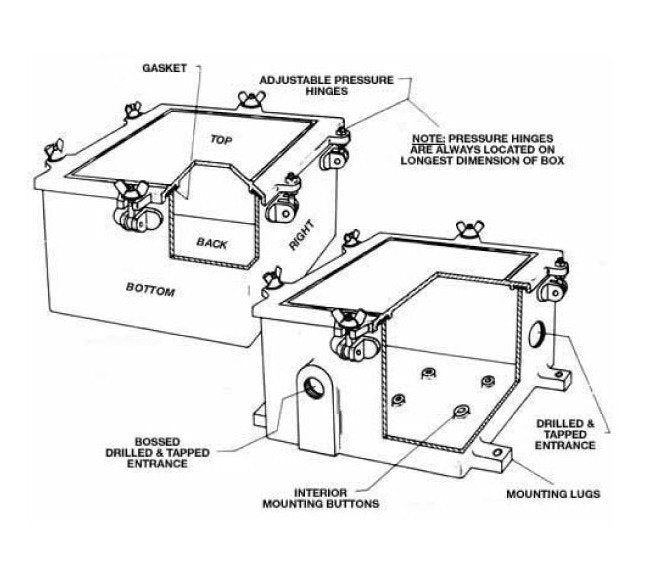

The H3200 Type - Hinged Weatherproof Box is a durable solution designed for outdoor applications like junction and pull service, cut-outs, transformers, and more. Constructed with cast iron and hot-dipped galvanized for lasting performance, it meets NEMA 4 and NEMA 3R standards. Featuring a neoprene gasket, stainless steel screws, and optional extras like drilling and tapping, this box ensures a secure and weatherproof enclosure for various electrical components. Ideal for institutional and government settings, such as DoD facilities, ensuring compliance with UL standards.
Product Specifications
Note 0
Compare wall thickness of box with chart below to determine if wall thickness is great enough for conduit hole threads required. If more threads required, order with Bossed, Drilled or Tapped holes. Conduit Size No. of Threads per inch Wall Thickness Required (NEMA VII) (NEMA IV) 5 Threads 3 1/2 Threads 1/2" - 3/4" 14 3/8" 1/4" 1" - 2" 11.5 7/16" 5/16" 2 1/2" - 4" 8 5/8" 7/16"
Specifications Approx Wall Thickness
5/16 in.
Specifications Approx Weight
111 lbs
Specifications Construction
cast iron
Specifications Holes Can Be Boss Drilled And Tapped
Holes can be boss, drilled and tapped by Hope Electrical Products at additional cost. Please mark up the hole locations on the attached drilling template and submit with your order to request for quote.
Specifications Inside Depth
8 in.
Specifications Inside Length
20 in.
Specifications Inside Width
8 in.
Specifications Max Conduit
2 in.
Specifications Mounting
Surface
Specifications Stock Note
If you donât see a box size listed that you need, please inquire - we may have it. This list does not represent all of our boxes.
Specifications Third Party Certification
UL E189027
Specifications Type
H3200
