H3200 Weatherproof Box
H3200 Weatherproof Box
SKU:H32-0e43f6
Durable H3200 Weatherproof Box for outdoor applications with cast iron construction, neoprene gasket, and UL certification. Ideal for junction services and more.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
H3200 Weatherproof Box
$499.99
Quantity: 1
Claim Your Seller Account
H3200 Weatherproof Box
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

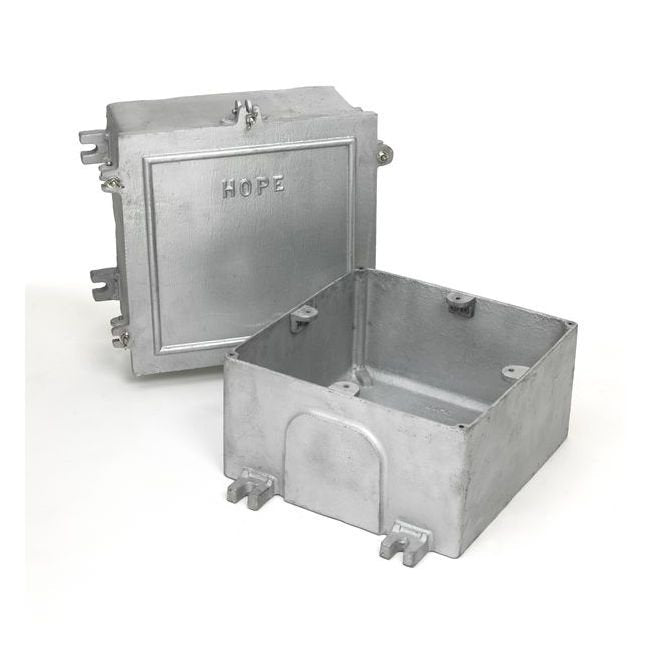

The H3200 Weatherproof Box is a durable solution for outdoor applications, featuring a cast iron construction with stainless steel screws and a neoprene gasket for superior weather resistance. Third-party certified to UL standards, this box is suitable for a range of uses including junction services, cut-outs, transformers, and more. With options for custom drilling and tapping, as well as various mounting accessories available, this weatherproof box ensures a secure and dependable enclosure for your equipment.
Product Specifications
Note 0
Compare wall thickness of box with chart below to determine if wall thickness is great enough for conduit hole threads required. If more threads required, order with Bossed, Drilled or Tapped holes. Conduit Size No. of Threads per inch Wall Thickness Required (NEMA VII) (NEMA IV) 5 Threads 3 1/2 Threads 1/2" - 3/4" 14 3/8" 1/4" 1" - 2" 11.5 7/16" 5/16" 2 1/2" - 4" 8 5/8" 7/16"
Specifications Approx Wall Thickness
9/16 in.
Specifications Approx Weight
510 lbs
Specifications Construction
cast iron

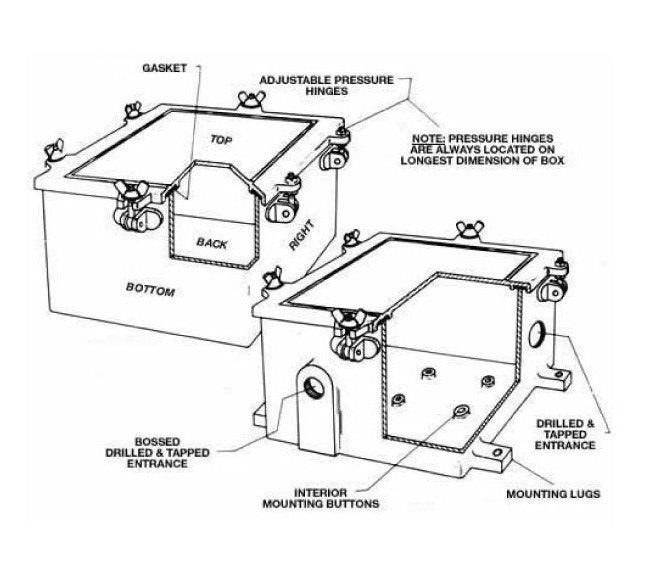

Specifications Holes Can Be Boss Drilled And Tapped
Holes can be boss, drilled and tapped by Hope Electrical Products at additional cost. Please mark up the hole locations on the attached drilling template and submit with your order to request for quote.
Specifications Inside Depth
12 in.
Specifications Inside Length
36 in.
Specifications Inside Width
36 in.
Specifications Mounting
Surface
Specifications Stock Note
If you donât see a box size listed that you need, please inquire - we may have it. This list does not represent all of our boxes.
Specifications Third Party Certification
UL E189027
Specifications Type
H3200
