H400 Type Square Outlet Box - Cast Iron
H400 Type Square Outlet Box - Cast Iron
SKU:H40-625794
Durable H400 Type Square Outlet Box made of cast iron for secure electrical installations. NEMA 3R & NEMA IV rated with surface mounting. Includes box, cover, gasket, and stainless steel screws.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
H400 Type Square Outlet Box - Cast Iron
$49.99
Quantity: 1
Claim Your Seller Account
H400 Type Square Outlet Box - Cast Iron
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

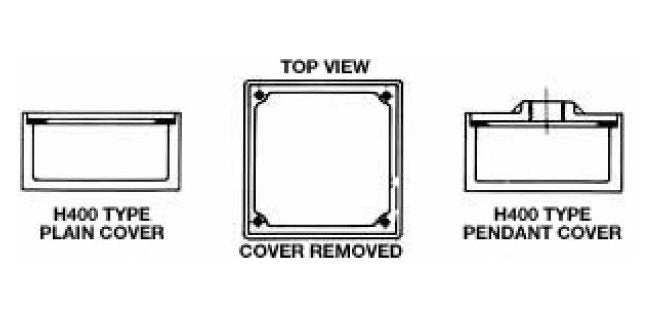

The H400 Type Square Outlet Box is a durable solution for electrical installations, constructed from cast iron with a hot-dip galvanized surface for enhanced corrosion resistance. This NEMA 3R and NEMA IV rated unit includes a box, plain cover, gasket, and stainless steel screws. With a surface mounting design, it features a 2-inch max conduit capacity and an outside depth of 4 1/8 inches. Additional features include mounting lugs, optional drilling and tapping services, and compatibility with P70 and P80 pendant covers. Ensure a secure and reliable electrical setup with this reliable square outlet box.
Product Specifications
Specifications Approx Weight
6.0 lbs
Specifications Construction
cast iron
Specifications Holes Can Be Boss Drilled And Tapped
Holes can be boss, drilled and tapped by Hope Electrical Products at additional cost. Please mark up the hole locations on the attached drilling template and submit with your order to request for quote.
Specifications Inside Depth
4 in.
Specifications Max Conduit
2 in.
Specifications Mounting
Surface
Specifications Outside Depth
4 1/8 in.
Specifications Stock Note
If you donât see a box size listed that you need, please inquire - we may have it. This list does not represent all of our boxes.
Specifications Type
H400
