H5800 Type Checkered Cover Sidewalk Box - Cast Iron Construction

Name: H5800 Type Checkered Cover Sidewalk Box - Cast Iron Construction
Brand: Hope Electrical Products Co., Inc.
SKU: H58-d899d1
Price: 399.99 USD
Availability: OutOfStock

SKU:H58-d899d1

Durable cast iron sidewalk box with checkered cover, NEMA 4/3R compliant, and UL certified for heavy pedestrian traffic.

$399.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

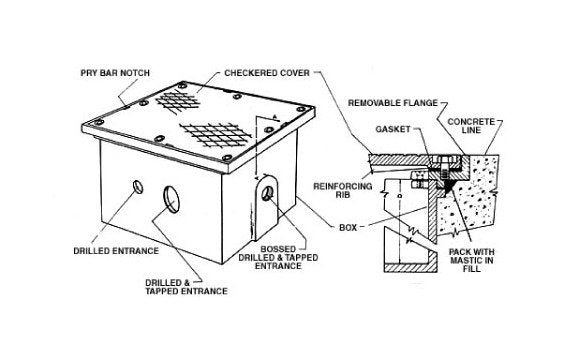

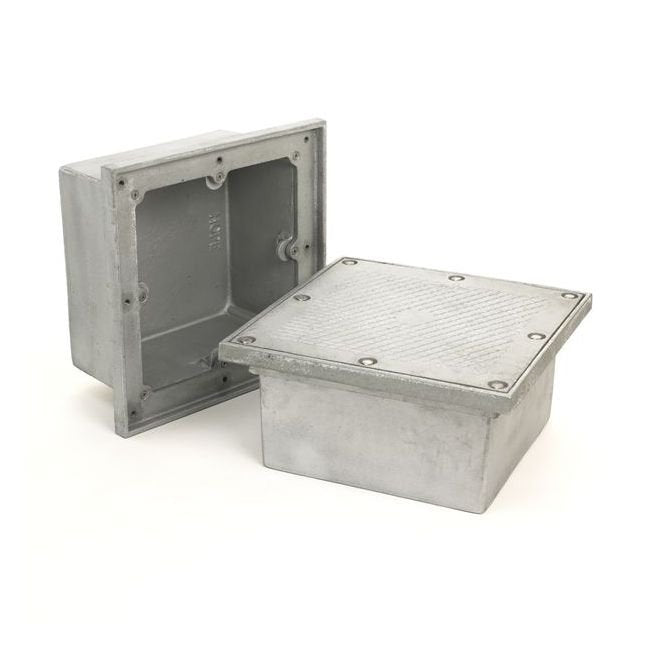

The H5800 Type Checkered Cover Sidewalk Box is a heavy-duty solution designed for sidewalks, walkways of bridges, dams, tunnels, and airports. Constructed from durable cast iron with a hot-dipped galvanized finish, this box is flush-mounted, NEMA 4/3R compliant, and UL certified. Featuring a cross-ribbed non-slip cover and a neoprene gasket, it can withstand heavy pedestrian traffic and H20 loading. The three-piece construction with interchangeable flanges and covers allows for easy maintenance without disrupting the conduit system, providing a reliable and long-lasting infrastructure solution.

Product Specifications

Specifications Approx Wall Thickness

3/8 in.

Specifications Approx Weight

166 lbs

Specifications Construction

cast iron

Specifications Holes Can Be Boss Drilled And Tapped

Holes can be boss, drilled and tapped by Hope Electrical Products at additional cost. Please mark up the hole locations on the attached drilling template and submit with your order to request for quote.

Specifications Inside Depth

6 in.

Specifications Inside Length

18 in.

Specifications Inside Width

18 in.

Specifications Mounting

Flush

Specifications Options

Galvanized checkered covers

Specifications Stock Note

If you donât see a box size listed that you need, please inquire - we may have it. This list does not represent all of our boxes.

Specifications Type

H5800
