H6000-Type Explosion Housing - Surface Mount NEMA 4, NEMA 3R, NEMA 7
H6000-Type Explosion Housing - Surface Mount NEMA 4, NEMA 3R, NEMA 7
SKU:H60-9154f1
Safe, robust, and weatherproof explosion housing ideal for hazardous locations. NEMA 3R and NEMA 4 rated without gasket.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
H6000-Type Explosion Housing - Surface Mount NEMA 4, NEMA 3R, NEMA 7
$249.99
Quantity: 1
Claim Your Seller Account
H6000-Type Explosion Housing - Surface Mount NEMA 4, NEMA 3R, NEMA 7
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

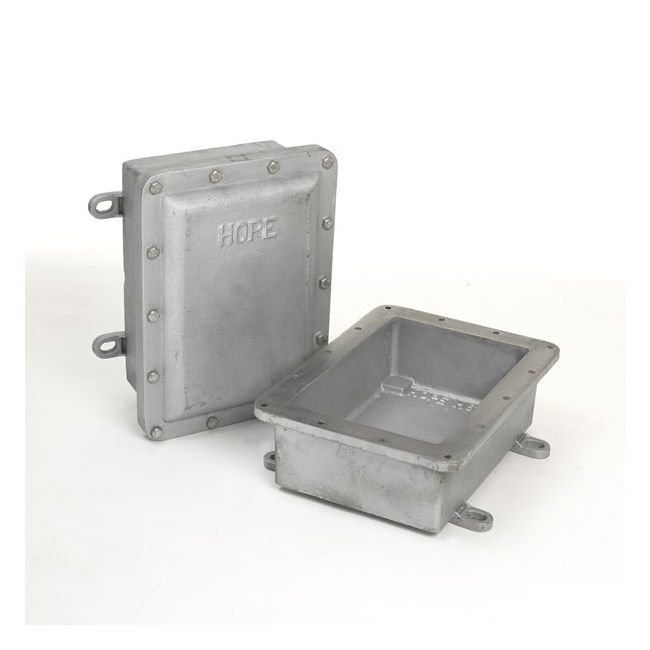

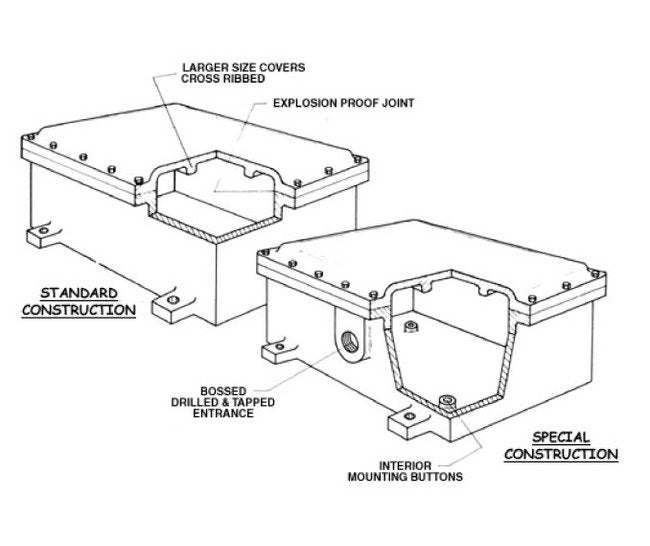

The H6000-Type Explosion Housing is meticulously designed for hazardous locations in Class I, groups C and D, meeting the robust standards set forth by the Underwriters’ Laboratories, Inc. This cast aluminum housing features precision metal-to-metal joints, ensuring NEMA 3R (Raintight) and NEMA 4 (Weatherproof) ratings without the need for a gasket. With a durable construction, interior mounting buttons, and bronze hinges for heavy covers, this housing is ideal for applications in gasoline refineries, chemical plants, and gas pumping stations. The surface mounting design with two mounting lugs on each side allows for secure installation in demanding environments.
Product Specifications
Specifications Approx Wall Thickness
7/16 in.
Specifications Approx Weight
29.31 lbs
Specifications Construction
Cast Aluminum
Specifications Inside Depth
4 in.
Specifications Inside Length
12 in.
Specifications Inside Width
12 in.
Specifications Mounting
Surface
Specifications Stock Note
If you donât see a box size listed that you need, please inquire - we may have it. This list does not represent all of our boxes.
Specifications Type
H6000
