H6200 Internal Recess Flanged Box
H6200 Internal Recess Flanged Box
SKU:H62-0a9c85
Premium H6200 Internal Recess Flanged Box, NEMA 4 & NEMA 3R compliant, cast iron construction, customizable options for diverse installations.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
H6200 Internal Recess Flanged Box
$89.99
Quantity: 1
Claim Your Seller Account
H6200 Internal Recess Flanged Box
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

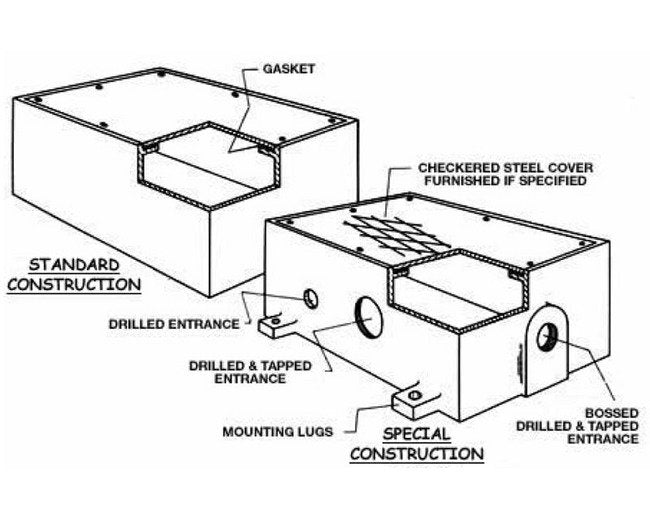

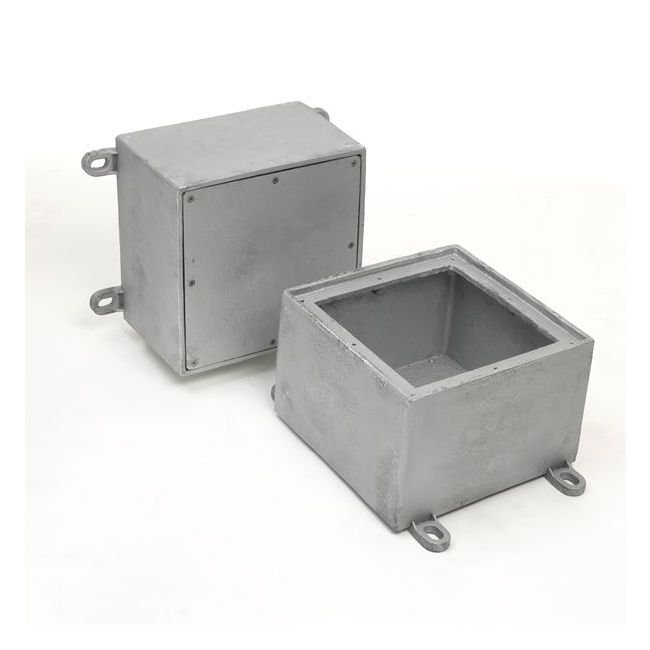

The H6200 Internal Recess Flanged Box is a durable solution suitable for flush or surface mounting in both concrete and various surfaces. Complying with NEMA 4 and NEMA 3R standards, this box boasts a cast iron construction with a neoprene gasket and stainless steel machine screws. With options for customized drilling and tapping, galvanized checkered steel covers, and various accessories like mounting lugs and hinges, this versatile box provides secure housing for electrical components. Whether for industrial, commercial, or institutional applications, the H6200 ensures reliability and longevity in varied environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Approx Wall Thickness
1/4 in.
Specifications Approx Weight
8.5 lbs
Specifications Construction
cast iron
Specifications Holes Can Be Boss Drilled And Tapped
Holes can be boss, drilled and tapped by Hope Electrical Products at additional cost. Please mark up the hole locations on the attached drilling template and submit with your order to request for quote.
Specifications Inside Depth
3 in.
Specifications Inside Length
4 in.
Specifications Inside Width
4 in.
Specifications Mounting
Flush | Surface
Specifications Options
Galvanized checkered steel covers
Specifications Stock Note
If you donât see a box size listed that you need, please inquire - we may have it. This list does not represent all of our boxes.
Specifications Type
H6200
