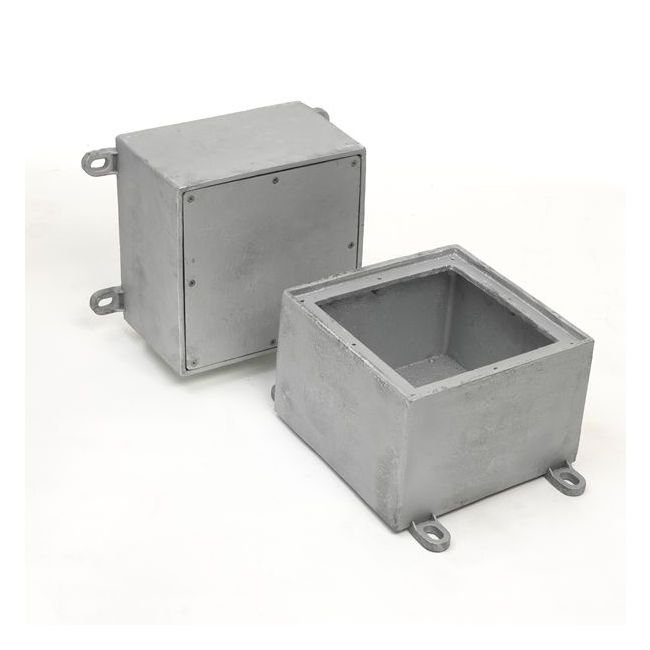

H6200 Internal Recess Flanged Box
H6200 Internal Recess Flanged Box
SKU:H62-221f59
Durable H6200 Internal Recess Flanged Box with flexible mounting, NEMA-rated, and customizable extras.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
H6200 Internal Recess Flanged Box
$39.99
Quantity: 1
Claim Your Seller Account
H6200 Internal Recess Flanged Box
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The H6200 Internal Recess Flanged Box offers versatile mounting options - flush or surface - making it suitable for various applications. Constructed from durable cast aluminum, this box meets NEMA 4 and NEMA 3R standards, ensuring protection in different environments. Featuring stainless steel machine screws and a neoprene gasket, this box is designed for durability and security. Customize with extras like drilling, tapping, bosses, and special gaskets to tailor it to your specific needs. With the option to convert to cast aluminum, this box provides flexibility and reliability for your electrical enclosure requirements.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Approx Wall Thickness
1/4 in.
Specifications Approx Weight
2.24 lbs
Specifications Construction
Cast Aluminum
Specifications Holes Can Be Boss Drilled And Tapped

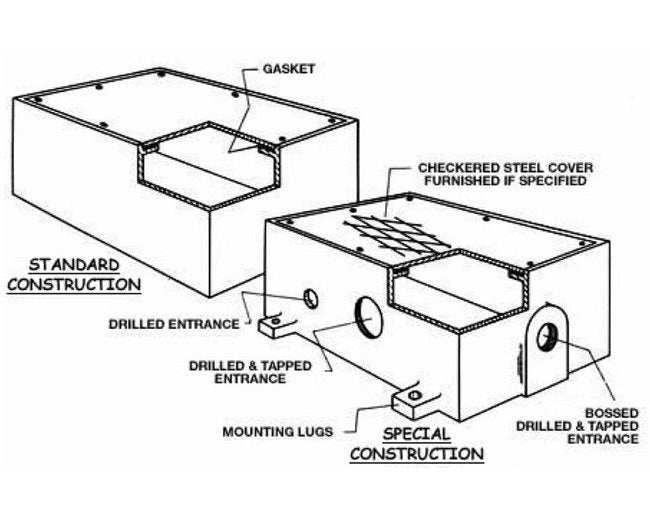

Holes can be boss, drilled and tapped by Hope Electrical Products at additional cost. Please mark up the hole locations on the attached drilling template and submit with your order to request for quote.
Specifications Inside Depth
2 in.
Specifications Inside Length
4 in.
Specifications Inside Width
4 in.
Specifications Mounting
Flush | Surface
Specifications Options
Galvanized checkered steel covers
Specifications Stock Note
If you donât see a box size listed that you need, please inquire - we may have it. This list does not represent all of our boxes.
Specifications Type
H6200
