H6200 Type Internal Recess Flanged Box - Cast Aluminum
H6200 Type Internal Recess Flanged Box - Cast Aluminum
SKU:H62-d4616d
Durable H6200 Type Internal Recess Flanged Box in cast aluminum, NEMA 4 and NEMA 3R compliant, with customizable options for security and versatility.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
H6200 Type Internal Recess Flanged Box - Cast Aluminum
$79.99
Quantity: 1
Claim Your Seller Account
H6200 Type Internal Recess Flanged Box - Cast Aluminum
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

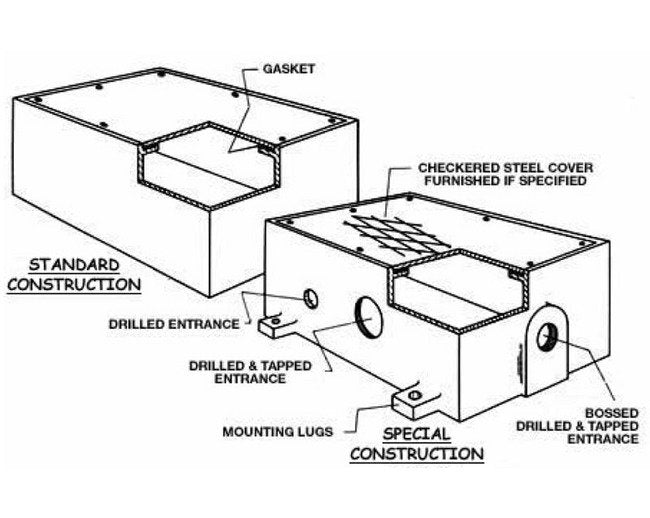

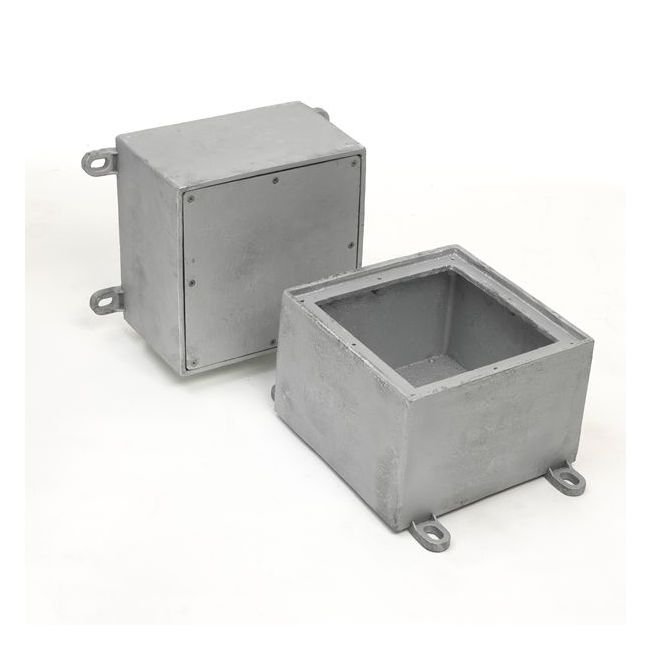

The H6200 Type Internal Recess Flanged Box is a durable and versatile solution suitable for both flush mounting in concrete and surface mounting applications. Constructed from cast aluminum, this box is rugged and reliable, meeting NEMA 4 and NEMA 3R standards as well as U/L Std. 50 requirements. Featuring stainless steel machine screws and a neoprene gasket, it ensures a secure and weather-resistant enclosure. This box offers customizable options including galvanized checkered steel covers, drilling and tapping services, mounting lugs, and more, making it adaptable to various needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Approx Wall Thickness
1/4 in.
Specifications Approx Weight
4.83 lbs
Specifications Construction
Cast Aluminum
Specifications Holes Can Be Boss Drilled And Tapped
Holes can be boss, drilled and tapped by Hope Electrical Products at additional cost. Please mark up the hole locations on the attached drilling template and submit with your order to request for quote.
Specifications Inside Depth
4 in.
Specifications Inside Length
8 in.
Specifications Inside Width
4 in.
Specifications Mounting
Flush | Surface
Specifications Options
Galvanized checkered steel covers
Specifications Stock Note
If you donât see a box size listed that you need, please inquire - we may have it. This list does not represent all of our boxes.
Specifications Type
H6200
