H6200 Type Internal Recess Flanged Box - Cast Aluminum
H6200 Type Internal Recess Flanged Box - Cast Aluminum
SKU:H62-746701
Durable H6200 Type Internal Recess Flanged Box in cast aluminum, NEMA 4/3R compliant, ideal for flush/surface mounting.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
H6200 Type Internal Recess Flanged Box - Cast Aluminum
$89.99
Quantity: 1
Claim Your Seller Account
H6200 Type Internal Recess Flanged Box - Cast Aluminum
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

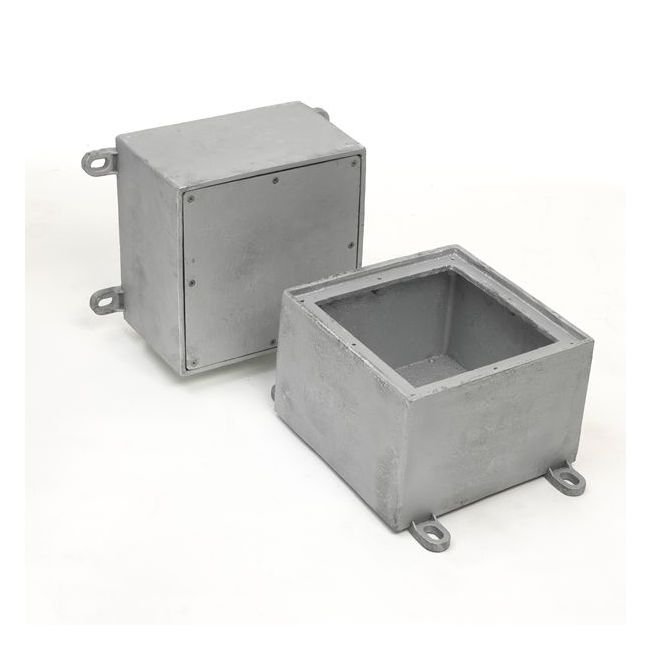

The H6200 Type Internal Recess Flanged Box is a durable solution suitable for flush mounting in concrete or surface mounting applications, meeting NEMA 4 and NEMA 3R standards. Constructed from robust cast aluminum with stainless steel machine screws and a neoprene gasket, this box ensures superior protection and longevity. Available extras include various customization options to meet specific requirements. With an inside length, width, and depth of 8 inches, approximate weight of 11.38 lbs, and 1/4-inch wall thickness, this box offers reliability and versatility for various installations.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Approx Wall Thickness
1/4 in.
Specifications Approx Weight
11.38 lbs
Specifications Construction
Cast Aluminum

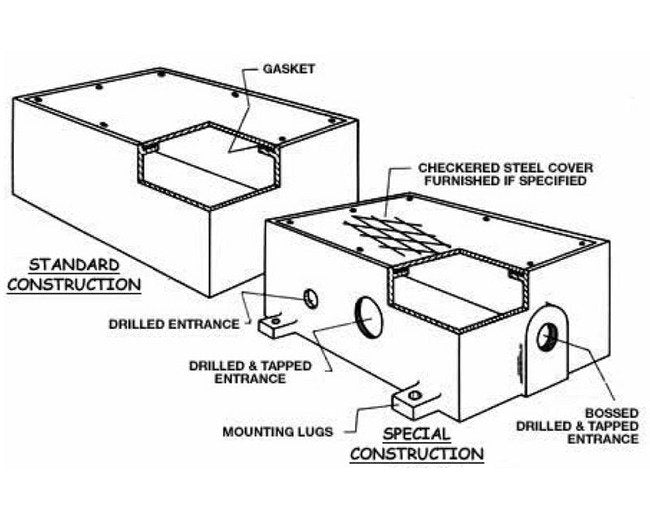

Specifications Holes Can Be Boss Drilled And Tapped
Holes can be boss, drilled and tapped by Hope Electrical Products at additional cost. Please mark up the hole locations on the attached drilling template and submit with your order to request for quote.
Specifications Inside Depth
8 in.
Specifications Inside Length
8 in.
Specifications Inside Width
8 in.
Specifications Mounting
Flush | Surface
Specifications Options
Galvanized checkered steel covers
Specifications Stock Note
If you donât see a box size listed that you need, please inquire - we may have it. This list does not represent all of our boxes.
Specifications Type
H6200
