HA & HW Hand Winches - 2000 lb Capacity Manual Winch Set
HA & HW Hand Winches - 2000 lb Capacity Manual Winch Set
SKU:RIG-800695
Experience the lightest and most efficient hand hoisting power with HA & HW Hand Winches. Ideal for rugged use. 2000 lb capacity, 38:1 gear ratio.
Regular price
$359.99
Regular price
Sale price
$359.99
Unit price
per
Initiate Order
HA & HW Hand Winches - 2000 lb Capacity Manual Winch Set
$359.99
Quantity: 1
Claim Your Seller Account
HA & HW Hand Winches - 2000 lb Capacity Manual Winch Set
$359.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

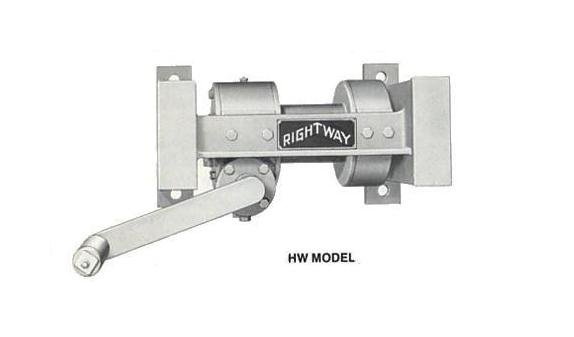

The Model HA & Model HW Hand Winches are designed to provide the lightest and most efficient hand hoisting power available on the market. With a compact design and a self-locking worm gear reduction system operating in an oil bath, these winches are ideal for locations where space is limited. Featuring a 2000 lb capacity, 38:1 gear ratio, and a weather-resistant construction, these winches are perfect for rugged use. Their dimensions, wire rope size, and drum capacity make them versatile for various lifting applications. Upgrade your lifting operations with the HA & HW Hand Winches.
Product Specifications

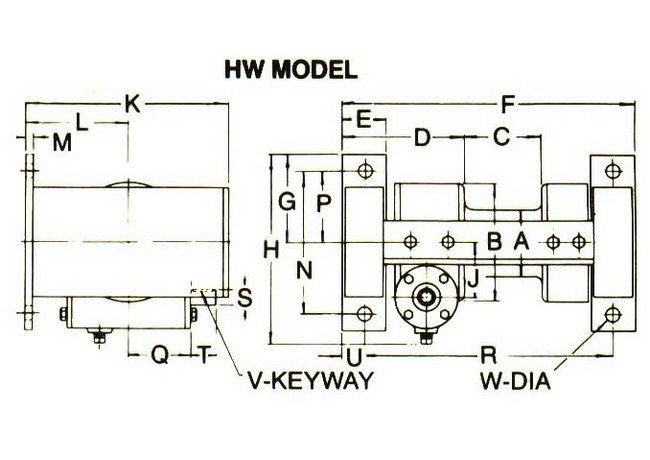

Specifications Capacity
2000 lbs.
Specifications Dimension A
3 inches
Specifications Dimension C
3 1/2 inches
Specifications Dimension D
5 5/8 inches
Specifications Dimension F
14 inches
Specifications Dimension G
4 inches
Specifications Dimension K
9 3/8 inches
Specifications Dimension L
4 3/4 inches
Specifications Dimension N
6 1/2 inches
Specifications Dimension P
3 1/4 inches
Specifications Dimension Q
2 7/8 inches
Specifications Dimension R
12 inches
Specifications Dimension W
21/32 inches
Specifications Drum Diameter
3 inches
Specifications Drum Length
3 1/2 inches
Specifications Gear Ratio
38:1
Specifications Hand Pull
25 lbs.
Specifications Net Weight
40 lbs.
Specifications Wire Rope Drum Capacity
78 ft.
Specifications Wire Rope Size
1/4 inches
Standard Features 0
Lightest, most efficient - hand hoisting power available. the light weight and compact design of the HA and HW models make it possible to mount and use these winches in many locations where limited space will not permit use of larger winches. Self-locking worm gear reduction -operating in an oil bath. All weather use - is ideal for rugged model ha and model hw winches.
