HA & HW Hand Winches 4000 lbs.
HA & HW Hand Winches 4000 lbs.
SKU:RIG-3880bd
Get the lightest & most efficient hand winches with clutch for quick wire rope handling. Perfect for all-weather use.
Regular price
$329.99
Regular price
Sale price
$329.99
Unit price
per
Initiate Order
HA & HW Hand Winches 4000 lbs.
$329.99
Quantity: 1
Claim Your Seller Account
HA & HW Hand Winches 4000 lbs.
$329.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

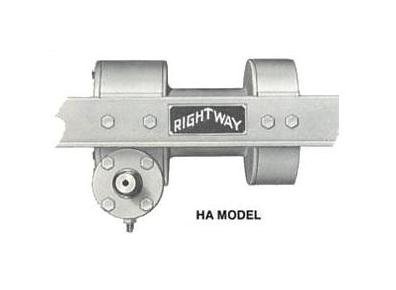

The Model HA & Model HW Hand Winches feature a clutch for quick wire rope deployment. With a capacity of 4000 lbs. and a self-locking worm gear reduction system in an oil bath, these winches are not only the lightest and most efficient hand hoisting power available but also suitable for all-weather use. Their compact design allows for versatile mounting in limited space environments, making them ideal for various applications in different settings.

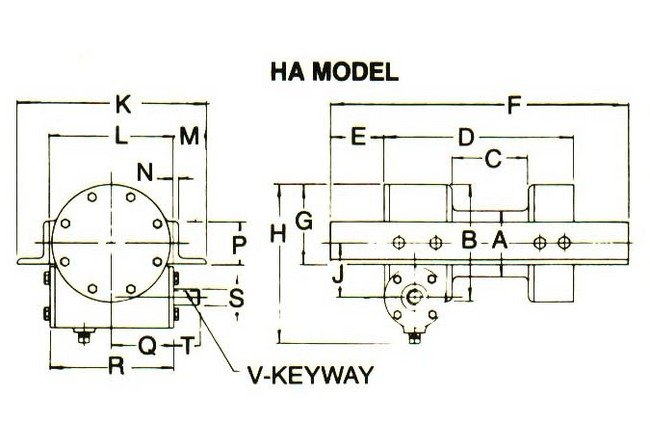

Product Specifications
Specifications Capacity
4000 lbs.
Specifications Dimension A
3 1/2 inches
Specifications Dimension C
11 5/16 inches
Specifications Dimension D
19 1/2 inches
Specifications Dimension F
36 inches
Specifications Dimension G
6 1/2 inches
Specifications Dimension K
11 7/6 inches
Specifications Dimension L
7 7/16 inches
Specifications Dimension N
3/16 inches
Specifications Dimension P
2 1/2 inches
Specifications Dimension Q
3 5/16 inches
Specifications Dimension R
6 5/8 inches
Specifications Drum Diameter
3 1/2 inches
Specifications Drum Length
8 inches
Specifications Gear Ratio
60:1
Specifications Hand Pull
40 lbs.
Specifications Net Weight
80 lbs.
Specifications Wire Rope Drum Capacity
175 ft.
Specifications Wire Rope Size
3/8 inches
Standard Features 0
Lightest, most efficient - hand hoisting power available. the light weight and compact design of the HA and HW models make it possible to mount and use these winches in many locations where limited space will not permit use of larger winches. Self-locking worm gear reduction -operating in an oil bath. All weather use - is ideal for rugged model ha and model hw winches.
