HA & HW Hand Winches - 4000 lbs. Capacity
HA & HW Hand Winches - 4000 lbs. Capacity
SKU:RIG-79e2bc
Experience powerful and compact hand winches with 4000 lbs. capacity, ideal for various applications.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
HA & HW Hand Winches - 4000 lbs. Capacity
$349.99
Quantity: 1
Claim Your Seller Account
HA & HW Hand Winches - 4000 lbs. Capacity
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

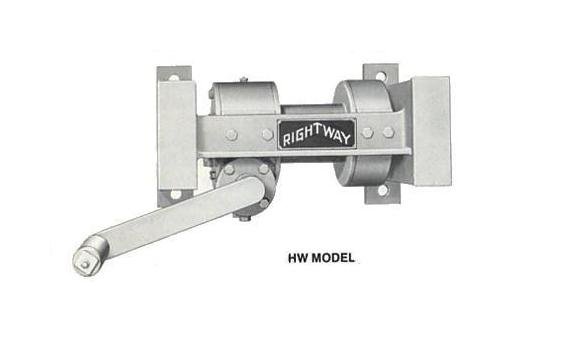

The HA & HW Hand Winches offer exceptional hand hoisting power with a clutch for quick wire rope deployment. Featuring a self-locking worm gear in an oil bath, these winches are compact, weather-resistant, and ideal for rugged use. With a 4000 lbs. capacity and a gear ratio of 60:1, they are perfect for various applications requiring efficient manual winching.
Product Specifications
Specifications Capacity
4000 lbs.

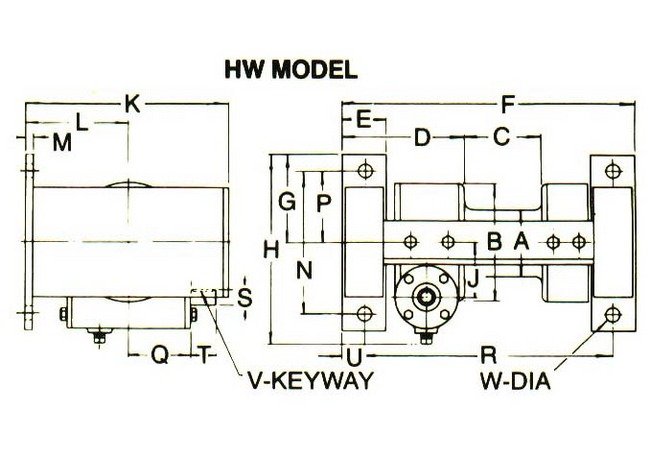

Specifications Dimension A
3 1/2 inches
Specifications Dimension C
11 5/16 inches
Specifications Dimension D
7 3/4 inches
Specifications Dimension F
26 1/2 inches
Specifications Dimension G
5 inches
Specifications Dimension K
12 7/8 inches
Specifications Dimension L
6 5/8 inches
Specifications Dimension N
8 inches
Specifications Dimension P
4 inches
Specifications Dimension Q
3 5/16 inches
Specifications Dimension R
23 1/2 inches
Specifications Dimension W
25/32 inches
Specifications Drum Diameter
3 1/2 inches
Specifications Drum Length
8 inches
Specifications Gear Ratio
60:1
Specifications Hand Pull
40 lbs.
Specifications Net Weight
85 lbs.
Specifications Wire Rope Drum Capacity
175 ft.
Specifications Wire Rope Size
3/8 inches
Standard Features 0
Lightest, most efficient - hand hoisting power available. the light weight and compact design of the HA and HW models make it possible to mount and use these winches in many locations where limited space will not permit use of larger winches. Self-locking worm gear reduction -operating in an oil bath. All weather use - is ideal for rugged model ha and model hw winches.
