HA & HW Manual Hand Winches
HA & HW Manual Hand Winches
SKU:RIG-7212fb
Experience unmatched hand hoisting power with the HA & HW Manual Hand Winches. Compact, weather-resistant, and efficient - perfect for any space.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
HA & HW Manual Hand Winches
$299.99
Quantity: 1
Claim Your Seller Account
HA & HW Manual Hand Winches
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

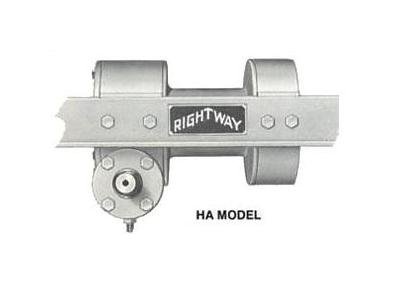

The HA & HW Manual Hand Winches are the pinnacle of hand hoisting power, offering unparalleled efficiency with a capacity of 2000 lbs. Featuring a compact and lightweight design, these winches are perfect for constrained spaces where larger winches won't fit. Equipped with a self-locking worm gear reduction system in an oil bath, these winches ensure secure and reliable operation in all weather conditions. With precise specifications and a net weight of 26 lbs, the HA & HW winches are engineered for durability and performance, making them an ideal choice for a wide range of applications.

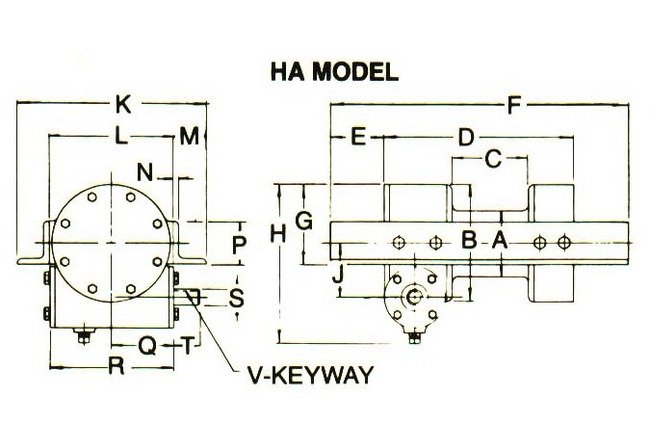

Product Specifications
Specifications Capacity
2000 lbs.
Specifications Dimension A
3 inches
Specifications Dimension C
3 1/2 inches
Specifications Dimension D
8 3/4 inches
Specifications Dimension F
12 inches
Specifications Dimension G
3 3/4 inches
Specifications Dimension K
8 3/4 inches
Specifications Dimension L
5 3/4 inches
Specifications Dimension N
3/16 inches
Specifications Dimension P
2 inches
Specifications Dimension Q
2 7/8 inches
Specifications Dimension R
5 3/4 inches
Specifications Drum Diameter
3 inches
Specifications Drum Length
3 1/2 inches
Specifications Gear Ratio
38:1
Specifications Hand Pull
25 lbs.
Specifications Net Weight
26 lbs.
Specifications Wire Rope Drum Capacity
78 ft.
Specifications Wire Rope Size
1/4 inches
Standard Features 0
Lightest, most efficient - hand hoisting power available. the light weight and compact design of the HA and HW models make it possible to mount and use these winches in many locations where limited space will not permit use of larger winches. Self-locking worm gear reduction -operating in an oil bath. All weather use - is ideal for rugged model ha and model hw winches.
