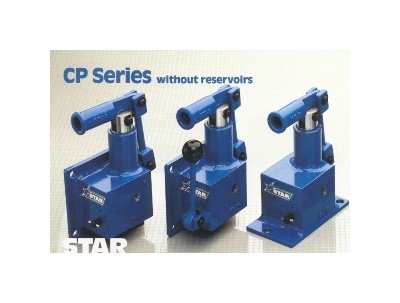

Hand Operated Hydraulic Pumps - Dual Speed Series (CPS-LR/PL & CP-LR/PL)
Hand Operated Hydraulic Pumps - Dual Speed Series (CPS-LR/PL & CP-LR/PL)
SKU:HYD-2202bc
Efficient & reliable Hand Operated Hydraulic Pumps for optimal power delivery and performance. Base/flange mounted, dual-speed with overload relief valve.
Regular price
$723.00
Regular price
Sale price
$723.00
Unit price
per
Initiate Order
Hand Operated Hydraulic Pumps - Dual Speed Series (CPS-LR/PL & CP-LR/PL)
$723.00
Quantity: 1
Claim Your Seller Account
Hand Operated Hydraulic Pumps - Dual Speed Series (CPS-LR/PL & CP-LR/PL)
$723.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience efficient power delivery with our Hand Operated Hydraulic Pumps - Dual Speed Series. These pumps provide rapid movement at low pressure and automatic switch to high pressure for maximum force. With features like adjustable overload relief valve, steel pump bodies, and hard chrome plated pistons, these pumps are designed for durability and optimal performance. Ideal for equipment with built-in reservoirs, these pumps offer base or flange mounting options. Make your operations smoother and more precise with our reliable hydraulic pumps.
Product Specifications
Specifications Adjustable Overload Relief Valve
Yes
Specifications Body Material
Steel
Specifications Inlet Port Size Nptf
3/8
Specifications Lever Load Per 1000 Psi
12.0 lb
Specifications List Price
723 USD
Specifications Manual Pressure Release Valve
Yes
Specifications Maximum Pressure Rating
10000 psi
Specifications Mounting
Base Mounted
Specifications Net Weight
23 lb
Specifications Oil Reservoir
false
Specifications Operating Lever Size
24 in
Specifications Outlet Port Size Nptf
3/8
Specifications Piston
Hard Chrome Plated
Specifications Piston Diameter
1 1/2-1/2 in
Specifications Release
Screw Release
Specifications Series
CP-LR
Specifications Volume Per Stroke Large Piston To 300 Psi Approx
2.65 in³
Specifications Volume Per Stroke Small Piston Above 300 Psi Appr
0.29 in³
Technical Information 0
Limited WarrantyAll Star pumps are covered by a limited warranty on materials and workmanship for one year from the date of manufacture. Star will repair or replace at its option any pump in which Star finds manufacturing defects. In order to get warranty service a pump must be returned to the Star plant freight prepaid with a written explanation of the problem.Technical DataLight hydraulic oil is recommended for use with Star pumps. Oils with SUS viscosity of 75 to 150 at 100 degrees Fahrenheit will give satisfactory performance (ISO grade 15, 22, or 32). In an emergency situation when the above oils are not available, use 5 W or 10 W motor oil or automatic transmission fluid.All exposed surfaces of standard Star pumps are painted with one coat of industrial quality paint. Pumps painted with special colors with two coat finishes, or with prime coat only, and pumps with special plated or polished parts, are also available.
