Hand Operated Hydraulic Pumps - P-PL Series
Hand Operated Hydraulic Pumps - P-PL Series
SKU:HYD-9d3847
High-performance Hand Operated Hydraulic Pumps for industrial applications. Adjustable overload and manual pressure release valves. Up to 10,000 PSI pressure capacity.
Regular price
$671.00
Regular price
Sale price
$671.00
Unit price
per
Initiate Order
Hand Operated Hydraulic Pumps - P-PL Series
$671.00
Quantity: 1
Claim Your Seller Account
Hand Operated Hydraulic Pumps - P-PL Series
$671.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

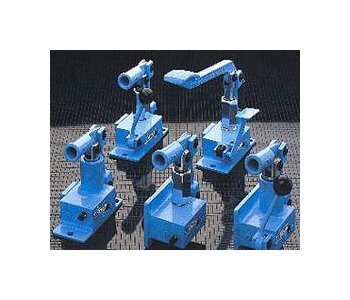

The Hand Operated Hydraulic Pumps - P-PL Series without Reservoirs are heavy-duty, versatile manual pumps designed for use with hydraulic systems featuring built-in reservoirs. These single-piston pumps, available in both base and flange mount options, come equipped with adjustable overload valves and manual pressure release valves. With a pressure capacity of up to 10,000 PSI, these pumps offer reliability and precision in developing or increasing hydraulic pressure. Options include hand or foot-operated models, stainless steel versions, and 4-way valve configurations, catering to a wide range of industrial applications. The Piston is ground and hard chrome plated, ensuring durability and efficiency under demanding conditions.
Product Specifications
Specifications Adjustable Overload Relief Valve
Yes
Specifications Body Material
Steel
Specifications Inlet Port Size Nptf
3/8
Specifications Lever Load Per 100 Psi
11.0 lb
Specifications List Price
671 USD
Specifications Manual Pressure Release Valve
Yes
Specifications Maximum Pressure Rating
1000 psi
Specifications Mounting
Flange Mounted
Specifications Net Weight
16 lb
Specifications Oil Reservoir
false
Specifications Operating Lever Size
24 in
Specifications Outlet Port Size Nptf
3/8
Specifications Piston
Hard Chrome Plated
Specifications Piston Diameter
1 1/2 in
Specifications Release
Cam Release
Specifications Series
P-PL
Specifications Volume Per Stroke
2.65 in³
Technical Information 0
Limited WarrantyAll Star pumps are covered by a limited warranty on materials and workmanship for one year from the date of manufacture. Star will repair or replace at its option any pump in which Star finds manufacturing defects. In order to get warranty service a pump must be returned to the Star plant freight prepaid with a written explanation of the problem.Technical DataLight hydraulic oil is recommended for use with Star pumps. Oils with SUS viscosity of 75 to 150 at 100 degrees Fahrenheit will give satisfactory performance (ISO grade 15, 22, or 32). In an emergency situation when the above oils are not available, use 5 W or 10 W motor oil or automatic transmission fluid.All exposed surfaces of standard Star pumps are painted with one coat of industrial quality paint. Pumps painted with special colors with two coat finishes, or with prime coat only, and pumps with special plated or polished parts, are also available.
