Hankison® 12 kW Heat Rated Output Air Dryer - HBP Series
Hankison® 12 kW Heat Rated Output Air Dryer - HBP Series
SKU:DES-32370e
Efficient and reliable 12 kW Heat Rated Air Dryer - Perfect for demanding applications!
Regular price
$8,999.99
Regular price
Sale price
$8,999.99
Unit price
per
Initiate Order
Hankison® 12 kW Heat Rated Output Air Dryer - HBP Series
$8,999.99
Quantity: 1
Claim Your Seller Account
Hankison® 12 kW Heat Rated Output Air Dryer - HBP Series
$8,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

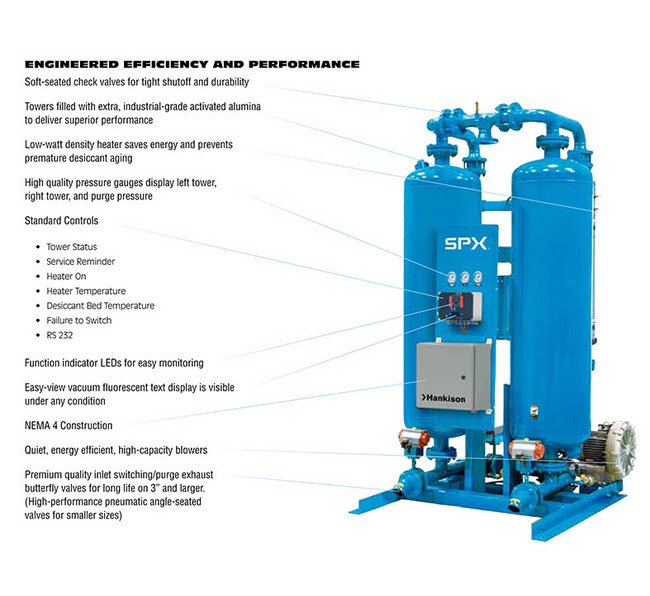

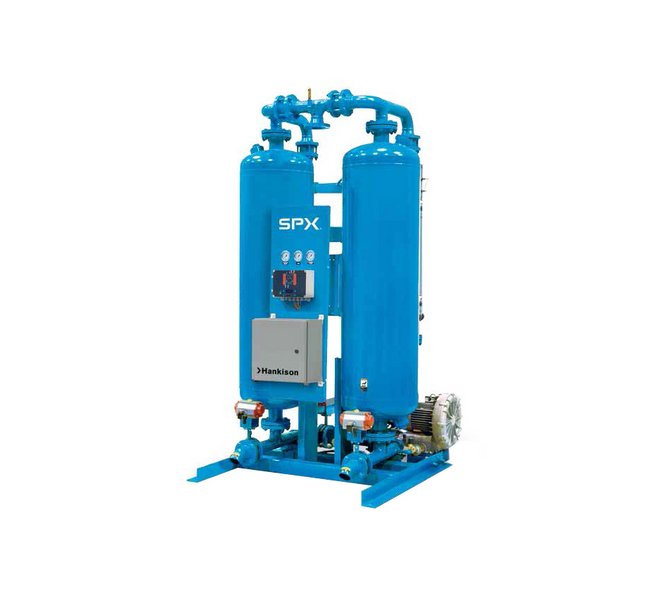

The Hankison® HBP Series Blower Purge Desiccant Compressed Air Dryer delivers 100% efficient air systems, ensuring top-tier compressed air treatment solutions since 1948. Engineered for excellence, it features soft-seated check valves, industrial-grade activated alumina, and a low-watt density heater for energy savings. With a high-capacity blower, premium quality butterfly valves, and NEMA 4 construction, this dryer excels in performance and durability. Meeting ISO 8573.1 Class 2 standards, it guarantees optimal dew point performance for critical applications, making it a top choice for institutional buyers seeking efficiency and reliability.
Product Specifications
Additional Information

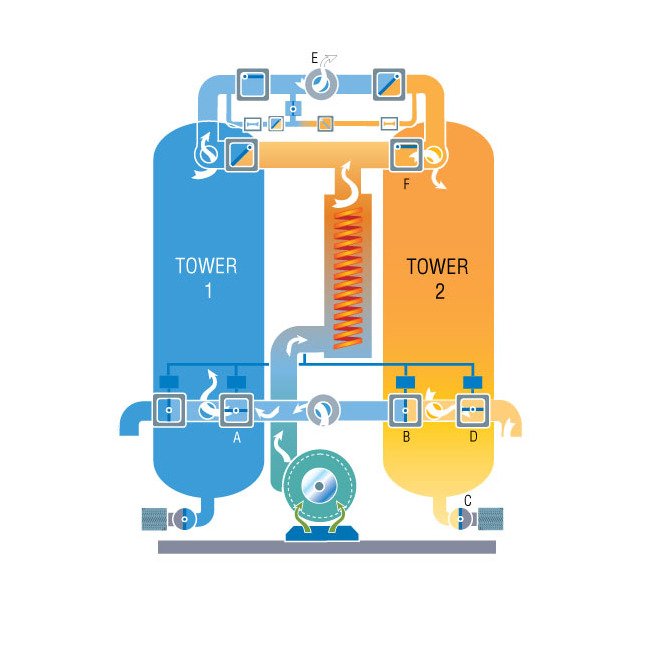

HBP Series dryers improve air system efficiency by the use of a dedicated axial blower, instead of a percentage of dehydrated purge air, to regenerate the off-line desiccant tower. ISO 8573.1 Class 2 (-40 ºF/-40 ºC) dew point performance is guaranteed.
Demand Side Impact On Supply Side Dryer Types Air Compressor Nee
250 hp | 1250 scfm
Demand Side Impact On Supply Side Dryer Types Air Volume Require
1176 scfm
Demand Side Impact On Supply Side Dryer Types Compressed Purge A
24506 USD
Demand Side Impact On Supply Side Dryer Types Dryer Types
HBP Series Blower Purge | Heated Purge | Heatless

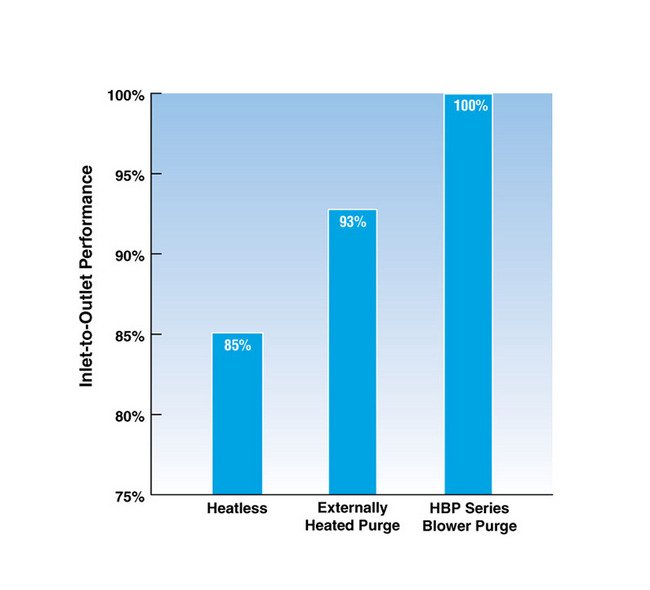

Demand Side Impact On Supply Side Dryer Types Efficiency For Hbp
100 %
Demand Side Impact On Supply Side Dryer Types Efficiency For Hea
85 %
Engineering Data Depth
71 in
Engineering Data Height
108 in
Engineering Data Width
55 in
Iso 85731 Quality Classes Maximum Number Of Solid Particles For
20000 m³
Iso 85731 Quality Classes Maximum Number Of Solid Particles Per
1
Product Features For Option A Model Of Controller Power Recovery
Automatic Restart after Power Loss
Product Features For Option B Model Of Controller Power Recovery
Automatic Restart after Power Loss
Product Features For Standard Model Of Controller Power Recovery
Automatic Restart after Power Loss
Specifications Inlet Connection Size
2 in
Specifications Outlet Connection Size
2 in
