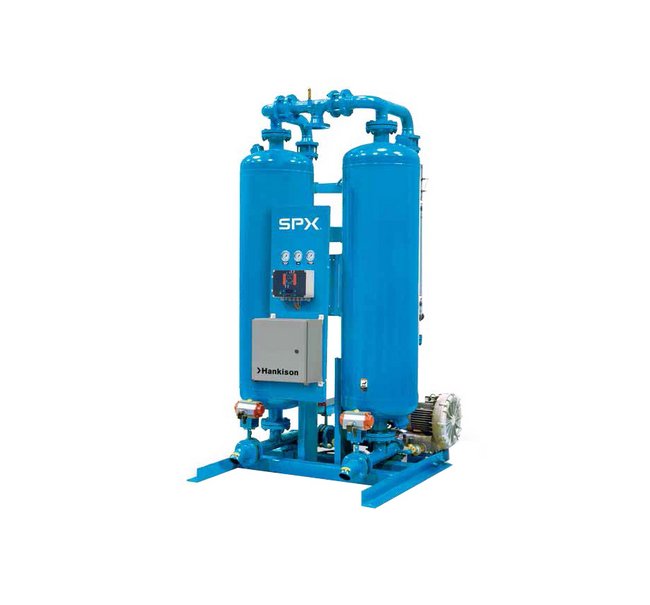

Hankison® HBP Series 58 kW Heat Rated Output Compressed Air Dryer
Hankison® HBP Series 58 kW Heat Rated Output Compressed Air Dryer
SKU:DES-138338
Enhance air system efficiency with the Hankison® HBP Series 58 kW Heat Rated Compressed Air Dryer, guaranteed ISO Class 2 dew point performance!
Regular price
$18,999.99
Regular price
Sale price
$18,999.99
Unit price
per
Initiate Order
Hankison® HBP Series 58 kW Heat Rated Output Compressed Air Dryer
$18,999.99
Quantity: 1
Claim Your Seller Account
Hankison® HBP Series 58 kW Heat Rated Output Compressed Air Dryer
$18,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

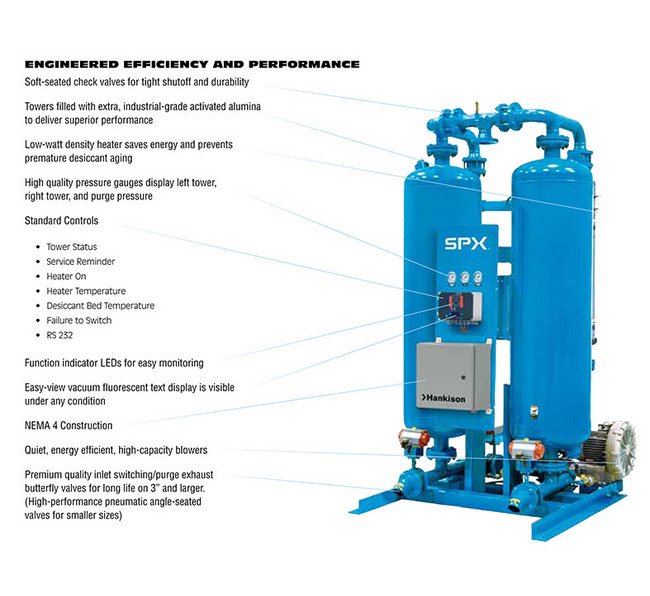

The Hankison® HBP Series 58 kW Heat Rated Output Compressed Air Dryer is a top choice for compressed air treatment solutions. With a 100% efficient air system, this dryer guarantees ISO Class 2 (-40 ºF/-40 ºC) dew point performance, meeting the highest quality standards. Featuring a high-quality blower, low-watt density heater, and premium controls, it ensures superior performance and energy savings. Engineered for durability and efficiency, this dryer optimizes air system operation, reduces energy consumption, and eliminates costly air loss, making it ideal for industrial and institutional use.
Product Specifications
Additional Information

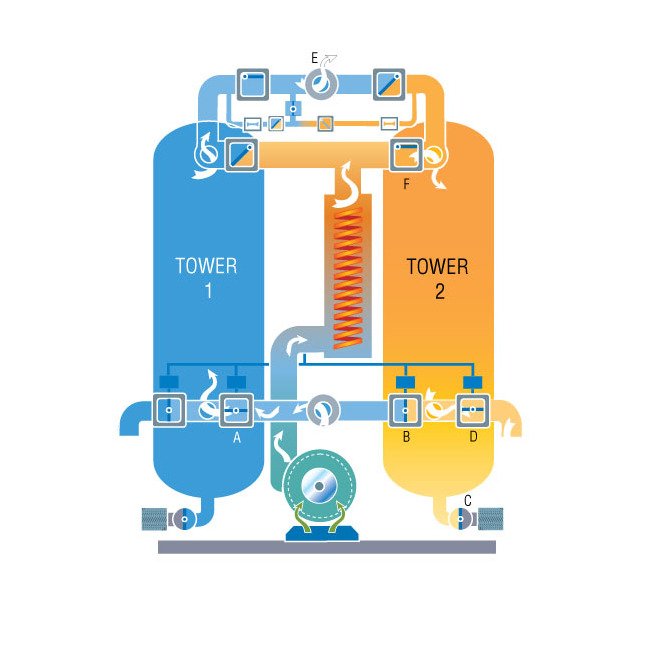

HBP Series dryers improve air system efficiency by the use of a dedicated axial blower, instead of a percentage of dehydrated purge air, to regenerate the off-line desiccant tower. ISO 8573.1 Class 2 (-40 ºF/-40 ºC) dew point performance is guaranteed.
Demand Side Impact On Supply Side Dryer Types Air Compressor Nee
250 hp | 1250 scfm
Demand Side Impact On Supply Side Dryer Types Air Volume Require
1176 scfm
Demand Side Impact On Supply Side Dryer Types Compressed Purge A
24506 USD
Demand Side Impact On Supply Side Dryer Types Dryer Types
HBP Series Blower Purge | Heated Purge | Heatless

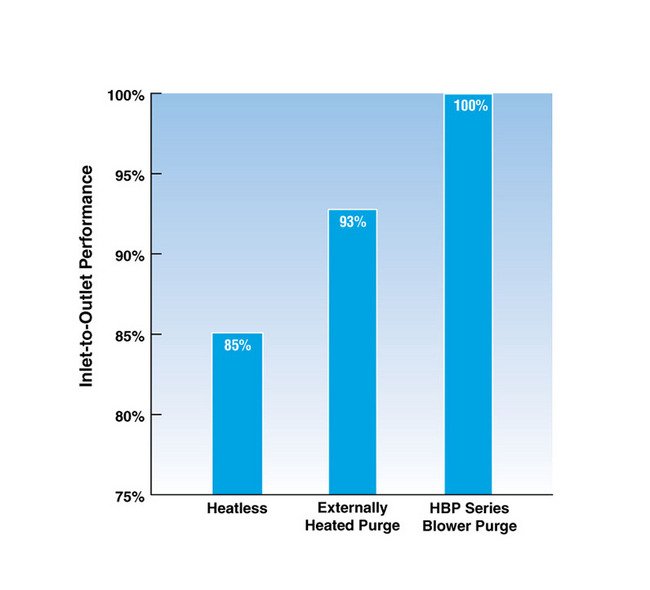

Demand Side Impact On Supply Side Dryer Types Efficiency For Hbp
100 %
Demand Side Impact On Supply Side Dryer Types Efficiency For Hea
85 %
Engineering Data Depth
117 in
Engineering Data Height
128 in
Engineering Data Width
97 in
Iso 85731 Quality Classes Maximum Number Of Solid Particles For
20000 m³
Iso 85731 Quality Classes Maximum Number Of Solid Particles Per
1
Product Features For Option A Model Of Controller Power Recovery
Automatic Restart after Power Loss
Product Features For Option B Model Of Controller Power Recovery
Automatic Restart after Power Loss
Product Features For Standard Model Of Controller Power Recovery
Automatic Restart after Power Loss
Specifications Inlet Connection Size
6 in
Specifications Outlet Connection Size
6 in
