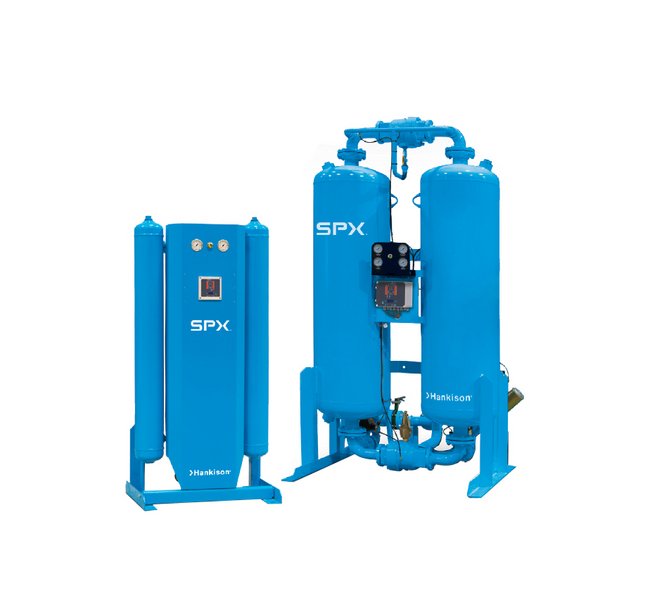

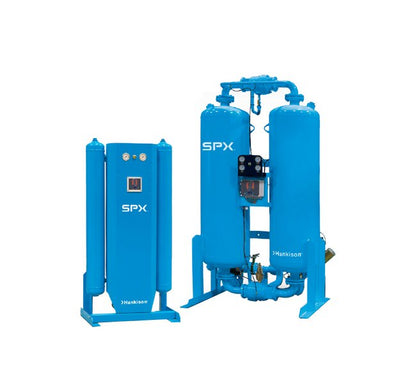

Hankison® HHS Series 3000 scfm Heatless Desiccant Air Dryer
Hankison® HHS Series 3000 scfm Heatless Desiccant Air Dryer
SKU:DES-1d09c1
Efficient Hankison® HHS Series Heatless Desiccant Air Dryer with SensaTherm® and integrated filtration for clean output.
Regular price
$14,799.99
Regular price
Sale price
$14,799.99
Unit price
per
Initiate Order
Hankison® HHS Series 3000 scfm Heatless Desiccant Air Dryer
$14,799.99
Quantity: 1
Claim Your Seller Account
Hankison® HHS Series 3000 scfm Heatless Desiccant Air Dryer
$14,799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Hankison® HHS Series Heatless Desiccant Air Dryer offers precision performance and automatic energy savings. With features like SensaTherm® technology for optimized drying, integrated filtration for clean air output, and application-specific designs for various industries, this dryer ensures consistent dew points and efficient operation. Engineered-to-order options like dew point monitors and safety features meet the highest quality standards, making it an ideal choice for pharmaceutical, electronics, and food packaging applications.
Product Specifications
Advantages
Temperature transducers (thermistors) are used as sensing devices. They are simpler, more reliable and rugged than those others use.Sensors require no calibration.The system is based on saving the heat of adsorption, towers switch before heat's lost maximizing purge air efficiency and minimizing the amount of purge air required.
Application Specific Designs How It Works
Phase 1 - Moist, filtered compressed air enters the pressurized on-line desiccant-filled drying Tower 1 through the AccuShift™ valve (A).Phase 2 - Up-flow drying enables the desiccant to strip the air stream of moisture. Clean, dry compressed air exits through AccuShift™ valve (B) to feed the air system.Phase 3 - When in regeneration mode, Tower 2 depressurizes to atmosphere through the muffler (C) when the valve (D) opens.Phase 4 - A portion of dry compressed air (purge air) is diverted before exiting (B) and passes through off-line Tower 2 and exits at valve (D) to desorb the moisture from the desiccant. Once desorbed, valve (D) closes and Tower 2 is repressurized.Phase 5 - At tower shift-over, valve (E) will open, causing AccuShift™ Valves (A & B) to shift.Phase 6 - Tower 2 will be placed on-line to dry the bed. Operations will switch and Tower 1 will be regenerated.

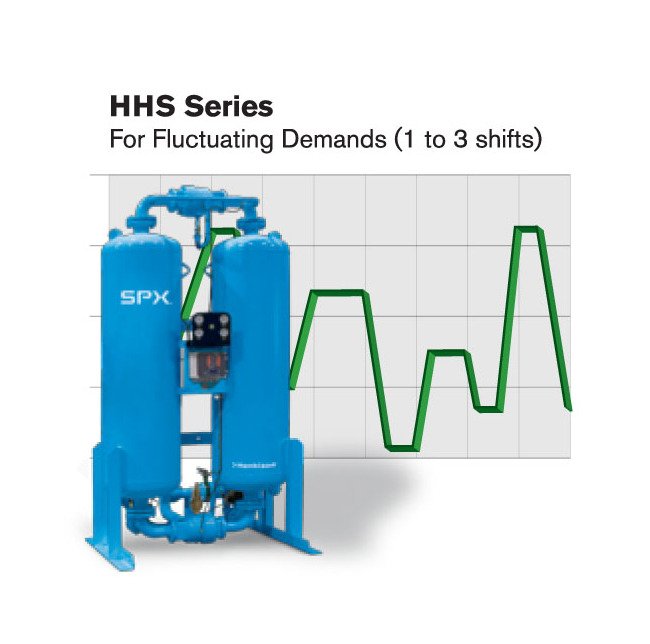

Application Specific Designs Match Performance By Demand
Three user selectable designs engineered to balance economy and performance.Ideal for applications that operate with a large swing in air demands due to variations in production scheduling or shifts of operation. Some applications operate at a fraction of the flow of the compressor due to air system efficiency improvements. Some applications operate continuously at-or-near full capacity.

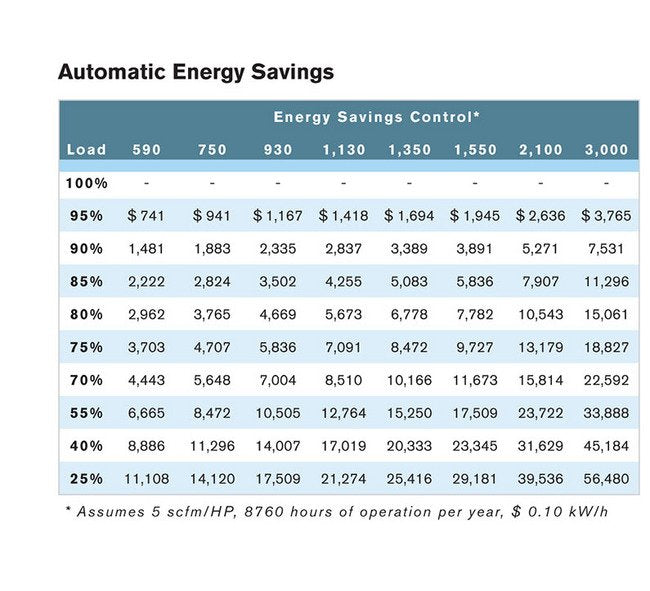

Automatic Energy Savings Energy Savings Control At Load 25
56480 USD
Automatic Energy Savings Energy Savings Control At Load 40
45184 USD
Automatic Energy Savings Energy Savings Control At Load 55
33888 USD
Automatic Energy Savings Energy Savings Control At Load 70
22592 USD
Automatic Energy Savings Energy Savings Control At Load 75
18827 USD
Automatic Energy Savings Energy Savings Control At Load 80
15061 USD
Automatic Energy Savings Energy Savings Control At Load 85
11296 USD
Automatic Energy Savings Energy Savings Control At Load 90
7531 USD
Automatic Energy Savings Energy Savings Control At Load 95
3765 USD

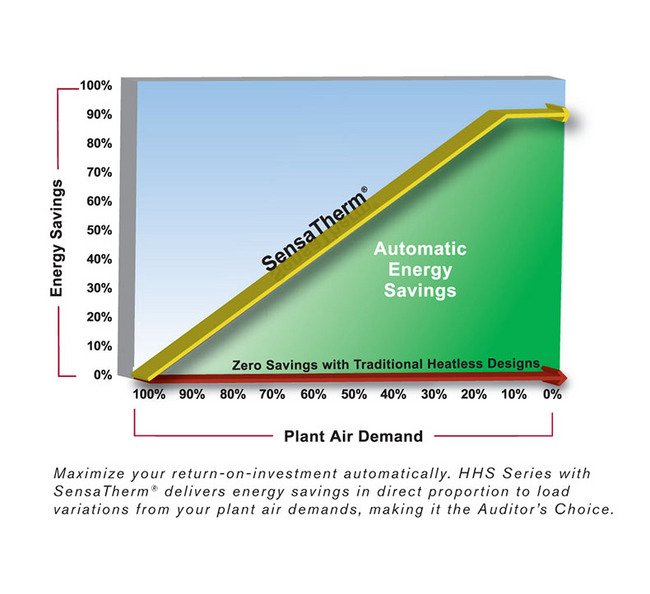

Automatic Sensatherm Energy Savings
Hankison®'s HHS Series with patented SensaTherm® automatically matches purge air to plant air demand. This ensures maximum performance as the saved energy goes right to your bottom line.When operating at reduced capacity, the on-line drying tower remains active longer, until its full drying capacity is utilized. Desiccant bed temperature changes are constantly monitored within each tower to precisely manage drying times and reduce purge air consumption.SensaTherm® also measures the increase in desiccant bed temperature (heat of adsorption) during the drying stage and the decrease in desiccant bed temperature (heat of desorption) during the regeneration stage. These temperature changes are accurate indicators of the moisture load on the dryer. This data is interpreted by microprocessor based controls to determine how long a tower stays on-line during the drying stage.

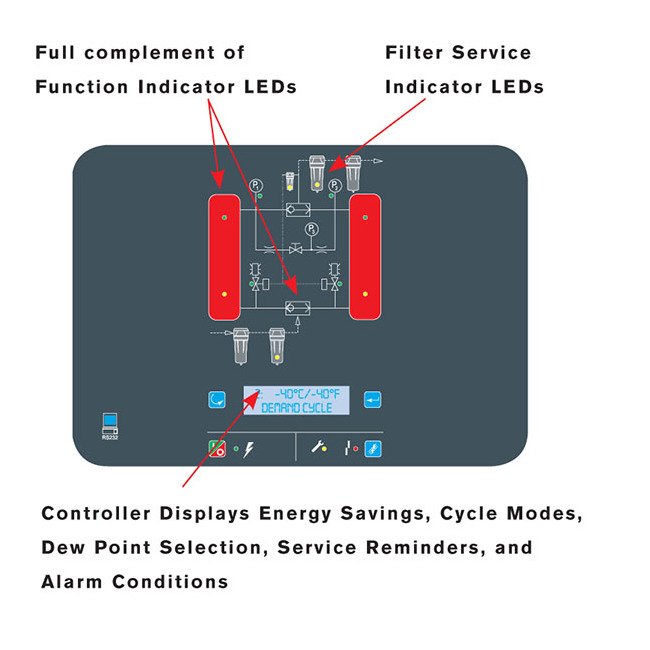

Controller Features
Choice of four operating modesSensaTherm® Demand modeSwitches for On/Off, Alarm and Service reminder resetOperational LED lights for power-on, tower status, valve status, and tower pressureService reminder LED lights for filters and drains, valves and desiccant. The user selects between a Normal and a Severe service intervalAlarm LED for tower switching failure, filter monitor signals, electronic demand drain alarms on filtersVacuum fluorescent text display communicates energy savings, operating mode and service remindersRS-232 communications port is standard
Dedicated To Excellence
Since 1948, compressed air users around the world have relied on Hankison® to provide innovative compressed air treatment solutions for critical applications.Hankison® maintains a long standing reputation for manufacturing products that deliver superior performance, time proven reliability and optimal energy savings.Hankison® today is the preferred choice for providing clean, dry compressed air for the most challenging industries.
Four Dew Point Options Per Iso 8573 1 Air Quality Standards
Specifying a pressure dew point is not simple work for an engineer. Hankison® Heatless dryer designs allow you to optimize performance and dew points in the field to adapt to your environment and meet the following ISO 8573-1 Classes of air quality.
Inlet Flow
Inlet flow capacities are established in accordance with CAGI (Compressed Air and Gas Institute) standard ADF-200: Inlet air pressure 100 psig (6.7 barg), inlet temperature saturated at 100 ºF (38 ºC). To determine inlet flow at pressures other than 100 psig (6.7 barg), multiply inlet flow at 100 psig (6.7 barg) from Product Specifications by the corresponding multiplier.
Iso 85731 Quality Classes Cycle Time For Iso Quality Class 1
4 min. Fixed
Iso 85731 Quality Classes Cycle Time For Iso Quality Class 2
10 min. Fixed | Demand
Iso 85731 Quality Classes Cycle Time For Iso Quality Class 3
16 min. Fixed | Demand
Iso 85731 Quality Classes Cycle Time For Iso Quality Class 4
24 min. Fixed | Demand
Iso 85731 Quality Classes Dew Point
-100 ºF | 38 ºF | -4 ºF | -40 ºF | -20 ºC | 3 ºC | -40 ºC | -73 ºC
Iso 85731 Quality Classes Remaining Moisture At Dew Point 100 F
0.12 ppmw | 0.15 mg/m³
Iso 85731 Quality Classes Remaining Moisture At Dew Point 38 F 3
610 ppmw | 730 mg/m³
Iso 85731 Quality Classes Remaining Moisture At Dew Point 40 F 4
10 ppmw | 12 mg/m³
Iso 85731 Quality Classes Remaining Moisture At Dew Point 4 F 20
81 ppmw | 97 mg/m³
Note
Dimensions and weights are for reference only. Request certified drawings for construction purposes.
Precision Performance Engineered To Order Options
High dew point alarm which includes light and voltage free contacts for remote alarmDew point monitor, includes digital display, voltage-free contacts and recorder outputLow ambient packages, epoxy paint, severe environment protectionOil-free packages with integrated activated carbon towers
Precision Performance Industry Leading Design
Consistent outlet pressure dew pointsPremium grade desiccant beads enhance surface area and have high crush strengthLarge desiccant beds ensure 4.8 seconds of contact timeLarge flow diffusers ensure even flow distribution through the bed and eliminate channelingTowers are designed to prevent fluidization of the desiccantUp-flow drying allows water and heavy contaminants to drop out of the air streamSimple discharge of contaminantsCleanable stainless steel flow diffusers/support screensSeparate fill and drain ports for ease of desiccant replacement
Precision Performance Integrated Filtration
Optional pre-filter and after-filter packages, featuring Hankison® NGF Series filters, can be pre-installed at theGrade SF and Grade HF pre-filters are recommended for -40 ºF to 38 ºF (-40 ºC to 3 ºC) dew pointsGrade PF and Grade UF pre-filters are recommended for -100 ºF (-73 ºC) dew pointsGrade PF and Grade CF are the recommended after-filters
Precision Performance Precision Accushift Switching Valves
Automatically shift to the low pressure side of the circuit to control process flowPosition memory ensures drying continues even without power5 year AccuShift™ valve replacement warranty (Dryer must be protected by properly sized Hankison® prefilter. Parts and labor covered through first year of warranty, parts only in second through fifth years.)Three-way pilot operated solenoid valves manage the pilot air flow to direct the purge/repressurization valvesPurge pressure adjustment valve
Specifications Available Voltage
100 to 240 V
Specifications Depth
65 in
Specifications Direct Current Dc Voltage
12 to 24 V
Specifications Height
122 in
Specifications Inlet Connection Size
4 in
Specifications Inlet Flow Capacity At 100 Psig 67 Bar Pressure
3000 scfm | 5097 nm³/h
Specifications Outlet Connection Size
4 in
Specifications Width
78 in
