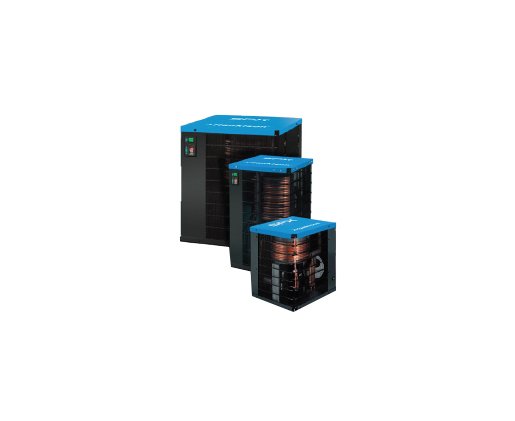

Hankison 0.46 kW Power HPR Value Series Refrigerated Compressed Air Dryer
Hankison 0.46 kW Power HPR Value Series Refrigerated Compressed Air Dryer
SKU:REF-19595a
Get reliable air treatment with the Hankison 0.46 kW Power HPR Value Series Refrigerated Compressed Air Dryer. ISO 8573-1 Air Quality Class 4-5 standards met.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
Hankison 0.46 kW Power HPR Value Series Refrigerated Compressed Air Dryer
$1,299.99
Quantity: 1
Claim Your Seller Account
Hankison 0.46 kW Power HPR Value Series Refrigerated Compressed Air Dryer
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Hankison 0.46 kW Power HPR Value Series Refrigerated Compressed Air Dryer is a reliable air treatment solution designed for efficiency and performance. With a rated flow of 35 scfm, R134a refrigerant, and meeting ISO 8573-1 Air Quality Class 4 to 5 standards, this dryer ensures high air quality. The smooth bore copper tube-on-tube heat exchangers provide low pressure dew point performance, while the centrifugal separator efficiently captures liquid condensate. It offers ease of monitoring, reliable condensate management, and is environmentally friendly with CFC-free refrigerant.
Product Specifications
Better By Design
Smooth bore, copper tube-on-tube heat exchangers deliver low pressure dew point performance.Centrifugal separator efficiently captures liquid condensate at varying inlet loads.Static condenser design - provides trouble free, quiet operation.
Ease Of Monitoring
Models 10 - 15 scfm : Lighted On/Off switch.Models 25 - 50 scfm : Lighted On/Off switch and dew point temperature indicator.
International Air Quality Class Standards Iso 8573 1 Air Quality

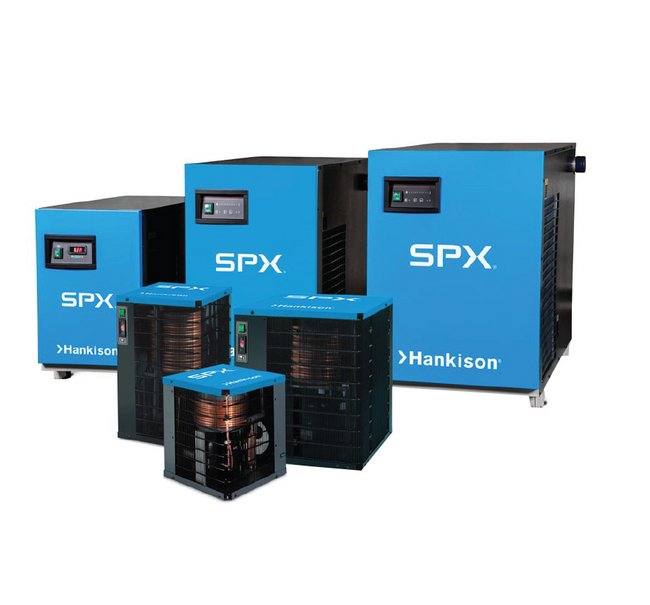

ISO 8573-1, the international standard for compressed air quality, defines the amount of contamination permissible in compressed air.The ISO standard identifies three primary forms of contamination in compressed air systems - solid particles, water and oil Contaminants are classified and assigned a quality class, ranging from Class 0, the highest purity level, to Class 6, the most relaxed.HPR and HPRN series refrigerated air dryers offer the perfect balance between technology and simplicity to dry compressed air systems to ISO 8573-1 Air Quality Class 4 to 5 - pressure dew points.
International Air Quality Class Standards Option After Filtratio
NGF series - HF grade filtration - provides high efficiency oil removal protecting downstream equipment .ISO Air Quality Class:Solids - Class 1Remaining Oil - Class1Removes 99.999+ % of solids ≥ 0.01 micronRemaining oil content < 0.01 mg/m3
International Air Quality Class Standards Option Pre Filtration
NGF series - PF grade filtration - removes solid and oil contaminants from the air stream before entering the dryer.ISO Air Quality Class:Solids - Class 2Remaining Oil - Class 4Removes solids 1.0 micron and largerRemaining oil content 2.0. mg/m³
Options

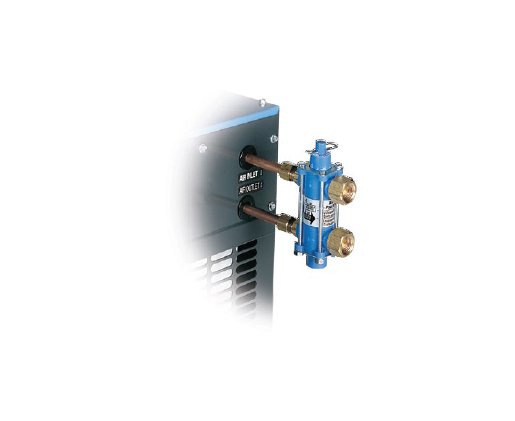

Air bypass valve allows ease of service.Wall mount bracket enables flexible installation.
Reliable Condensate Management

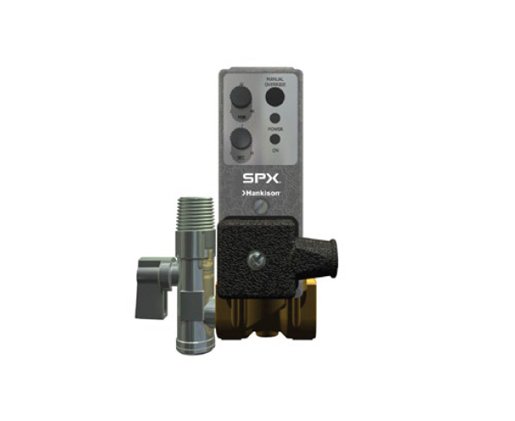

Models 10 - 15 scfm : Pneumatically operated internal float drain.Models 25 - 50 scfm : Electronic drain valve.
Safety First Environmental Friendly
CFC free R134a refrigerant.CSA approved.
Specifications Depth
15 in
Specifications Frequency
60 Hz
Specifications Height
22 in
Specifications Inlet Connection Size
3/4 in
Specifications Inlet Connection Type
NPT
Specifications Maximum Ambient Air Temperature
110 ºF | 43 ºC
Specifications Maximum Inlet Air Pressure
250 psig | 17 bar
Specifications Maximum Inlet Air Temperature
120 ºF | 49 ºC
Specifications Minimum Ambient Air Temperature
45 ºF | 7 ºC
Specifications Minimum Inlet Air Pressure
30 psig | 2 bar
Specifications Minimum Inlet Air Temperature
40 ºF | 4 ºC
Specifications Outlet Connection Size
3/4 in
Specifications Outlet Connection Type
NPT
Specifications Phase
1
Specifications Power
0.46 kW
Specifications Rated Flow
35 scfm | 59 m³/h
Specifications Refrigerant
R134a
Specifications Series
Hankison® | HRP | HRPN
Specifications Voltage
115 V
Specifications Weight
92 lb
Specifications Width
16 in
