Hankison 1.42 kW Power HPR Value Series Refrigerated Compressed Air Dryer
Hankison 1.42 kW Power HPR Value Series Refrigerated Compressed Air Dryer
SKU:REF-1c6c09
Reliable and efficient 1.42 kW refrigerated air dryer meeting ISO 8573-1 Air Quality Class 4 to 5 standards.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
Hankison 1.42 kW Power HPR Value Series Refrigerated Compressed Air Dryer
$2,899.99
Quantity: 1
Claim Your Seller Account
Hankison 1.42 kW Power HPR Value Series Refrigerated Compressed Air Dryer
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

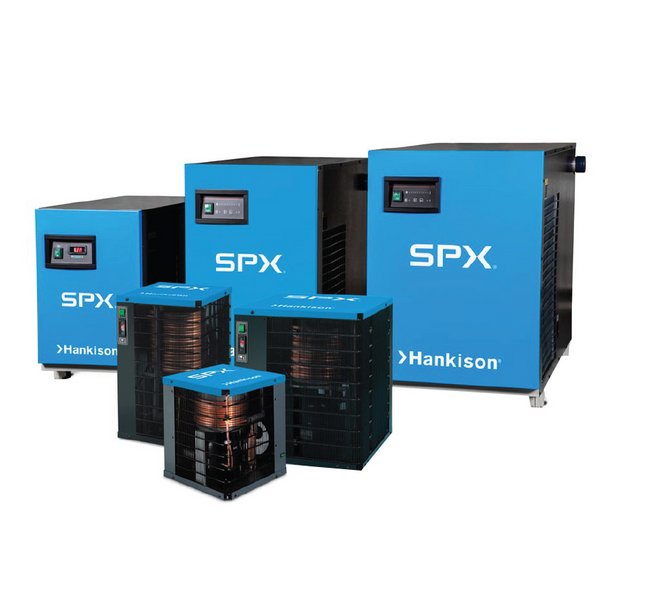

The Hankison 1.42 kW Power HPR Value Series Refrigerated Compressed Air Dryer is a reliable solution offering exceptional value and industry-leading technology. With a rated flow of 200 scfm, R134a refrigerant, and compliance with ISO 8573-1 Air Quality Class 4 to 5 standards, this dryer ensures the highest air quality with efficient condensate management and environmental-friendly operation. The time-proven design, safety features, and optional pre- and after-filtration make it ideal for both consumer and institutional buyers seeking performance and reliability.
Product Specifications
Condensate Management

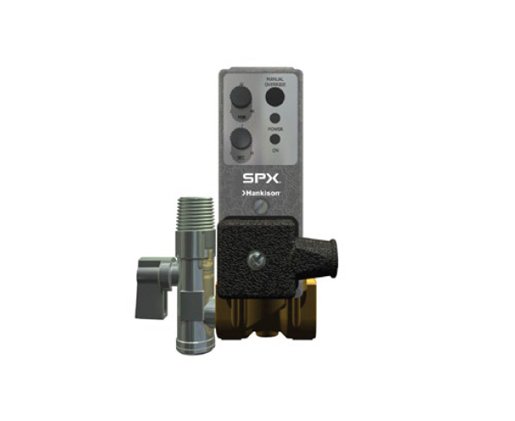

Integral stainless demister/separator captures liquid condensate and solid particles.Electronic drain valve automatically discharges condensate from the dryer.

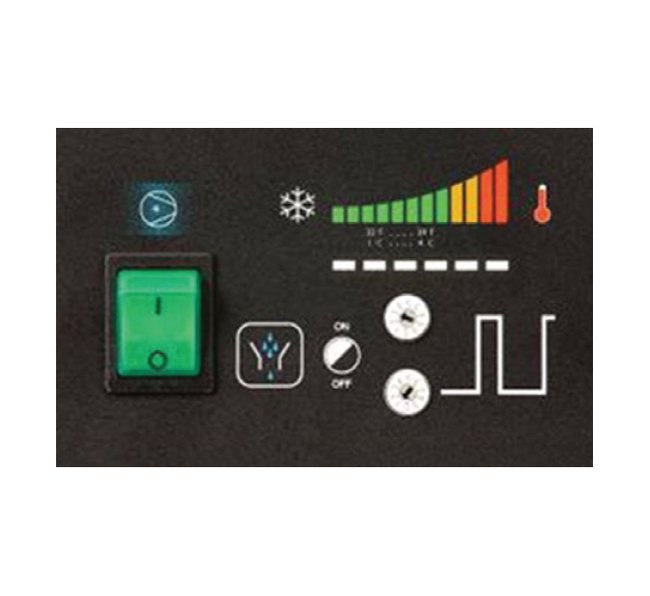

Ease Of Monitoring
Model 75 -150 scfm : Lighted On/Off switch and dew point indicator.Models 200 - 500 scfm: Lighted On/Off switch, LED dew point temperature indicator, timer drain adjustment on the panel.
International Air Quality Class Standards Iso 8573 1 Air Quality
ISO 8573-1, the international standard for compressed air quality, defines the amount of contamination permissible in compressed air.The ISO standard identifies three primary forms of contamination in compressed air systems - solid particles, water and oil Contaminants are classified and assigned a quality class, ranging from Class 0, the highest purity level, to Class 6, the most relaxed.HPR and HPRN series refrigerated air dryers offer the perfect balance between technology and simplicity to dry compressed air systems to ISO 8573-1 Air Quality Class 4 to 5 - pressure dew points.

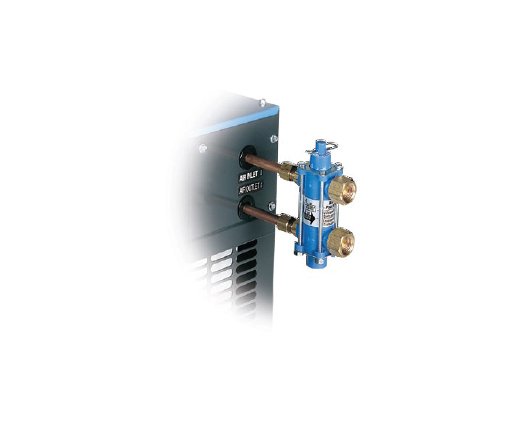

International Air Quality Class Standards Option After Filtratio
NGF series - HF grade filtration - provides high efficiency oil removal protecting downstream equipment .ISO Air Quality Class:Solids - Class 1Remaining Oil - Class1Removes 99.999+ % of solids ≥ 0.01 micronRemaining oil content < 0.01 mg/m3
International Air Quality Class Standards Option Pre Filtration
NGF series - PF grade filtration - removes solid and oil contaminants from the air stream before entering the dryer.ISO Air Quality Class:Solids - Class 2Remaining Oil - Class 4Removes solids 1.0 micron and largerRemaining oil content 2.0. mg/m³
Safety First Environmental Friendly
CFC free R134a refrigerant.CSA approved.
Specifications Depth
36 in
Specifications Frequency
60 Hz
Specifications Height
30 in
Specifications Inlet Connection Size
1 1/2 in
Specifications Inlet Connection Type
NPT
Specifications Maximum Ambient Air Temperature
110 ºF | 43 ºC
Specifications Maximum Inlet Air Pressure
232 psig | 16 bar
Specifications Maximum Inlet Air Temperature
120 ºF | 49 ºC
Specifications Minimum Ambient Air Temperature
45 ºF | 7 ºC
Specifications Minimum Inlet Air Pressure
10 psig | 1 bar
Specifications Minimum Inlet Air Temperature
40 ºF | 4 ºC
Specifications Outlet Connection Size
1 1/2 in
Specifications Outlet Connection Type
NPT
Specifications Phase
3
Specifications Power
1.42 kW
Specifications Rated Flow
200 scfm | 340 m³/h
Specifications Refrigerant
R134a
Specifications Series
Hankison® | HRP | HRPN
Specifications Voltage
460 V
Specifications Weight
183 lb
Specifications Width
17 in
Time Proven Design
316 stainless steel, brazed plate heat exchangers efficiently dry the air to the specified pressure dew point.Hot gas by-pass valve maintains constant evaporator temperature.Replaceable ambient air filter protects the condenser from airborne contaminantsMaintenance kits include ambient air filter.
