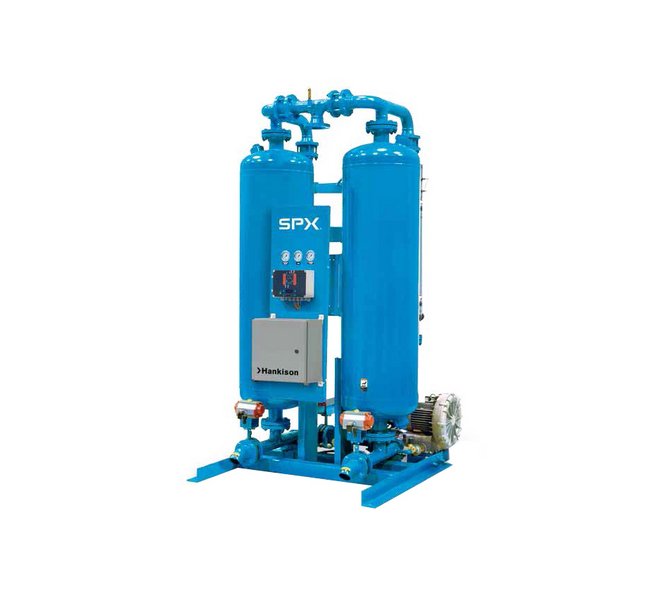

Hankison 10 kW Heat Rated Output Compressed Air Dryer - HBP Series
Hankison 10 kW Heat Rated Output Compressed Air Dryer - HBP Series
SKU:DES-6cea87
Advanced 10 kW Heat Rated Air Dryer for efficient 100% air systems, ISO Class 2 dew point performance guaranteed.
Regular price
$5,899.99
Regular price
Sale price
$5,899.99
Unit price
per
Initiate Order
Hankison 10 kW Heat Rated Output Compressed Air Dryer - HBP Series
$5,899.99
Quantity: 1
Claim Your Seller Account
Hankison 10 kW Heat Rated Output Compressed Air Dryer - HBP Series
$5,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

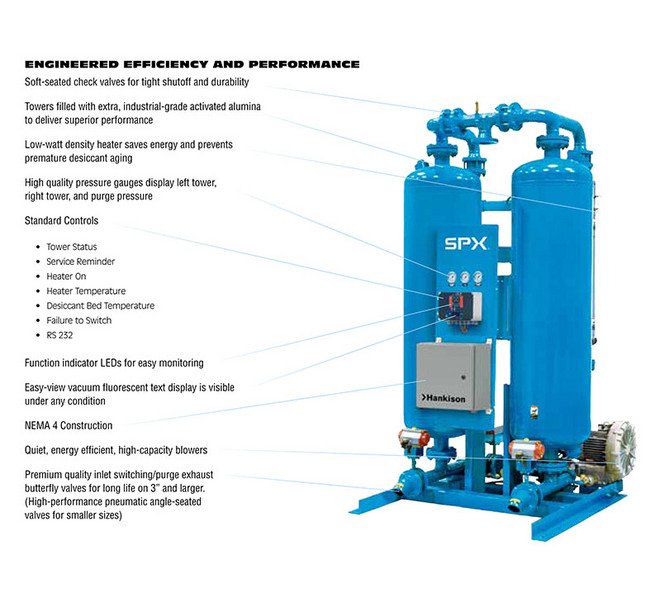

The Hankison 10 kW Heat Rated Output Compressed Air Dryer from the HBP Series is engineered for providing 100% efficient air systems. With a focus on energy efficiency and performance, this dryer features soft-seated check valves, industrial-grade activated alumina, low-watt density heater, and high-quality pressure gauges. It guarantees ISO Class 2 (-40 ºF/-40 ºC) dew point performance, ensuring high-quality compressed air for various applications. The Hankison 10 kW Heat Rated Output Compressed Air Dryer is designed to optimize energy consumption, reduce costs, and align with supply-side demand requirements.
Product Specifications
Additional Information

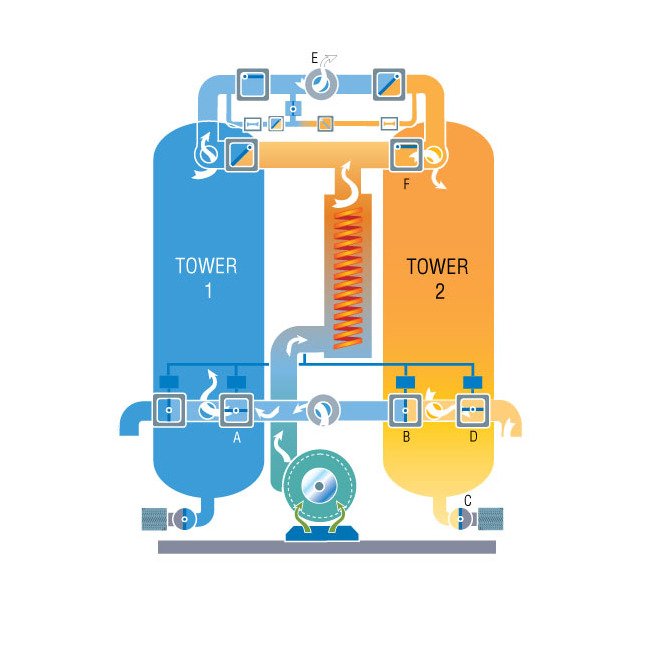

HBP Series dryers improve air system efficiency by the use of a dedicated axial blower, instead of a percentage of dehydrated purge air, to regenerate the off-line desiccant tower. ISO 8573.1 Class 2 (-40 ºF/-40 ºC) dew point performance is guaranteed.
Demand Side Impact On Supply Side Dryer Types Air Compressor Nee
250 hp | 1250 scfm
Demand Side Impact On Supply Side Dryer Types Air Volume Require
1176 scfm
Demand Side Impact On Supply Side Dryer Types Compressed Purge A
24506 USD
Demand Side Impact On Supply Side Dryer Types Dryer Types
HBP Series Blower Purge | Heated Purge | Heatless

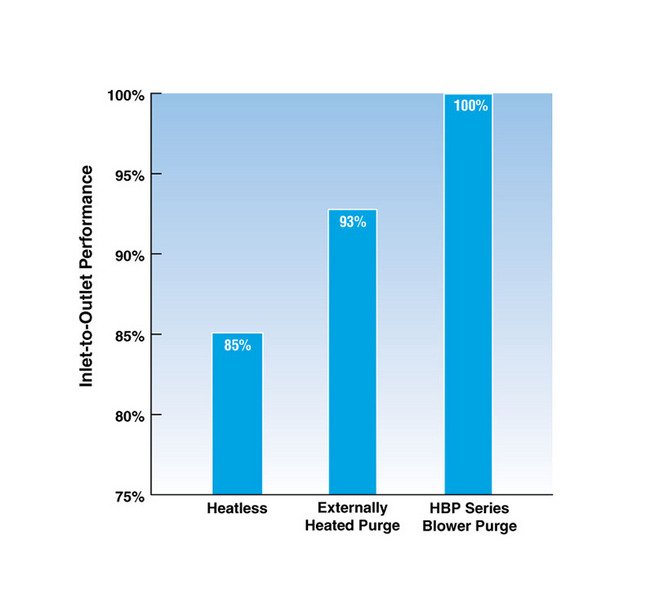

Demand Side Impact On Supply Side Dryer Types Efficiency For Hbp
100 %
Demand Side Impact On Supply Side Dryer Types Efficiency For Hea
85 %
Engineering Data Depth
70 in
Engineering Data Height
105 in
Engineering Data Width
53 in
Iso 85731 Quality Classes Maximum Number Of Solid Particles For
20000 m³
Iso 85731 Quality Classes Maximum Number Of Solid Particles Per
1
Product Features For Option A Model Of Controller Power Recovery
Automatic Restart after Power Loss
Product Features For Option B Model Of Controller Power Recovery
Automatic Restart after Power Loss
Product Features For Standard Model Of Controller Power Recovery
Automatic Restart after Power Loss
Specifications Inlet Connection Size
2 in
Specifications Outlet Connection Size
2 in
