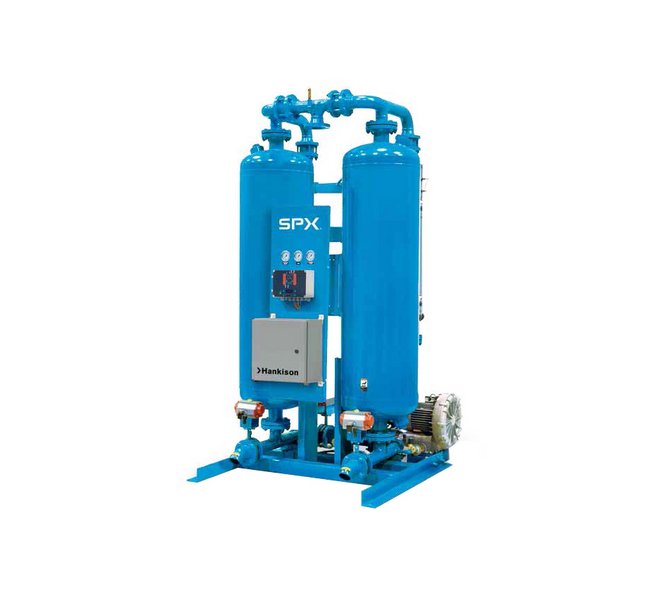

Hankison 45kW Heat Rated Desiccant Air Dryer - HBP Series
Hankison 45kW Heat Rated Desiccant Air Dryer - HBP Series
SKU:DES-789e88
Hankison 45kW Heat Rated Desiccant Air Dryer for 100% efficient air systems in institutional settings.
Regular price
$18,999.00
Regular price
Sale price
$18,999.00
Unit price
per
Initiate Order
Hankison 45kW Heat Rated Desiccant Air Dryer - HBP Series
$18,999.00
Quantity: 1
Claim Your Seller Account
Hankison 45kW Heat Rated Desiccant Air Dryer - HBP Series
$18,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

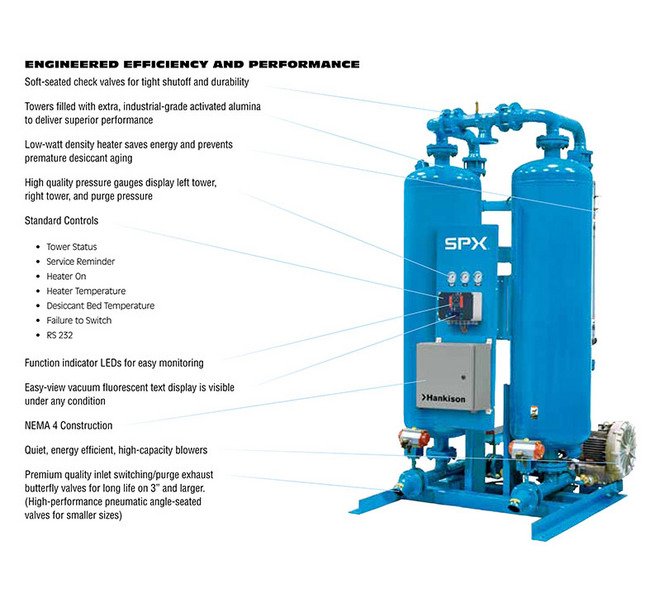

The Hankison HBP Series 45kW Heat Rated Output Compressed Air Dryer ensures 100% efficient air systems, meeting ISO 8573.1 Quality Classes. Engineered for institutional use, this dryer features soft-seated check valves, industrial-grade alumina, low-watt density heater, and premium quality controls. Reduce energy consumption and eliminate costly air loss with this high-performance solution.
Product Specifications
Additional Information

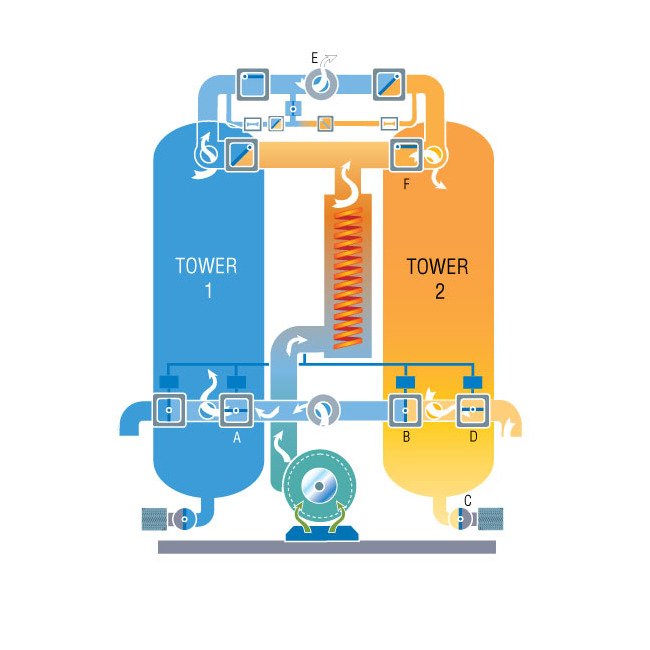

HBP Series dryers improve air system efficiency by the use of a dedicated axial blower, instead of a percentage of dehydrated purge air, to regenerate the off-line desiccant tower. ISO 8573.1 Class 2 (-40 ºF/-40 ºC) dew point performance is guaranteed.
Demand Side Impact On Supply Side Dryer Types Air Compressor Nee
250 hp | 1250 scfm
Demand Side Impact On Supply Side Dryer Types Air Volume Require
1176 scfm
Demand Side Impact On Supply Side Dryer Types Compressed Purge A
24506 USD
Demand Side Impact On Supply Side Dryer Types Dryer Types
HBP Series Blower Purge | Heated Purge | Heatless

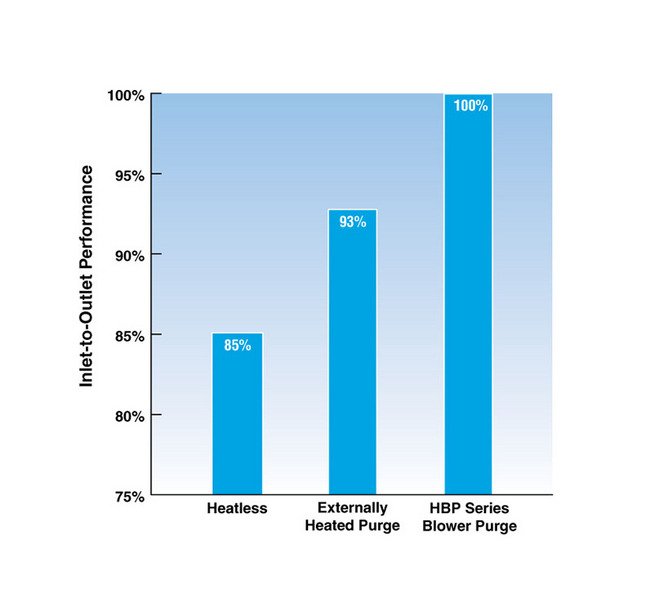

Demand Side Impact On Supply Side Dryer Types Efficiency For Hbp
100 %
Demand Side Impact On Supply Side Dryer Types Efficiency For Hea
85 %
Engineering Data Depth
104 in
Engineering Data Height
124 in
Engineering Data Width
85 in
Iso 85731 Quality Classes Maximum Number Of Solid Particles For
20000 m³
Iso 85731 Quality Classes Maximum Number Of Solid Particles Per
1
Product Features For Option A Model Of Controller Power Recovery
Automatic Restart after Power Loss
Product Features For Option B Model Of Controller Power Recovery
Automatic Restart after Power Loss
Product Features For Standard Model Of Controller Power Recovery
Automatic Restart after Power Loss
Specifications Inlet Connection Size
4 in
Specifications Outlet Connection Size
4 in
