Hankison 70 kW Heat Rated Compressed Air Dryer
Hankison 70 kW Heat Rated Compressed Air Dryer
SKU:DES-cd36d0
100% efficient Hankison 70kW Compressed Air Dryer with ISO Class 2 dew point.
Regular price
$12,999.99
Regular price
Sale price
$12,999.99
Unit price
per
Initiate Order
Hankison 70 kW Heat Rated Compressed Air Dryer
$12,999.99
Quantity: 1
Claim Your Seller Account
Hankison 70 kW Heat Rated Compressed Air Dryer
$12,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

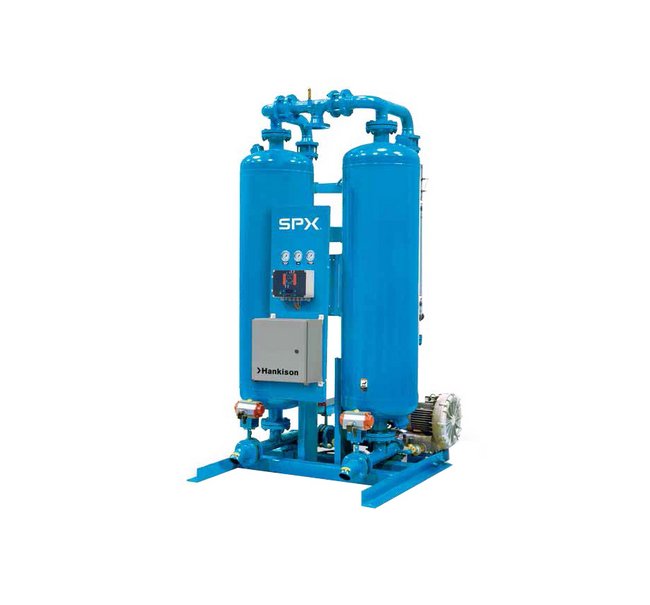

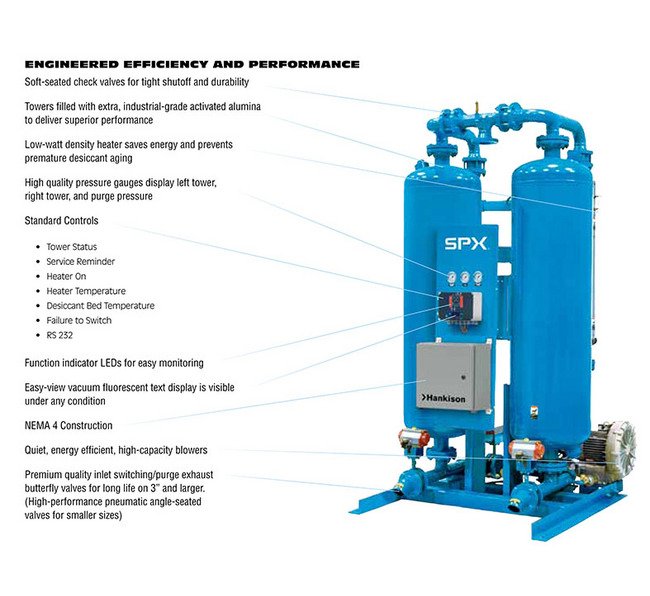

The Hankison 70 kW Heat Rated Compressed Air Dryer from the HBP Series ensures 100% efficient air systems, delivering high-quality treated compressed air for various applications. With dimensions of 130" x 105" x 124" and weighing 12350 lb, this desiccant dryer features a 4.4 kW blower and a heater with a rated output of 70 kW. It meets ISO 8573.1 Quality Classes and guarantees Class 2 (-40 ºF/-40 ºC) dew point performance.
Product Specifications
Additional Information

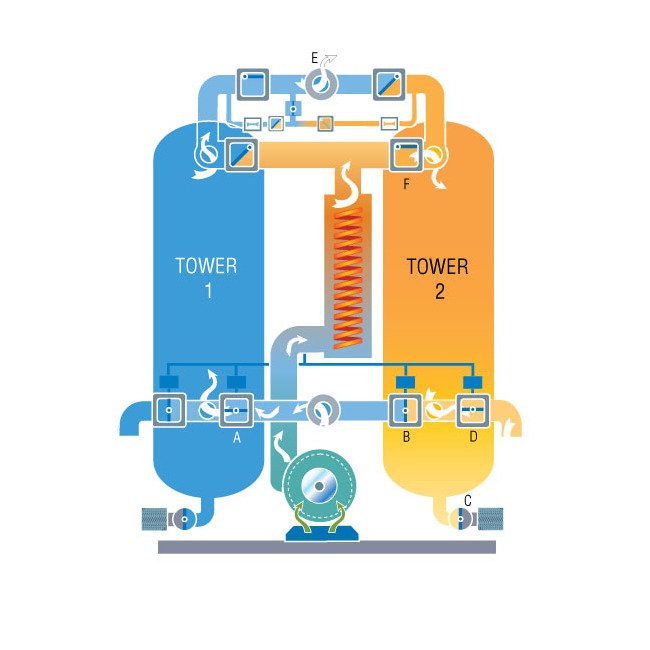

HBP Series dryers improve air system efficiency by the use of a dedicated axial blower, instead of a percentage of dehydrated purge air, to regenerate the off-line desiccant tower. ISO 8573.1 Class 2 (-40 ºF/-40 ºC) dew point performance is guaranteed.
Demand Side Impact On Supply Side Dryer Types Air Compressor Nee
250 hp | 1250 scfm
Demand Side Impact On Supply Side Dryer Types Air Volume Require
1176 scfm
Demand Side Impact On Supply Side Dryer Types Compressed Purge A
24506 USD
Demand Side Impact On Supply Side Dryer Types Dryer Types
HBP Series Blower Purge | Heated Purge | Heatless

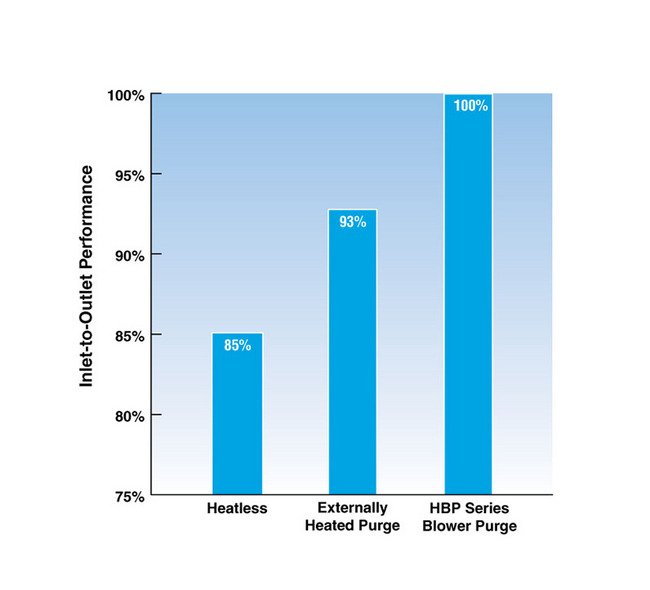

Demand Side Impact On Supply Side Dryer Types Efficiency For Hbp
100 %
Demand Side Impact On Supply Side Dryer Types Efficiency For Hea
85 %
Engineering Data Depth
130 in
Engineering Data Height
124 in
Engineering Data Width
105 in
Iso 85731 Quality Classes Maximum Number Of Solid Particles For
20000 m³
Iso 85731 Quality Classes Maximum Number Of Solid Particles Per
1
Product Features For Option A Model Of Controller Power Recovery
Automatic Restart after Power Loss
Product Features For Option B Model Of Controller Power Recovery
Automatic Restart after Power Loss
Product Features For Standard Model Of Controller Power Recovery
Automatic Restart after Power Loss
Specifications Inlet Connection Size
6 in
Specifications Outlet Connection Size
6 in
