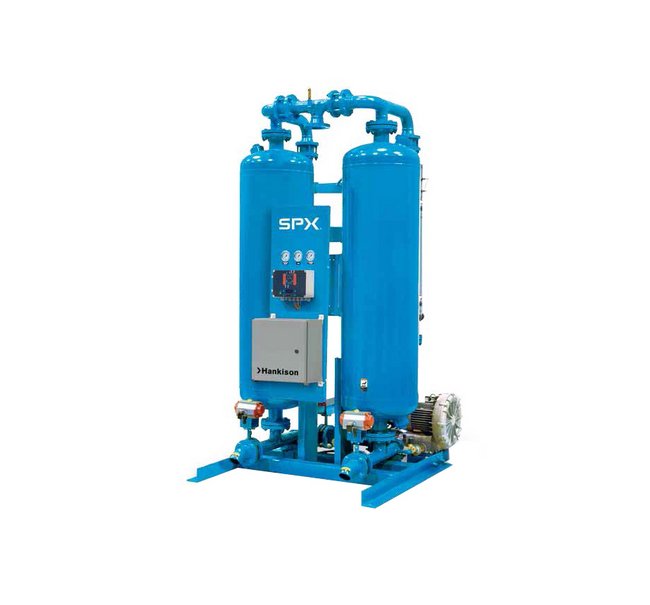

Hankison HBP Series 16 kW Compressed Air Dryer
Hankison HBP Series 16 kW Compressed Air Dryer
SKU:DES-22ba0c
Achieve optimal air quality and efficiency with the Hankison HBP Series 16 kW Compressed Air Dryer. ISO 8573.1 compliant with advanced features for industrial applications.
Regular price
$6,999.99
Regular price
Sale price
$6,999.99
Unit price
per
Initiate Order
Hankison HBP Series 16 kW Compressed Air Dryer
$6,999.99
Quantity: 1
Claim Your Seller Account
Hankison HBP Series 16 kW Compressed Air Dryer
$6,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

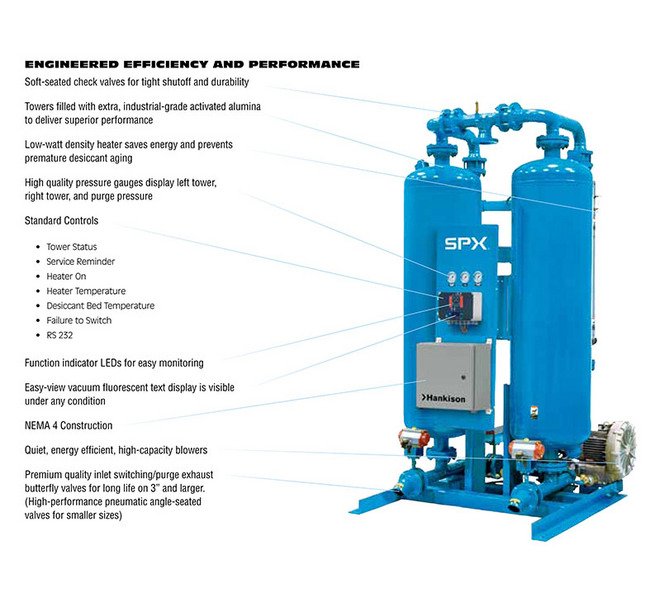

The Hankison HBP Series 16 kW Compressed Air Dryer is engineered for superior air system efficiency. With a blower purge design and 100% efficient performance, this dryer meets ISO 8573.1 quality classes, ensuring optimal air quality for industrial applications. Features include a low-watt density heater, automated controls, and premium components for reliable operation. Reduce energy consumption and eliminate costly air loss with this advanced compressed air solution.
Product Specifications
Additional Information

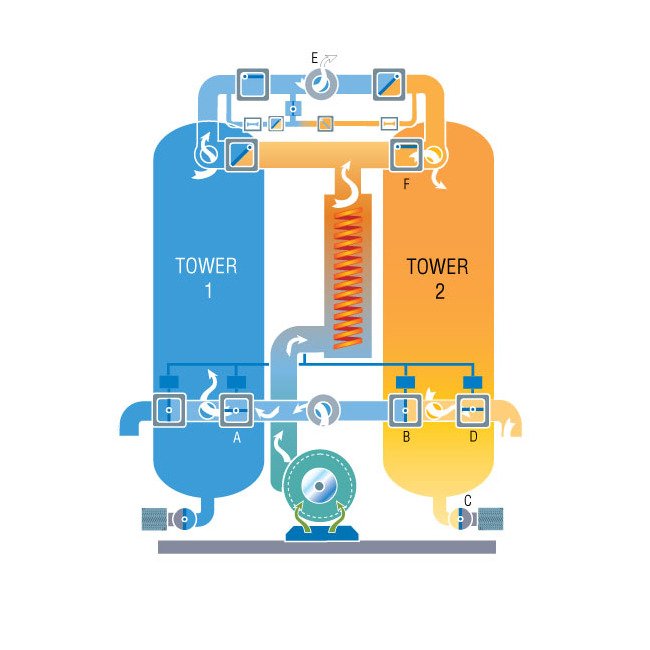

HBP Series dryers improve air system efficiency by the use of a dedicated axial blower, instead of a percentage of dehydrated purge air, to regenerate the off-line desiccant tower. ISO 8573.1 Class 2 (-40 ºF/-40 ºC) dew point performance is guaranteed.
Demand Side Impact On Supply Side Dryer Types Air Compressor Nee
250 hp | 1250 scfm
Demand Side Impact On Supply Side Dryer Types Air Volume Require
1176 scfm
Demand Side Impact On Supply Side Dryer Types Compressed Purge A
24506 USD
Demand Side Impact On Supply Side Dryer Types Dryer Types
HBP Series Blower Purge | Heated Purge | Heatless

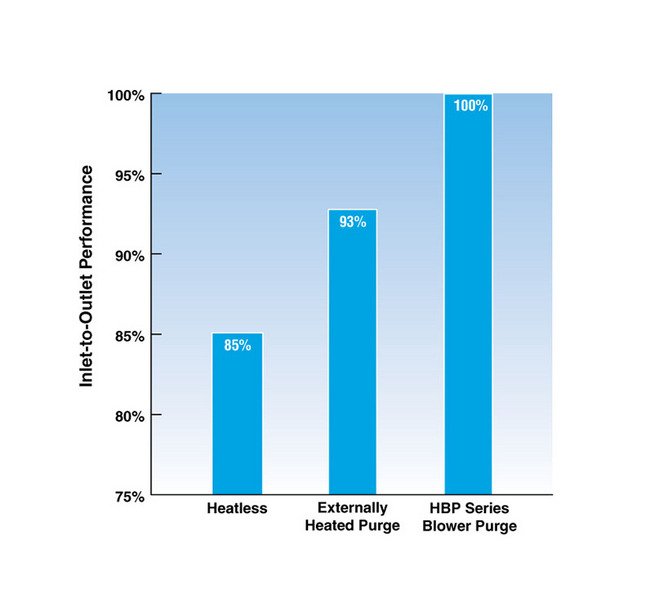

Demand Side Impact On Supply Side Dryer Types Efficiency For Hbp
100 %
Demand Side Impact On Supply Side Dryer Types Efficiency For Hea
85 %
Engineering Data Depth
83 in
Engineering Data Height
114 in
Engineering Data Width
60 in
Iso 85731 Quality Classes Maximum Number Of Solid Particles For
20000 m³
Iso 85731 Quality Classes Maximum Number Of Solid Particles Per
1
Product Features For Option A Model Of Controller Power Recovery
Automatic Restart after Power Loss
Product Features For Option B Model Of Controller Power Recovery
Automatic Restart after Power Loss
Product Features For Standard Model Of Controller Power Recovery
Automatic Restart after Power Loss
Specifications Inlet Connection Size
3 in
Specifications Outlet Connection Size
3 in
