Hankison HBP Series Blower Purge Desiccant Air Dryer - 28 kW Heat Rated Output
Hankison HBP Series Blower Purge Desiccant Air Dryer - 28 kW Heat Rated Output
SKU:DES-3d3f53
Hankison HBP Series Desiccant Air Dryer - 28 kW Heat Output. 100% Efficiency & ISO 8573.1. Optimize air quality & reduce energy costs.
Regular price
$7,999.00
Regular price
Sale price
$7,999.00
Unit price
per
Initiate Order
Hankison HBP Series Blower Purge Desiccant Air Dryer - 28 kW Heat Rated Output
$7,999.00
Quantity: 1
Claim Your Seller Account
Hankison HBP Series Blower Purge Desiccant Air Dryer - 28 kW Heat Rated Output
$7,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

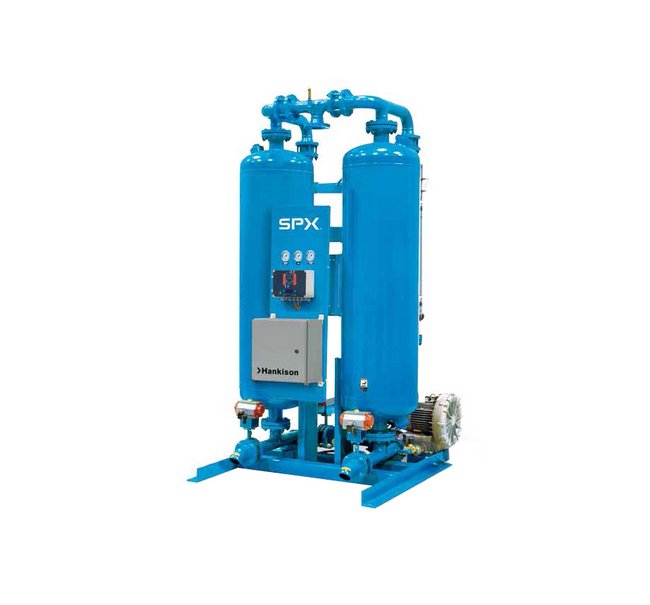

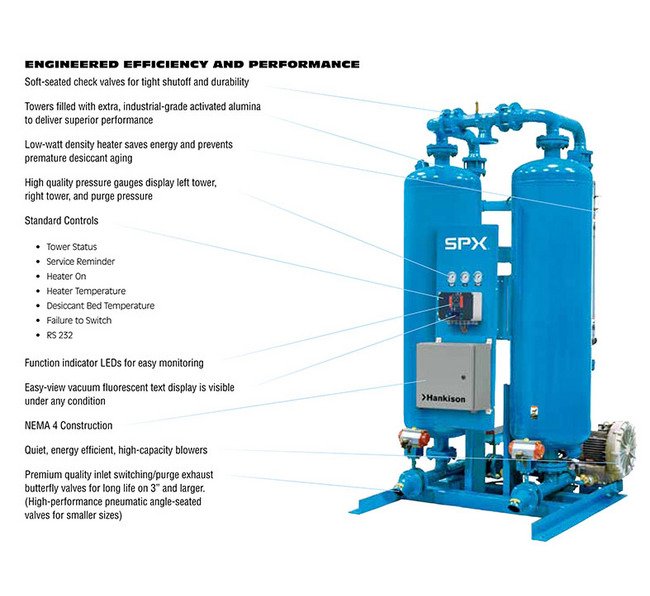

The Hankison HBP Series Blower Purge Desiccant Air Dryer with a 28 kW Heat Rated Output is engineered for 100% efficiency, meeting ISO 8573.1 Quality Classes for optimal air quality. Featuring innovative technology like a low-watt density heater and extra industrial-grade activated alumina, this dryer ensures superior performance, energy savings, and durability. Reduce energy consumption and eliminate costly air loss with this efficient solution, guaranteeing reliable compressed air systems for diverse applications.
Product Specifications
Additional Information

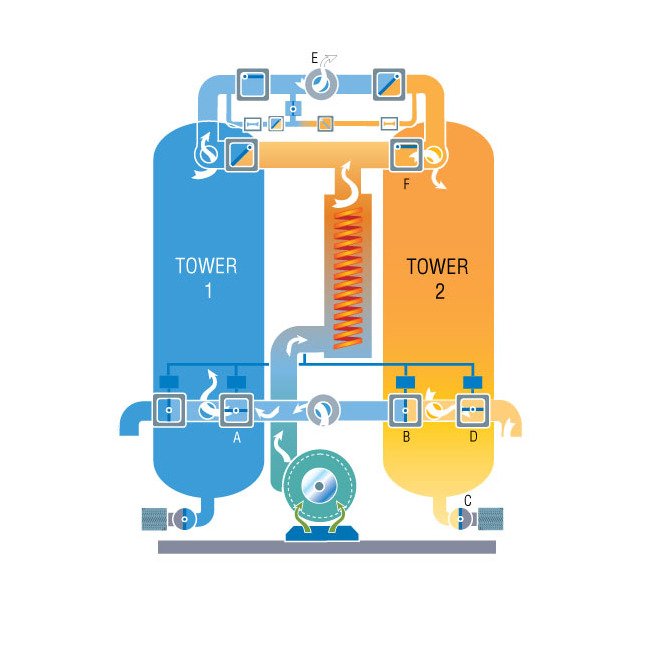

HBP Series dryers improve air system efficiency by the use of a dedicated axial blower, instead of a percentage of dehydrated purge air, to regenerate the off-line desiccant tower. ISO 8573.1 Class 2 (-40 ºF/-40 ºC) dew point performance is guaranteed.
Demand Side Impact On Supply Side Dryer Types Air Compressor Nee
250 hp | 1250 scfm
Demand Side Impact On Supply Side Dryer Types Air Volume Require
1176 scfm
Demand Side Impact On Supply Side Dryer Types Compressed Purge A
24506 USD
Demand Side Impact On Supply Side Dryer Types Dryer Types
HBP Series Blower Purge | Heated Purge | Heatless

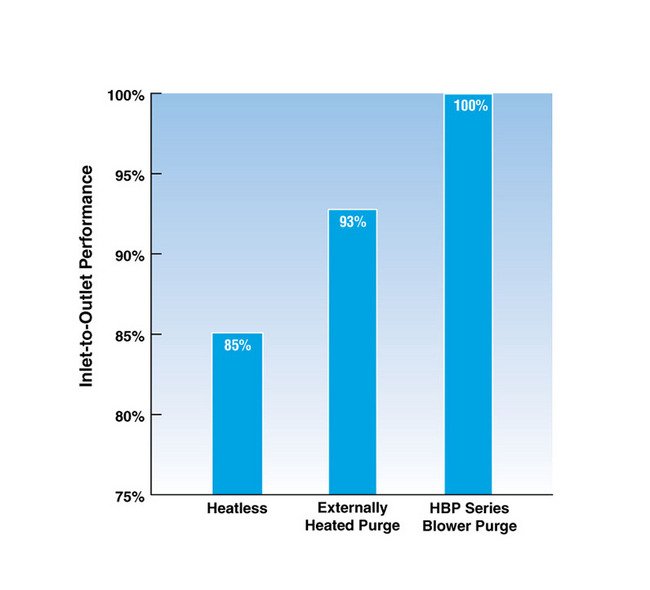

Demand Side Impact On Supply Side Dryer Types Efficiency For Hbp
100 %
Demand Side Impact On Supply Side Dryer Types Efficiency For Hea
85 %
Engineering Data Depth
93 in
Engineering Data Height
116 in
Engineering Data Width
80 in
Iso 85731 Quality Classes Maximum Number Of Solid Particles For
20000 m³
Iso 85731 Quality Classes Maximum Number Of Solid Particles Per
1
Product Features For Option A Model Of Controller Power Recovery
Automatic Restart after Power Loss
Product Features For Option B Model Of Controller Power Recovery
Automatic Restart after Power Loss
Product Features For Standard Model Of Controller Power Recovery
Automatic Restart after Power Loss
Specifications Inlet Connection Size
3 in
Specifications Outlet Connection Size
3 in
