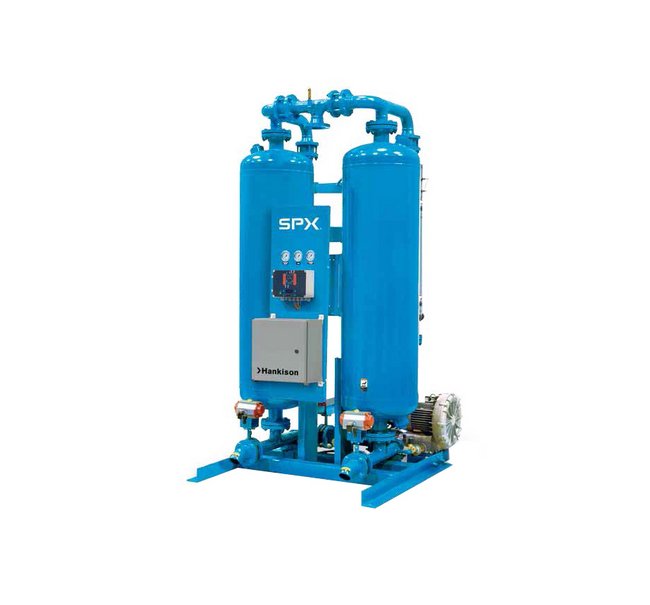

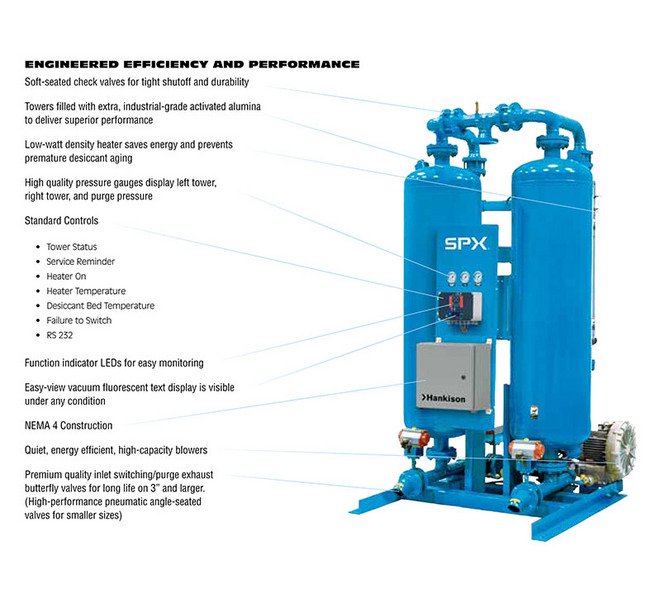

The Hankison HBP Series Blower Purge Desiccant Air Dryer with a 39kW heat rated output offers superior air system efficiency for both industrial and government applications. This dryer guarantees ISO Class 2 (-40 ºF/-40 ºC) dew point performance while reducing energy consumption by 20%. Engineered for optimal performance, it features soft-seated check valves, industrial-grade activated alumina, and a low-watt density heater. Compliant with ISO 8573.1 quality classes and CAGI standards, this dryer ensures reliable and high-quality compressed air for critical operations.
Product Specifications
Additional Information

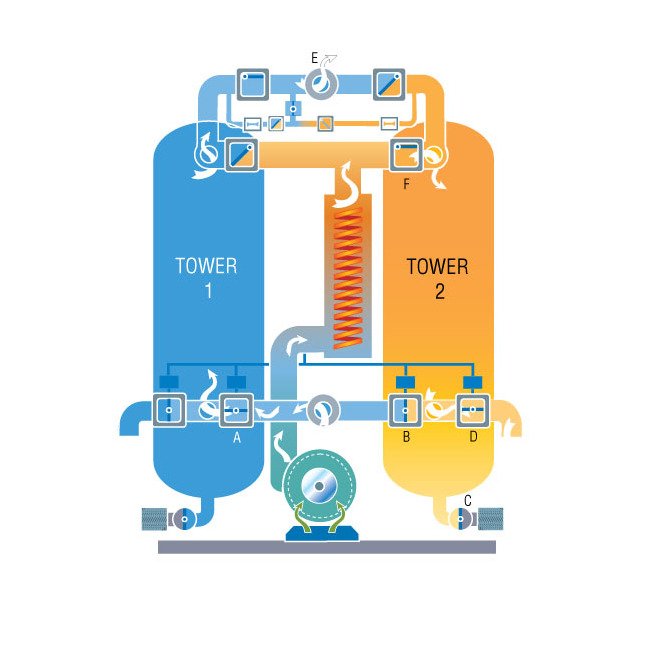

HBP Series dryers improve air system efficiency by the use of a dedicated axial blower, instead of a percentage of dehydrated purge air, to regenerate the off-line desiccant tower. ISO 8573.1 Class 2 (-40 ºF/-40 ºC) dew point performance is guaranteed.
Demand Side Impact On Supply Side Dryer Types Air Compressor Nee
250 hp | 1250 scfm
Demand Side Impact On Supply Side Dryer Types Air Volume Require
1176 scfm
Demand Side Impact On Supply Side Dryer Types Compressed Purge A
24506 USD
Demand Side Impact On Supply Side Dryer Types Dryer Types
HBP Series Blower Purge | Heated Purge | Heatless

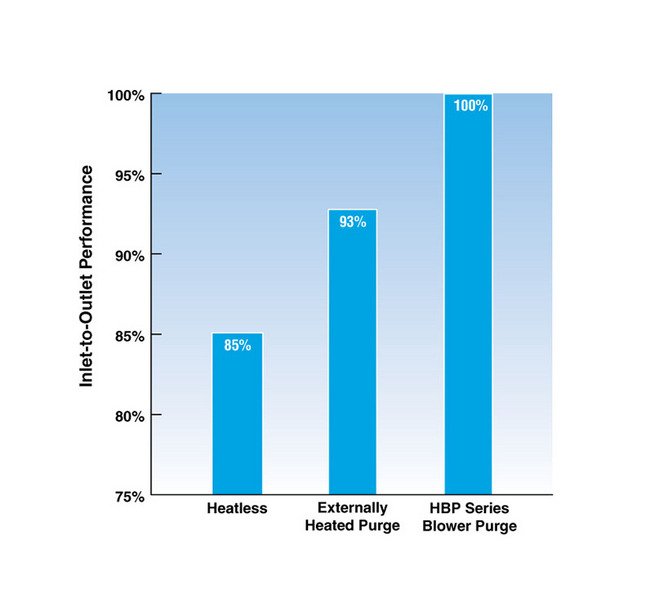

Demand Side Impact On Supply Side Dryer Types Efficiency For Hbp
100 %
Demand Side Impact On Supply Side Dryer Types Efficiency For Hea
85 %
Engineering Data Depth
104 in
Engineering Data Height
124 in
Engineering Data Width
85 in
Iso 85731 Quality Classes Maximum Number Of Solid Particles For
20000 m³
Iso 85731 Quality Classes Maximum Number Of Solid Particles Per
1
Product Features For Option A Model Of Controller Power Recovery
Automatic Restart after Power Loss
Product Features For Option B Model Of Controller Power Recovery
Automatic Restart after Power Loss
Product Features For Standard Model Of Controller Power Recovery
Automatic Restart after Power Loss
Specifications Inlet Connection Size
4 in
Specifications Outlet Connection Size
4 in
