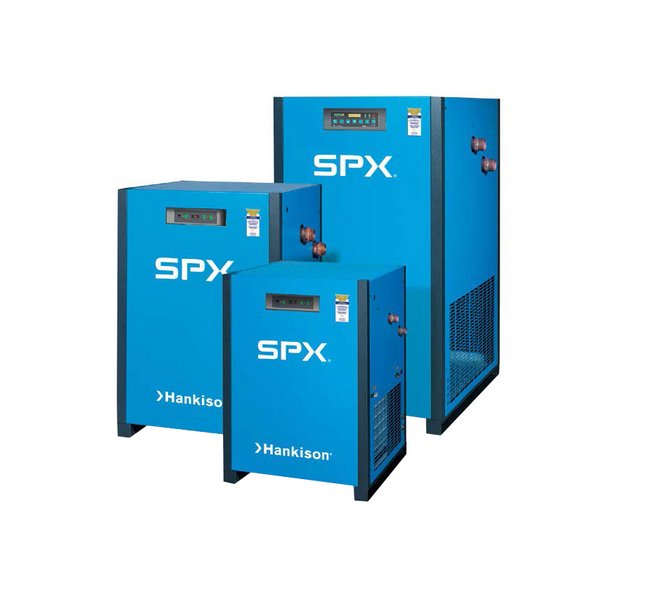

Hankison HES 1.29 kW Refrigerated Compressed Air Dryer
Hankison HES 1.29 kW Refrigerated Compressed Air Dryer
SKU:REF-ed70d1
Energy-efficient Hankison HES 1.29 kW Refrigerated Compressed Air Dryer for cost-effective air treatment
Regular price
$2,999.99
Regular price
Sale price
$2,999.99
Unit price
per
Initiate Order
Hankison HES 1.29 kW Refrigerated Compressed Air Dryer
$2,999.99
Quantity: 1
Claim Your Seller Account
Hankison HES 1.29 kW Refrigerated Compressed Air Dryer
$2,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

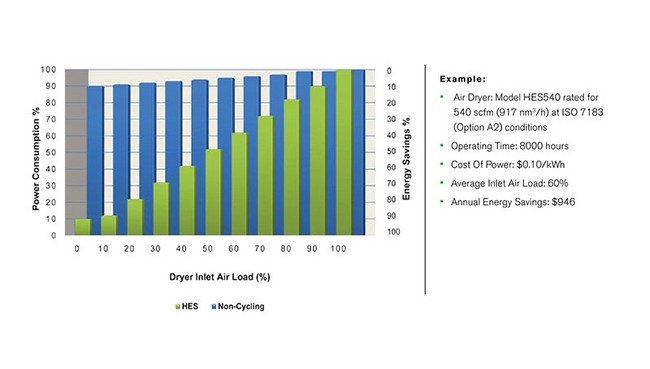

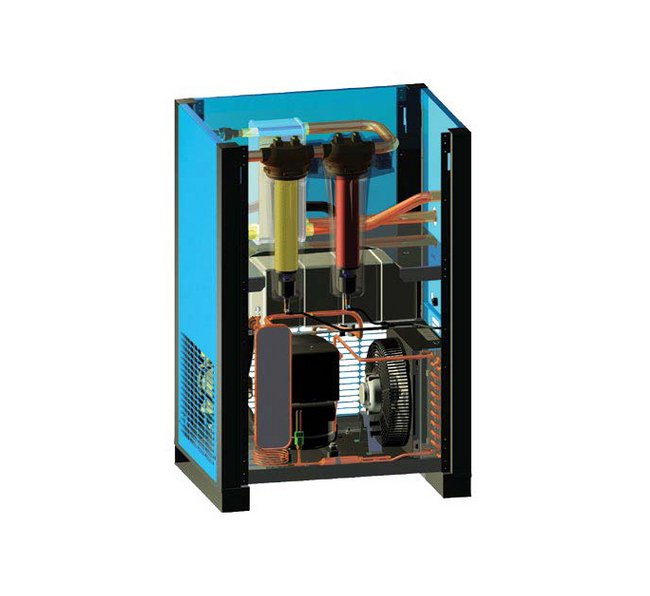

The Hankison HES 1.29 kW Refrigerated Compressed Air Dryer from the Energy Saving Series offers sustainable energy-saving solutions to reduce operational costs. This dryer delivers ISO 8573-1 Quality Class Air by efficiently removing solid particles, water, and oil contaminants. With load-matching performance, it optimizes power consumption based on compressed air demand, providing up to 38% energy savings compared to non-cycling dryers. The product features an optimized cabinet design, stainless steel heat exchangers, and integral filtration for enhanced efficiency and performance.
Product Specifications
Additional Information
Air treatment manufacturers are challenged to design equipment that consumes less energy while operating at reduced load. Hankison® HES Series Refrigerated Compressed Air Dryers are the ideal solution!Sustainable energy saving solutions are the driving principle behind Hankison® product designs. The HES Series lowers power costs and improves productivity by matching power consumption to compressed air demand.
Delivers Iso 8573 1 Quality Class Air
The International Organization for Standardization (ISO) identified three forms of contamination as common in compressed air systems - solid particles, water and oil. ISO Standard 8573-1: 2010 categorizes each contaminant and assigns a quality class, ranging from Class 0, the highest purity level, to Class 9, the most relaxed.The HES Series effectively removes all three contaminant forms in a single air treatment system.Innovation at WorkThe standard dryer is equipped with a Grade 9 filter/separatorISO Quality Class 3: Remaining solid particulate ISO Quality Class 5: Pressure dew pointISO Quality Class 5: Remaining oil concentrationOptional Grade 5 high efficiency coalescing filters are availableISO Quality Class 1: Remaining solid particulateISO Quality Class 5: Pressure dew pointISO Quality Class 1: Remaining oil concentration
Delivers Performance Sustainability And Safety

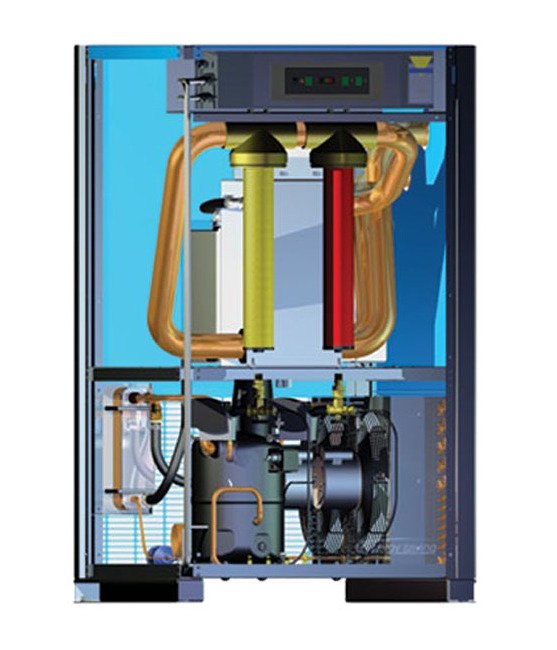

The Drying Process-Compressed Air Circuit:Warm, saturated compressed air enters the dryer through the inlet pipe connection.Air travels through the air-to-air heat exchanger and the glycol-to-air heat exchanger. Propylene glycol surrounds the passages and cools the air to the desired pressure dew point.Moisture, solid particulates and oil aerosols are removed by the filter/separator. A no-air-loss condensate drain discharges contaminants from the system.Dry, filtered air exits the dryer for use.The Cooling Process-Glycol Circuit:Glycol exits the air-to-glycol heat exchanger and then enters the glycol storage tank.A circulation pump continuously moves the thermal medium throughout the circuit.A thermal sensor monitors the glycol temperature and turns the refrigeration compressor off whenever the glycol is cooled to its lowest temperature. The cooling medium continues to dry the air. After the medium warms up, the thermal sensor restarts the refrigeration compressor.The glycol-to-refrigerant heat exchanger chills the thermal media and travels back to the air-to-glycol heat exchanger.
Iso 8573 1 2010 Air Quality Classes Air Quality Class
0 | 1 | 2 | 3 | 4 | 5
Iso 8573 1 2010 Air Quality Classes Maximum Number Of Solid Part
≤ 100000
Iso 8573 1 2010 Air Quality Classes Total Oil Concentration Aero
4 ppm
Iso 8573 1 2010 Air Quality Classes Water Vapor Pressure Dew Poi
≤ -20 ºC | ≤ -4 ºF
Specifications Depth
20 in
Specifications Height
38 in
Specifications Inlet Connection Size
1 in
Specifications Outlet Connection Size
1 in
Specifications Power
1.29 kW
Specifications Voltage At 50 Hz Frequency
100 V | 220 V
Specifications Voltage At 60 Hz Frequency
115 V | 208 to 230 V
Specifications Width
27 in
