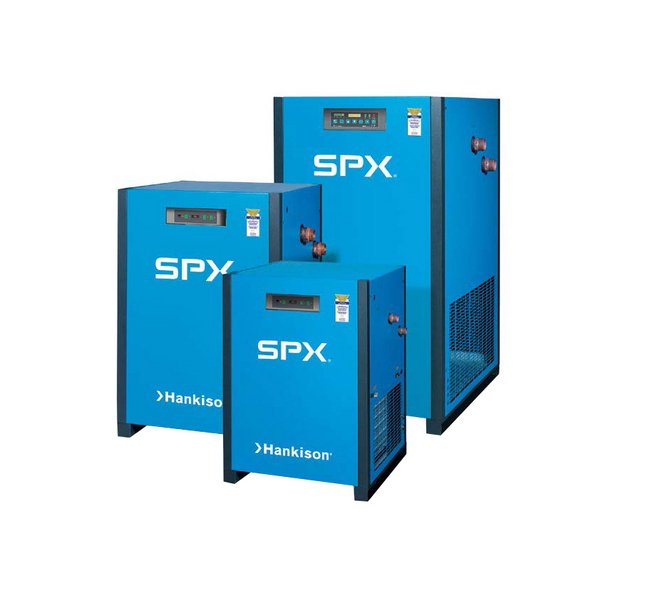

The Hankison HES Series 1.95 kW Refrigerated Air Dryer offers sustainable energy-saving solutions for industrial air treatment. With a rated flow of 280 scfm, this dryer delivers ISO 8573-1 Quality Class Air with precision. Its load matching performance optimizes energy consumption based on demand, resulting in significant cost savings. Featuring advanced filtration, stainless steel heat exchangers, and no-air-loss condensate drains, this dryer ensures top-notch air quality. Designed to meet industry standards like CSA, ISO, and UL, this unit is a reliable and efficient choice for plants aiming to reduce operating costs and enhance productivity.
Product Specifications
Additional Information

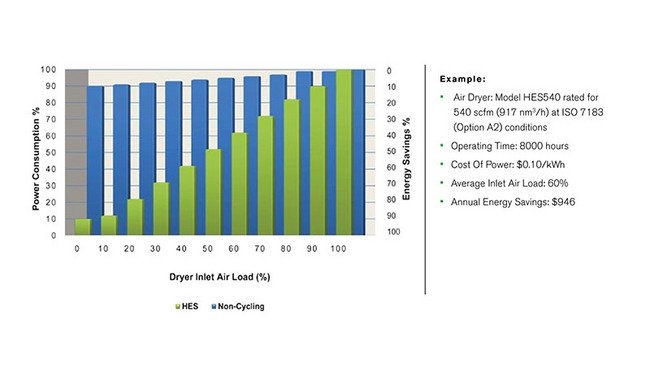

Air treatment manufacturers are challenged to design equipment that consumes less energy while operating at reduced load. Hankison® HES Series Refrigerated Compressed Air Dryers are the ideal solution!Sustainable energy saving solutions are the driving principle behind Hankison® product designs. The HES Series lowers power costs and improves productivity by matching power consumption to compressed air demand.
Delivers Iso 8573 1 Quality Class Air

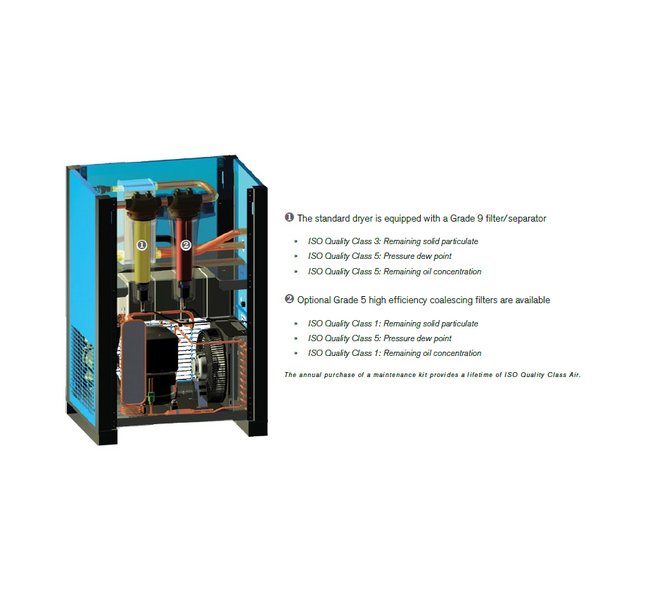

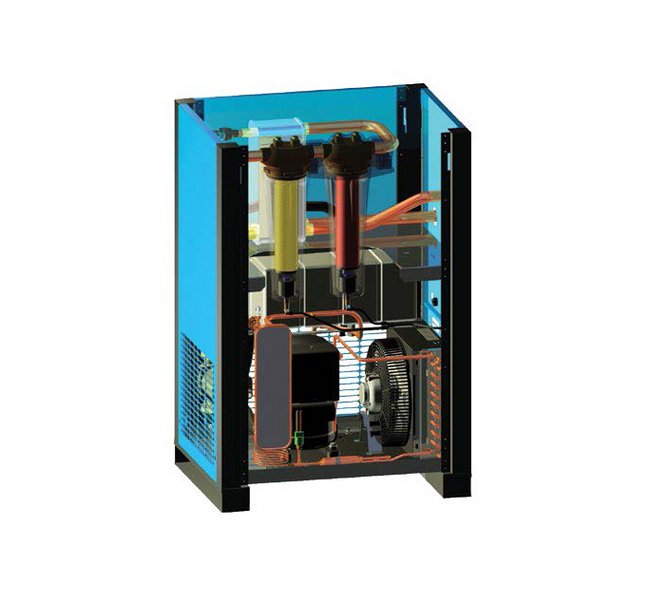

The International Organization for Standardization (ISO) identified three forms of contamination as common in compressed air systems - solid particles, water and oil. ISO Standard 8573-1: 2010 categorizes each contaminant and assigns a quality class, ranging from Class 0, the highest purity level, to Class 9, the most relaxed.The HES Series effectively removes all three contaminant forms in a single air treatment system.Innovation at WorkThe standard dryer is equipped with a Grade 9 filter/separatorISO Quality Class 3: Remaining solid particulate ISO Quality Class 5: Pressure dew pointISO Quality Class 5: Remaining oil concentrationOptional Grade 5 high efficiency coalescing filters are availableISO Quality Class 1: Remaining solid particulateISO Quality Class 5: Pressure dew pointISO Quality Class 1: Remaining oil concentration
Delivers Performance Sustainability And Safety

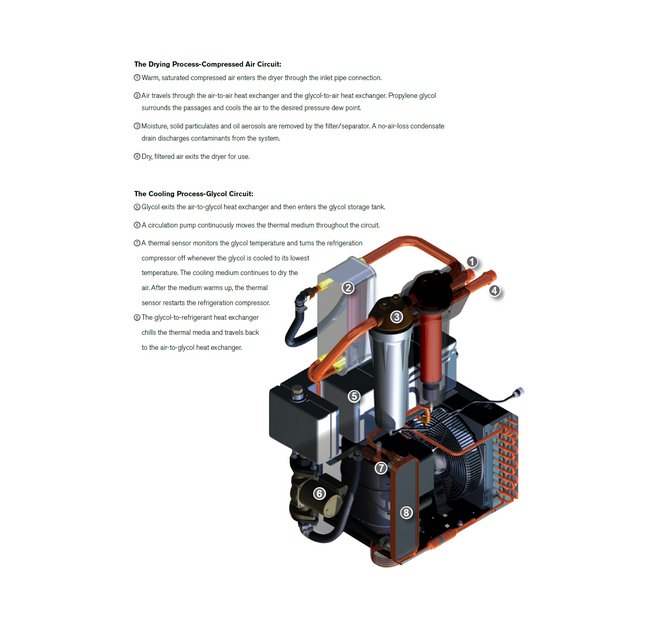

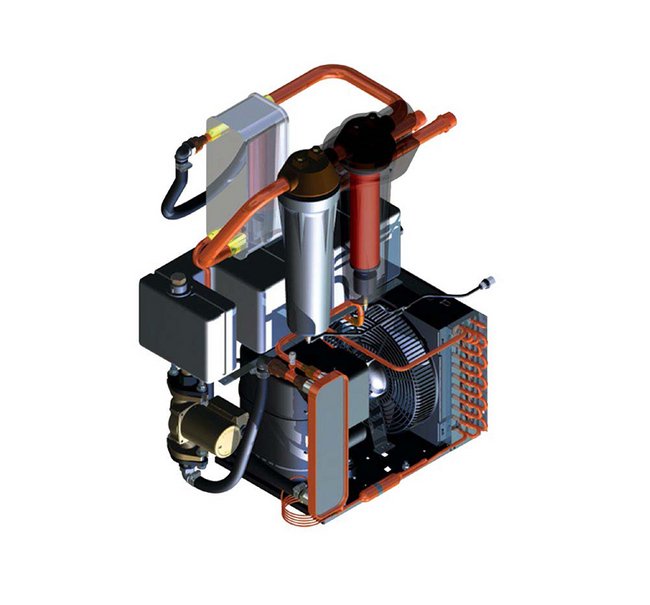

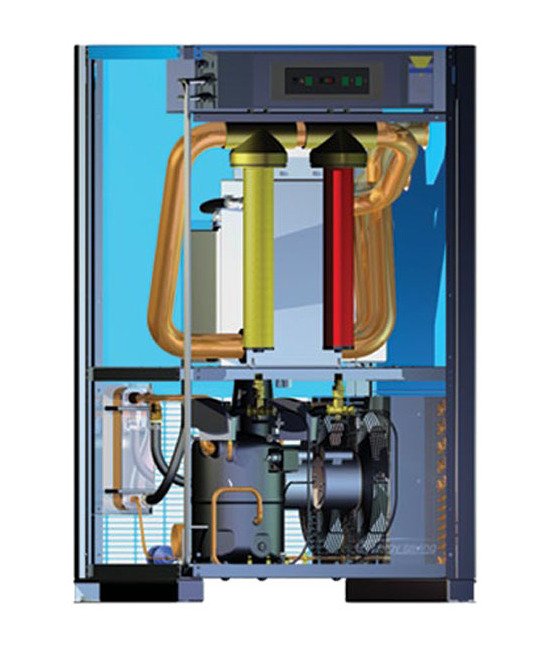

The Drying Process-Compressed Air Circuit:Warm, saturated compressed air enters the dryer through the inlet pipe connection.Air travels through the air-to-air heat exchanger and the glycol-to-air heat exchanger. Propylene glycol surrounds the passages and cools the air to the desired pressure dew point.Moisture, solid particulates and oil aerosols are removed by the filter/separator. A no-air-loss condensate drain discharges contaminants from the system.Dry, filtered air exits the dryer for use.The Cooling Process-Glycol Circuit:Glycol exits the air-to-glycol heat exchanger and then enters the glycol storage tank.A circulation pump continuously moves the thermal medium throughout the circuit.A thermal sensor monitors the glycol temperature and turns the refrigeration compressor off whenever the glycol is cooled to its lowest temperature. The cooling medium continues to dry the air. After the medium warms up, the thermal sensor restarts the refrigeration compressor.The glycol-to-refrigerant heat exchanger chills the thermal media and travels back to the air-to-glycol heat exchanger.

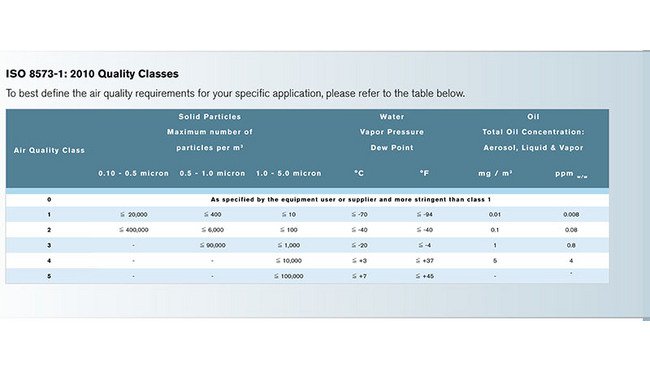

Iso 8573 1 2010 Air Quality Classes Air Quality Class
0 | 1 | 2 | 3 | 4 | 5
Iso 8573 1 2010 Air Quality Classes Maximum Number Of Solid Part
≤ 100000
Iso 8573 1 2010 Air Quality Classes Total Oil Concentration Aero
4 ppm
Iso 8573 1 2010 Air Quality Classes Water Vapor Pressure Dew Poi
≤ -20 ºC | ≤ -4 ºF
Specifications Depth
32 in
Specifications Height
46 in
Specifications Inlet Connection Size
1 1/2 in
Specifications Outlet Connection Size
1 1/2 in
Specifications Power
1.95 kW
Specifications Voltage At 50 Hz Frequency
380 to 420 V
Specifications Voltage At 60 Hz Frequency
208 to 230 V | 460 V | 575 V
Specifications Width
35 in
