Protect products & processes with the ASME-approved Hankison M Series Mist Eliminator.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
Hankison M Series Mist Eliminator - 500 scfm Flow Capacity
$2,899.99
Quantity: 1
Claim Your Seller Account
Hankison M Series Mist Eliminator - 500 scfm Flow Capacity
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Hankison M Series Mist Eliminator offers superior protection for products and processes with its advanced filter bed technology that removes submicronic particles, ensuring ultra-clean air. Designed to maintain a smooth paint appearance and prevent adhesion problems, this mist eliminator extends the life of pneumatic equipment. With ASME approval and a 5-year warranty, it delivers low operating costs, extra protection, and superior installation flexibility for institutional buyers.
Product Specifications
Additional Information
The Auditors Choice!Reduce energy costs while removing oil and water aerosols from compressed air systems.
Extra Protection
Captures and retains large slugs of oil and water, should drain trap failProtects downstream equipment from contamination should oil separator on rotary screw compressor fail
Features Advanced Filter Bed Technology

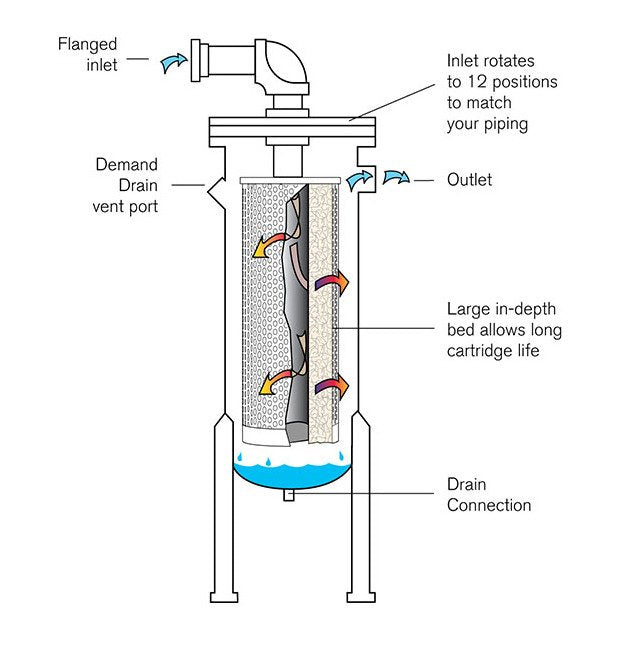

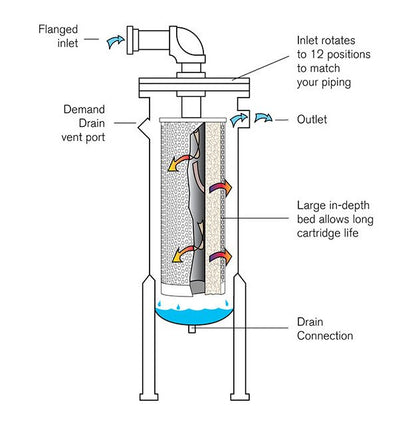

Compressed air enters the rotatable flanged inlet assembly engineered for easy element access. Designed for optimum velocity, the air is directed through a loosely packed bed of highly engineered, water resistant glass fibers. Water droplets, oil aerosols and solid particles entrained in the air stream are captured by the fibers through the mechanics of direct interception, inertial impaction, and diffusion that result from the forces of Brownian motion. The captured liquids and aerosols move along the fibers and coalesce into larger droplets. Gravity draws the coalesced liquids to the bottom of the filter element where they drop into a quiet zone in the bottom of the vessel for removal.
Features Superior Drainage
Condensate drainage can be accomplished automatically by installing an optional drain valve. Timer operated drains or energy efficient demand style drain valves (optional) can be adapted to the drain connection. Demand style drain valves benefit from the demand drain vent connection port engineered into these vessels. This exclusive feature equalizes drain-to-vent pressures and simplifies vent piping installations. Equalized pressure ensures consistent drainage and prevents "air-lock" induced drain valve failures common in other designs.
Low Operating Costs
Low pressure drop: 0.5 to 1 psi (0.03 to 0.07 bar) - Typical coalescing filters operate at 3 to 6 psi (0.21 to 0.41 bar) requiring the air compressor to operate at higher operating pressures, increasing power requirements by 2.5% or moreWith a large in-depth bed, element life is much longer than conventional oil removal filtersVirtually maintenance free
Optional Features
Automatic condensate drains:Pneumatically operated demand drainsElectrically operated timer drainsDifferential pressure gauge with reed switch
Removes Submicronic Particles For Ultra Clean Air
100% of particles 3 microns and larger99.98% of particles 0.1 micron and larger0.5 ppm w/w maximum liquid content after filtration1000 ppm maximum inlet liquid loading
Specifications Element Life Guarantee
5 years
Specifications Equipment Warranty
5 years

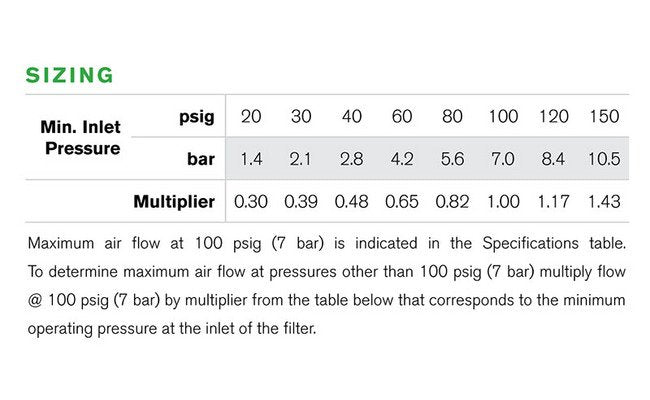

Specifications Flow Capacity At 100 Psig 7 Bar
500 scfm | 850 nm³/h
Specifications Height
52 in | 1320 mm
Specifications Industry Standardscertifications
ASME Approved
Specifications Inlet Connection Size
2 1/2 in
Specifications Inlet Connection Type
Flange
Specifications Long Element Life
8 to 15 years
Specifications Low Pressure Drop
0.5 to 1 psi | 0.03 to 0.07 bar
Specifications Maximum Operating Temperature
150 ºF | 66 ºC
Specifications Maximum Working Pressure
150 psig | 10.5 bar
Specifications Note For Connections
Consult factory for BSP or DN flanges.
Specifications Number Of Inlet Positions
12
Specifications Outlet Connection Size
2 1/2 in
Specifications Outlet Connection Type
Flange
Specifications Replacement Cartridge Number
MM3F
Specifications Series
M
Specifications Coalescing Filters Operating Pressure
3 to 6 psi | 0.21 to 0.41 bar
Specifications Weight
231 lb | 105 kg
Specifications Width
18 in | 457 mm
Standard Features
Differential pressure gauge mounted and pipedHeavy-duty ASME stamped pressure vesselLong life mist eliminator elementFloor standDedicated vent port for demand type drains
Superior Installation Flexibility
Twelve (12) inlet positions to better adapt to your piping arrangementInlet piping clears vessel diameter to prevent element removal complicationsFlanged inlet connection ensures easy access to elementDedicated vent connection port for clean, easy demand drain trap installations
