Hankison RHD 41"x4.2" Compressed Membrane Air Dryer
Hankison RHD 41"x4.2" Compressed Membrane Air Dryer
SKU:DES-7b4ba2
Experience superior air dehydration with the Hankison RHD 41"x4.2" Compressed Membrane Air Dryer from the innovative HMD and RHD Series.
Regular price
$549.99
Regular price
Sale price
$549.99
Unit price
per
Initiate Order
Hankison RHD 41"x4.2" Compressed Membrane Air Dryer
$549.99
Quantity: 1
Claim Your Seller Account
Hankison RHD 41"x4.2" Compressed Membrane Air Dryer
$549.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

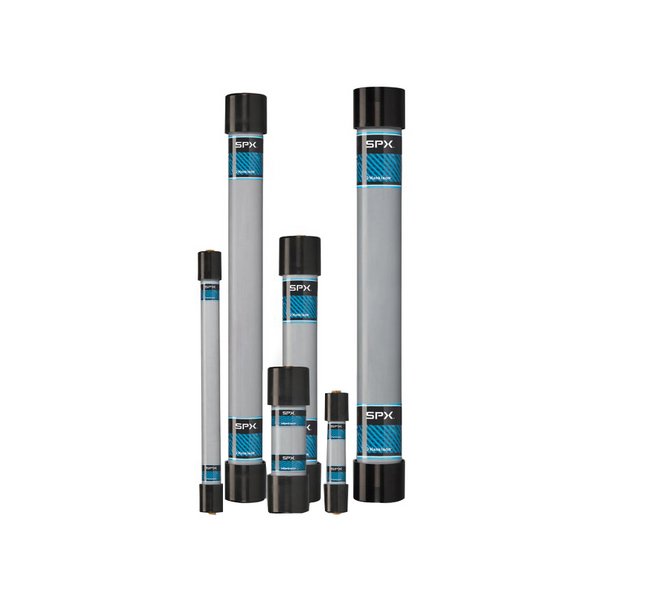

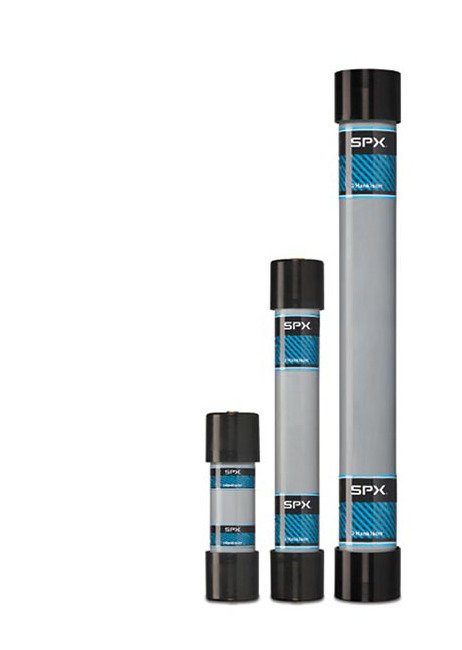

The Hankison RHD 41"x4.2" Compressed Membrane Air Dryer from the HMD and RHD Series offers cutting-edge membrane technology for efficient compressed air dehydration. With dimensions of 41" in length and 4.2" in width, this air dryer is designed for low flow and point-of-use applications, ensuring versatile, user-friendly, and environmentally sustainable performance. It features a durable construction, lightweight versatility, efficient operation, low maintenance requirements, and exceptional drying protection. Backed by a 3-year warranty, this air dryer delivers superior performance, reliability, and energy savings, making it an ideal solution for critical applications.
Product Specifications
Dedicated To Excellence
Since 1948, compressed air users around the world have relied on Hankison® to provide innovative compressed air treatment solutions for critical applications. Hankison® maintains a long standing reputation for manufacturing products that deliver superior performance, time proven reliability and optimal energy savings. Hankison® today is the preferred choice for providing clean, dry compressed air for the most challenging industries.Based in Charlotte, North Carolina, SPX® Corporation (NYSE: SPW) is a global, multi-industry manufacturing leader with approximately $ 5 billion in annual revenue, operations in more than 35 countries and over 14,000 employees. The company's highly-specialized, engineered products and technologies are concentrated in Flow Technology and energy infrastructure. Many of SPX®'s innovative solutions are playing a role in helping to meet rising global demand for electricity and processed foods and beverages, particularly in emerging markets. The company's products include food processing systems for the food and beverage industry, critical Flow components for oil and gas processing, power transformers for utility companies, and cooling systems for power plants.
Dimensions Length
41 in | 1041 mm
Dimensions Width
4.2 in | 106.7 mm
Drying Protection
Pressurized air is contained inside the membranes.Housing contains air at atmospheric pressure.No oil/water emulsions or chemicals to dispose of.
Durable Construction Maximum Inlet Operating Temperature
150 ºF | 66 ºC
Durable Construction Maximum Working Pressure
175 psig | 12.3 kg/cm²
Efficient
Low sweep air rates - more air available downstream.Choice of Prefilter packages:HF Series Grade 5 high efficiency oil removal filter for normal applications.HF Series Grade 7 air line filter and Grade 3 ultra high efficiency oil removal filter for critical applications.
How It Works

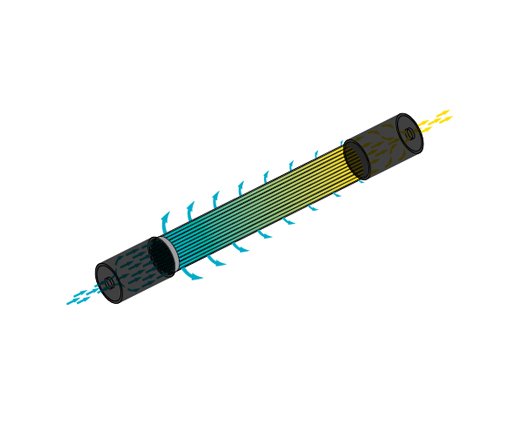

Compressed air, saturated with water vapor, flows through a bundle of tube-shaped hollow membrane fibers. A sweep orifice installed at the end of the bundle meters the amount of sweep air required to remove the water vapor from the dryer. Dry air then exits the tube bundle for use downstream. As long as the dried air isn't exposed to temperatures below the specified pressure dew point, no troublesome liquid water will form in the air system.
Low Maintenance
No power source required.No moving parts to maintain, repair or wear out.No consumables to replace.No liquid condensate to dispose of.
Specifications Dew Point Temperature
-40 to +50 ºF | -40 to +10 ºC
Specifications Inlet Connection Size
0.5 in | 12.7 mm
Specifications Outlet Connection Size
0.5 in | 12.7 mm
Specifications Series
Hankison® | HMD | RHD | SPX®
Specifications Weight
9.5 lb | 4.3 kg
Versatile
Lightweight - can be installed without additional support.Operates in both horizontal and vertical orientation.Convenient mounting systems available.High inlet and outlet flows.Dryers may be sized to produce dew point temperatures from -40 ºF (-40 ºC) or below to +50 ºF (+10 ºC).
Warranty
3 Year WarrantyStandard one year warranty is extended to three years when the dryer is installed with an optional prefilter package. To keep the warranty in effect, cartridges must be replaced at six month intervals and the drain mechanism yearly.Fitness GuaranteeIf during the first three months of operation, you are not satisfied with the suitability of the membrane dryer for your application, return the dryer for full credit. The credit can be applied to the purchase of any other Hankison® drying equipment.
