Name: Hardened Ground Machine Dowel Pin - Standard Series - Alloy Steel - 3/8 x 3 - Plain Finish
Brand: Compressed Air Systems, Inc.
SKU: IND-3965c7
Price: 14.99 USD
Availability: OutOfStock

Additional Information 0

1 Pressure lubrication Crankshaft and connecting rod bearings are pressure lubricated for extended life.2 Oil pressure gauge Mounted on the front of the compressor for an excellent view and easy pressure monitoring.3 Babbitt bearings Replaceable bearing makes repairs easy and inexpensive.4 Lubricant filtration An external spin on oil filter and an internal oil inlet screen protect internal components from damaging debris.5 Positive displacement oil pump Provides lubricant to all critical areas of the compressor pump that require lubrication.6 Loadless starting Hydraulic unloader with-factory set pilot valve provides easy, loadless starts and low oil pressure protection for unattended operation.

Applications 0

At Champion, air compressor systems are our only products. We know and understand the application of our products in many different operating environments. Our goal is to provide you with the compressors that fulfill - and exceed - your expectations and requirements.Because compressed air is an essential utility, dependability is an essential compressor quality. If your compressor goes down, it can hurt your reputation - and your bottom line. Champion reciprocating compressors are proven units, known for their reliability over decades of use. In addition to dependability, you want a compressor that is user-friendly. Champion comes through again, with a wide selection of configurations and options designed for trouble-free operation. You canât beat a Champion!

Features 0

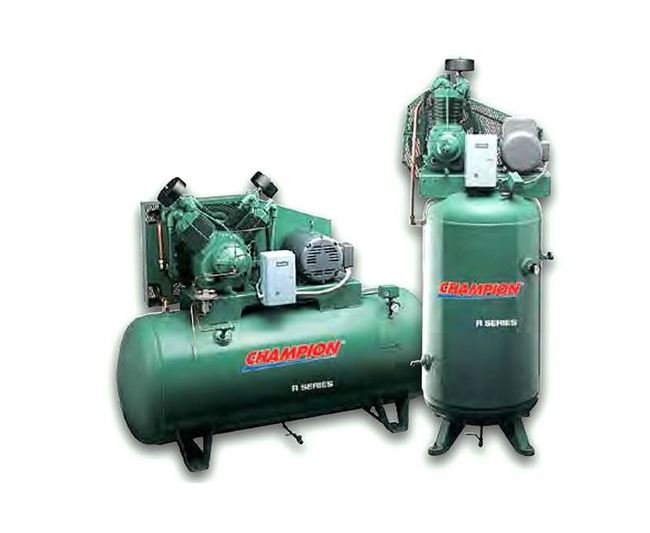

Proven Design. Todayâs Champion Reciprocating Compressors are the product of decades of design and development.Proven Dependability. You rely on compressed air to perform many tasks efficiently. Champion knows that reliability is one of the main reasons for a purchase. Our slow speed, built-in efficiency through design and the longest compressor warranty in the industry make Champion compressors the proven choice!High Performance. R- and PL-Series compressors are loaded with features designed for day-in, day-out performance. For example, Championâs unique automotive type domed piston design allows the use of large diameter, low lift valves, while minimizing clearance volume for maximum air delivery.Long Life. Features such as slow speed operation, rugged cast iron crankcase construction, corrosion resistant steel valves and tapered roller-type main bearings all contribute to long life.User-friendly Design. A wide selection of configurations and available options, coupled with serviceability features make it easy to operate and maintain a Champion compressor. Compare all the features on the pages that follow. Youâll discover why Champion is the value leader in reciprocating compressors for a broad range of automotive and industrial applications.

Financing Approve Payments

Finance with Approve Payments

General Description 0

At Champion, air compressor systems are our only products. We know and understand the application of our products in many different operating environments. Our goal is to provide you with the compressors that fulfill - and exceed - your expectations and requirements.Because compressed air is an essential utility, dependability is an essential compressor quality. If your compressor goes down, it can hurt your reputation - and your bottom line. Champion reciprocating compressors are proven units, known for their reliability over decades of use. In addition to dependability, you want a compressor that is user-friendly. Champion comes through again, with a wide selection of configurations and options designed for trouble-free operation. You canât beat a Champion!

Other Options 0

Power Monitor that shuts down unit in the event of single phasing, low voltage or phase reversal Constant Speed Control which prevents excessive motor start/stop cycles while saving energy Dual Control will allow the compressor to run either in start/stop or constant speed mode NEMA 4 rated parts available Alternate voltages and TEFC, ODPHE, TEFCHE Electric Motors

Quality Accessories 0

Many options are available to help you develop a Champion compressor package that exactly matches your specific operating requirements. Magnetic starter (included as standard on most models) For thermal overload protection, a starter is required for units 3 HP and up. May be mounted or unmounted. Air-cooled or water-cooled aftercooler The factory mounted, heavy duty, air-cooled aftercooler effectively reduces up to 65% of the moisture from discharged compressed air. Automatic tank drain Pneumatic drain operates from a centrifugal unloader. Vibration isolators Isolates the compressor unit from the foundation or floor. Reduces noise and protects the unit from any out-of-level floor situation that could cause vibration and damage. Low oil level monitor Low Oil Level Monitor shuts down the unit when oil levels are below an adequate level. Prevents the unit from restarting if oil levels are not at an adequate level. Refrigerated air dryer Cools compressed air to a 33 Âº â 39 Âº dew point, eliminating additional downstream condensation in the air line. Normally, a dryer should be used in conjunction with an aftercooler. Refrigerated and desiccant dryer types are available. DPR Control Panel The Microprocessed Duplex Relay Panel was created for controlling a duplex air compressor package. The controller includes visual maintenance and shut down alarms. Champion Compressor Lubricants ChampLub lubricants are blended specifically for Champion compressors for use in harsh compressor environments. They are sourced from extremely stable base stocks and enhanced with carefully selected additive packages to provide long life and superior protection. ChampLub lubricants are suitable for a variety of applications and are available as a mineral oil, synthetic or food-grade synthetic.Available in 55-gallon drums, five-gallon pails, one-gallon bottles and one-quart bottles.

Specifications Delivery At 125 Psi Rating

102.1 cfm

Specifications Delivery At 175 Psi Rating

90.1 cfm

Specifications Delivery At 250 Psi Rating

76.8 cfm

Specifications Displacement At 125 Psi Rating

127.8 cfm

Specifications Displacement At 175 Psi Rating

109.4 cfm

Specifications Displacement At 250 Psi Rating

93.7 cfm

Specifications Engine Type

Electric Driven

Specifications Height

71 1/2 in

Specifications Length

89 in

Specifications Note For Psi Rating

Pressure Lubricated units are capable of 250 PSIG operation; Units tested in accordance with CAGI/PNEUROP Acceptance Test Code PN2CPTC2.

Specifications Power

25 hp

Specifications Pump Model

PL-70A

Specifications Shipping Weight

1735 lb

Specifications Speed At 125 Psi Rating

890 rpm

Specifications Speed At 175 Psi Rating

770 rpm

Specifications Speed At 250 Psi Rating

660 rpm

Specifications Tank Capacity

240 gal

Specifications Width

30 1/4 in
